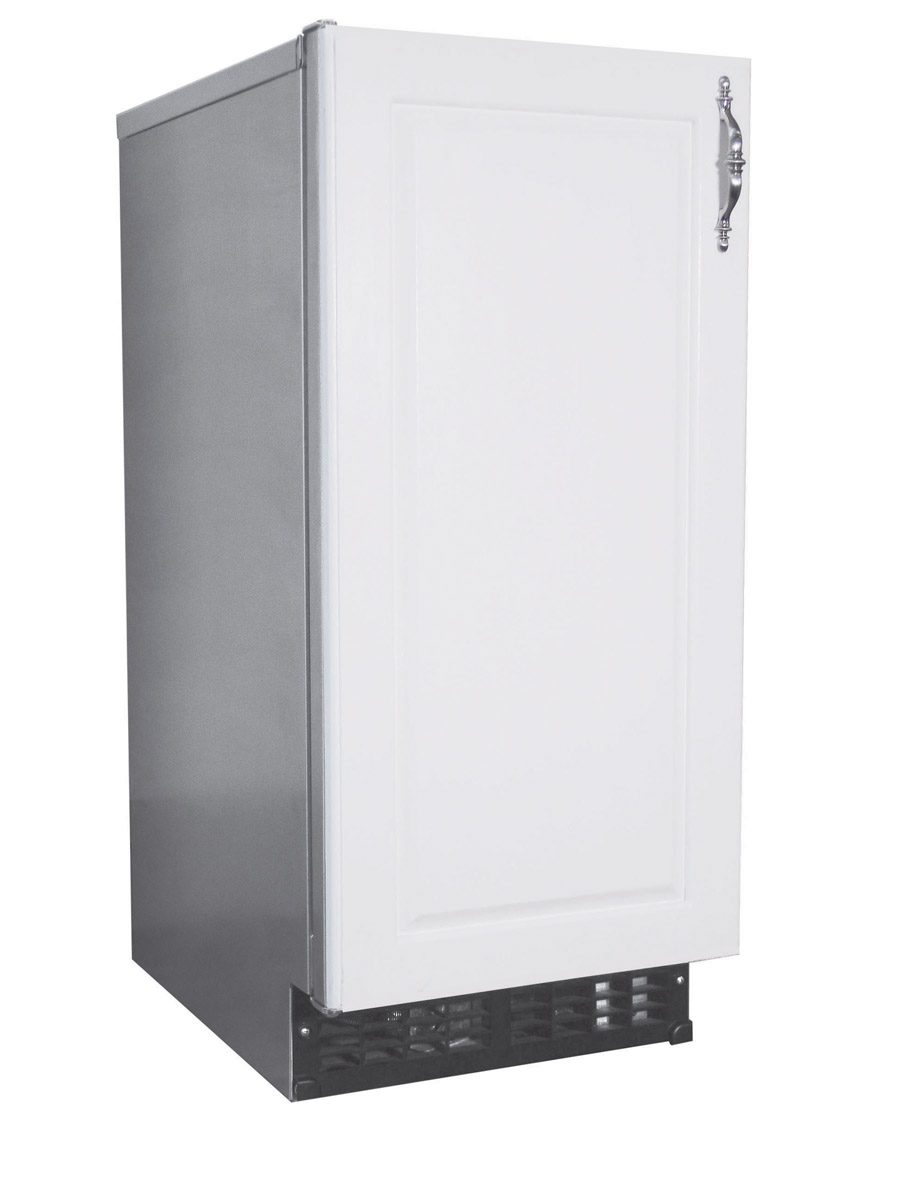

AM-50BAE-ADDS, Top Hat Cuber Icemaker, Air-cooled, ADA Comliant Height & Custom Cabinet Ready

REQUEST A QUOTE

Out of stock

REPLACED BY AM-50BAJ-ADDS

  • Dimensions: 14-7/8″ W x 22-5/8″ D x 31-1/2″ H
  • Up to 55 lbs of ice produced per 24 hours
  • Up to 22 lbs of built-in storage capacity
  • Produces top hat ice cubes
  • Undercounter design is less than 32″ Tall, ADA compliant
  • Front in, front out airflow
  • UL approved for outdoor use
  • Easily disassembled water circuit for easy cleaning
  • (-DS) Accommodates custom cabinet door (not included), DS door reversal kit (HS-0229)
  • R-134a refrigerant (4.2 oz. / 120 g)
  • Heat Rejection: BTU/hr
  • Ambient temperature range: 46 – 100°F
  • Water temperature range: 46 – 95°F
  • Water pressure: 7 – 113psig
  • Voltage range: 104 – 127V
  • 3.8 amps (15 Amp Max fuse)
  • 16.8 kwh/100 lbs.@ 90/70
  • Single phase, 115v/60/1 6 ft cord with NEMA 5-15 plug
  • Clean ice and easy maintenance lead to longer unit life span
  • Two Years: Parts & Labor warranty on entire machine.
  • One Year: Parts & Labor warranty on optional HS-5061 Drain Pump Assembly.
SKU: AM-50BAE-ADDS Categories: , , Tag:

Sales Literature

Price ListSales Catalog

Description

This compact undercounter Top Hat Icemaker is the perfect addition to any hotel suite, office breakroom, or high end kitchen. The AM-50BAE-ADDS is capable of producing approximately 55 lbs of Top Hat style ice cubes per day, and the built-in storage bin will hold up to 22 lbs* of ice at a time. The Air-cooled design also features a Front in, front out airflow system that eliminates the need for side and rear clearance. Perfect for fitting into tight spaces. Drain pump not included.

Additional information

Weight115 lbs
Dimensions14-7/8" W X 22-5/8" D X 31-1/2" H in
Height31-1/2" H
Width14-7/8" W
Depth22-5/8" D
Shipping Weight115 lbs
WarrantyValid in United States, Canada, Puerto Rico, & U.S. Territories. Contact factory for warranty in other countries.|Two Years: Parts & Labor warranty on entire machine.|One Year: Parts & Labor warranty on optional HS-5061 Drain Pump Assembly.|
Certifications:NSF, UL Listed, ADA Compliant
Energy Star® Qualified:No
Electrical Specs:Single phase, 115v/60/1 6 ft cord with NEMA 5-15 plug, Amperage: 3.8, Max Fuse/HACR Breaker: 15 A
Plumbing Specs:1/2" FPT Inlet, Minimum 1/4" Nominal ID Copper Water Tubing or Equivalent, 1/2" FPT Outlet, Minimum 1/2" Nominal ID Drain Hard Pipe or Equivalent
Utility Consumption:16.8 kWh per 100 lbs @ 90/70, 63.9 gal of Potable Water per 100 lbs @ 90/70
Operating Limits:Ambient Temp Range: 46 - 100°F, Water Temp Range: 46 - 95°F, Water Pressure: 7 - 113psig, Voltage Range: 104 - 127V, Heat Rejection: BTU/hr, Refrigerant Charge: R-134a, (4.2 oz. / 120 g)
