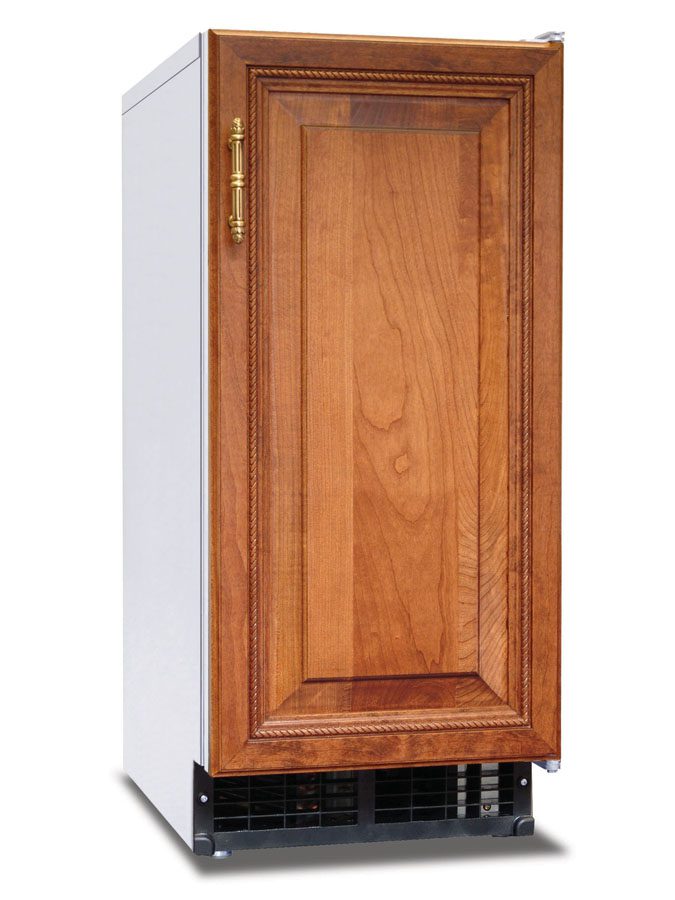

C-101BAH-DS, Cubelet Icemaker, Air-cooled, Custom Cabinet Ready

REQUEST A QUOTE

Out of stock

REPLACED BY C-80BAJ-DS

  • Dimensions: 14-7/8″ W x 22-5/8″ D x 33-1/2″ H
  • Up to 92 lbs of ice produced per 24 hours
  • Up to 22 lbs of built-in storage capacity (0.7ft3)
  • Produces mini cubelet nugget-style ice
  • Undercounter design is less than 32″ Tall, ADA Compliant
  • Front in, front out airflow
  • UL approved for outdoor use
  • Swing style field reversable door
  • (-DS) Accommodates custom cabinet door (not included), DS door reversal kit (HS-0229)
  • R-134a refrigerant (3.17 oz. / 90 g)
  • Heat Rejection: BTU/hr
  • Ambient temperature range: 45 – 100°F
  • Water temperature range: 45 – 90°F
  • Water pressure: 7 – 113psig
  • Voltage range: 104 – 127V
  • 4 amps (15 Amp Max fuse)
  • 12.1 kwh/100 lbs.@ 90/70
  • Single phase, 115v/60/1 6 ft cord with NEMA 5-15 plug
  • Clean ice and easy maintenance lead to longer unit life span
  • Two Years: Parts & Labor warranty on entire machine.
  • One Year: Parts & Labor warranty on optional HS-5061 Drain Pump Assembly.

Out of stock

SKU: C-101BAH-DS Categories: , , , , Tag:

LIBRARY

Description

This compact undercounter Cubelet Icemaker is the perfect addition to any hotel suite, office breakroom, or high end kitchen. The C-101BAH-DS is capable of producing approximately 92 lbs of Cubelet nugget-style ice cubes per day, and the built-in storage bin will hold up to 22 lbs* of ice at a time. The Air-cooled design also features a Front in, front out airflow system that eliminates the need for side and rear clearance. Perfect for fitting into tight spaces. Drain pump not included. *Rated in accordance with AHRI Standard 820(I-P). Capacity based on 100% of total volume x 30 lb/ft3 average density of ice.

Additional information

Weight 120 lbs
Dimensions 14-7/8" W X 22-5/8" D X 33-1/2" H in
Height 33-1/2" H
Width 14-7/8" W
Depth 22-5/8" D
Shipping Weight 120 lbs
Warranty Valid in United States, Canada, Puerto Rico, & U.S. Territories. Contact factory for warranty in other countries.|Two Years: Parts & Labor warranty on entire machine.|One Year: Parts & Labor warranty on optional HS-5061 Drain Pump Assembly.|
Certifications: UL Listed, ISO 9001:14001, ETL Sanitation Listed, ADA Compliant
Energy Star® Qualified: No
Electrical Specs: Single phase, 115v/60/1 6 ft cord with NEMA 5-15 plug, Amperage: 4, Max Fuse/HACR Breaker: 15 A
Plumbing Specs: 1/2" FPT Inlet, Minimum 1/4" Nominal ID Copper Water Tubing or Equivalent, 1/2" FPT Outlet, Minimum 1/2" Nominal ID Drain Hard Pipe or Equivalent
Utility Consumption: 12.1 kWh per 100 lbs @ 90/70, 12 gal of Potable Water per 100 lbs @ 90/70
Operating Limits: Ambient Temp Range: 45 - 100°F, Water Temp Range: 45 - 90°F, Water Pressure: 7 - 113psig, Voltage Range: 104 - 127V, Heat Rejection: BTU/hr, Refrigerant Charge: R-134a, (3.17 oz. / 90 g)
