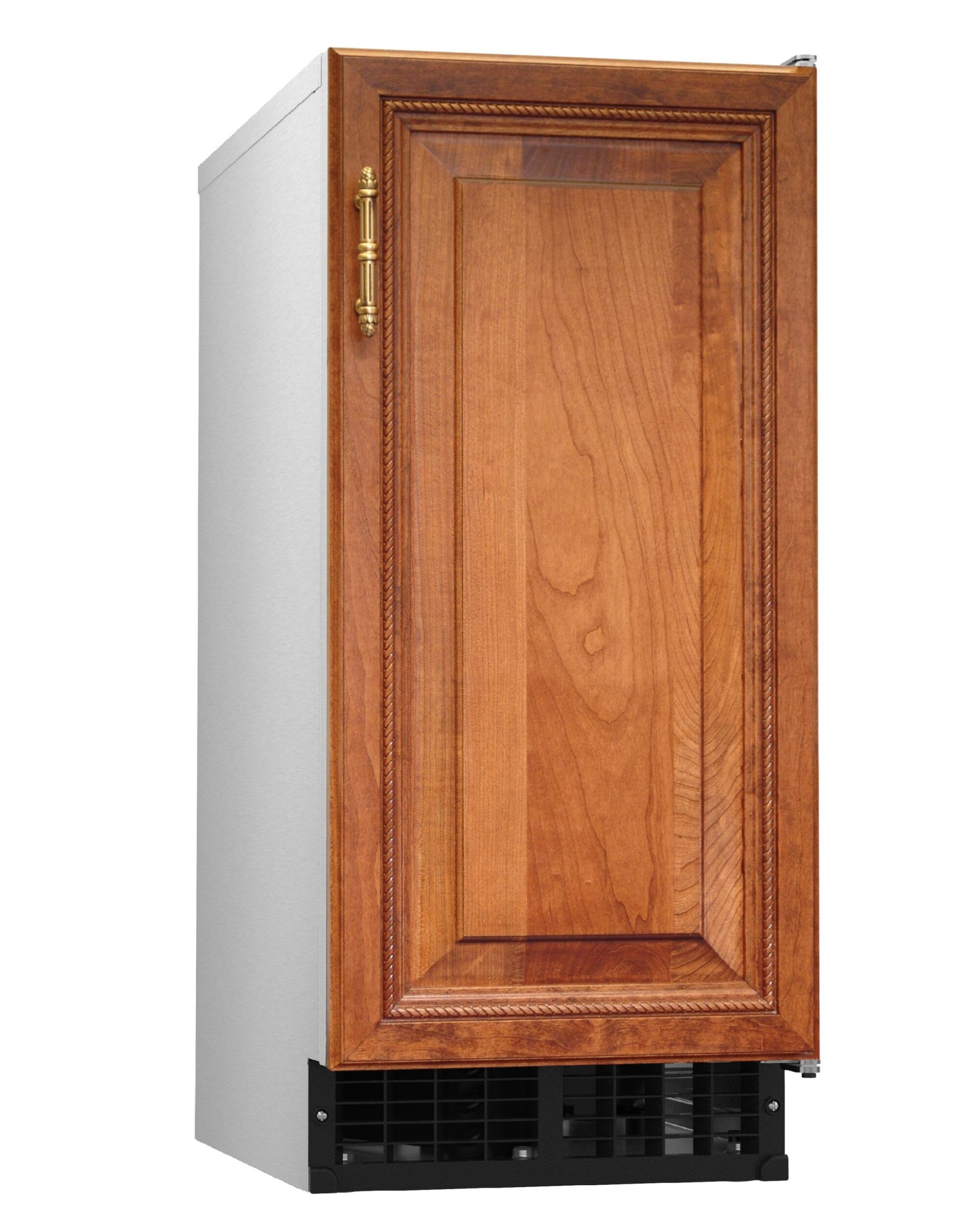

C-80BAJ-DS, Cubelet Icemaker, Air-cooled, Custom Cabinet Ready

REQUEST A QUOTE

  • Dimensions: 14-7/8″ W x 22-5/8″ D x 33-1/2″ H
  • Up to 80 lbs of ice produced per 24 hours
  • Up to 22 lbs of built-in storage capacity
  • Produces mini cubelet nugget-style ice
  • Undercounter design is less than 34″ tall
  • Front in and front out airflow
  • UL approved for outdoor use
  • Swing style field reversable door
  • (-DS) Accommodates custom cabinet door (not included), DS door reversal kit (HS-0229)
  • R-134a refrigerant (3.92 oz. / 111 g)
  • Heat Rejection:1850 BTU/hr
  • Ambient temperature range: 45 – 100°F
  • Water temperature range: 45 – 90°F
  • Water pressure: 7 – 113psig
  • Voltage range: 104 – 127V
  • 4 amps (15 Amp Max fuse)
  • 17.3 kwh/100 lbs.@ 90/70
  • Single phase, 115v/60/1, 6 ft cord with NEMA 5-15 plug
  • Clean ice and easy maintenance lead to longer unit life span
  • Two Years: Parts & Labor warranty on entire machine.
  • One Year: Parts & Labor warranty on optional HS-5061 Drain Pump Assembly.
SKU: C-80BAJ-DS Categories: , , , , Tag:

LIBRARY

Description

This compact undercounter Cubelet Icemaker is the perfect addition to any hotel suite, office breakroom, or kitchen. The C-80BAJ-DS is capable of producing approximately 80 lbs of Cubelet style ice cubes per day, and the built-in storage bin will hold up to 22 lbs* of ice at a time. The Undercounter design is less than 34″ tall. The Air-cooled design also features a Front in and front out airflow system that eliminates the need for side and rear clearance. Perfect for fitting into tight spaces. UL approved for outdoor use. Drain pump not included. Replaces C-101BAH-DS.

Additional information

Weight 130 lbs
Dimensions 14-7/8" W X 22-5/8" D X 33-1/2" H in
Height 33-1/2" H
Width 14-7/8" W
Depth 22-5/8" D
Shipping Weight 130 lbs
Warranty Valid in United States, Canada, Puerto Rico, & U.S. Territories. Contact factory for warranty in other countries.|Two Years: Parts & Labor warranty on entire machine.|One Year: Parts & Labor warranty on optional HS-5061 Drain Pump Assembly.|
Certifications: NSF, UL Listed for Outdoor Use, ISO 9001:14001, ETL Sanitation Listed
Energy Star® Qualified: No
Electrical Specs: Single phase, 115v/60/1, 6 ft cord with NEMA 5-15 plug, Amperage: 4, Max Fuse/HACR Breaker: 15 A
Plumbing Specs: 1/2" FPT Inlet, Minimum 1/4" Nominal ID Copper Water Tubing or Equivalent, 1/2" FPT Outlet, Minimum 1/2" Nominal ID Drain Hard Pipe or Equivalent
Utility Consumption: 17.3 kWh per 100 lbs @ 90/70, 12 gal of Potable Water per 100 lbs @ 90/70
Operating Limits: Ambient Temp Range: 45 - 100°F, Water Temp Range: 45 - 90°F, Water Pressure: 7 - 113psig, Voltage Range: 104 - 127V, Heat Rejection: 1850 BTU/hr, Refrigerant Charge: R-134a, (3.92 oz. / 111 g)
