  • CRF3S-HS

ADD TO COMPARE

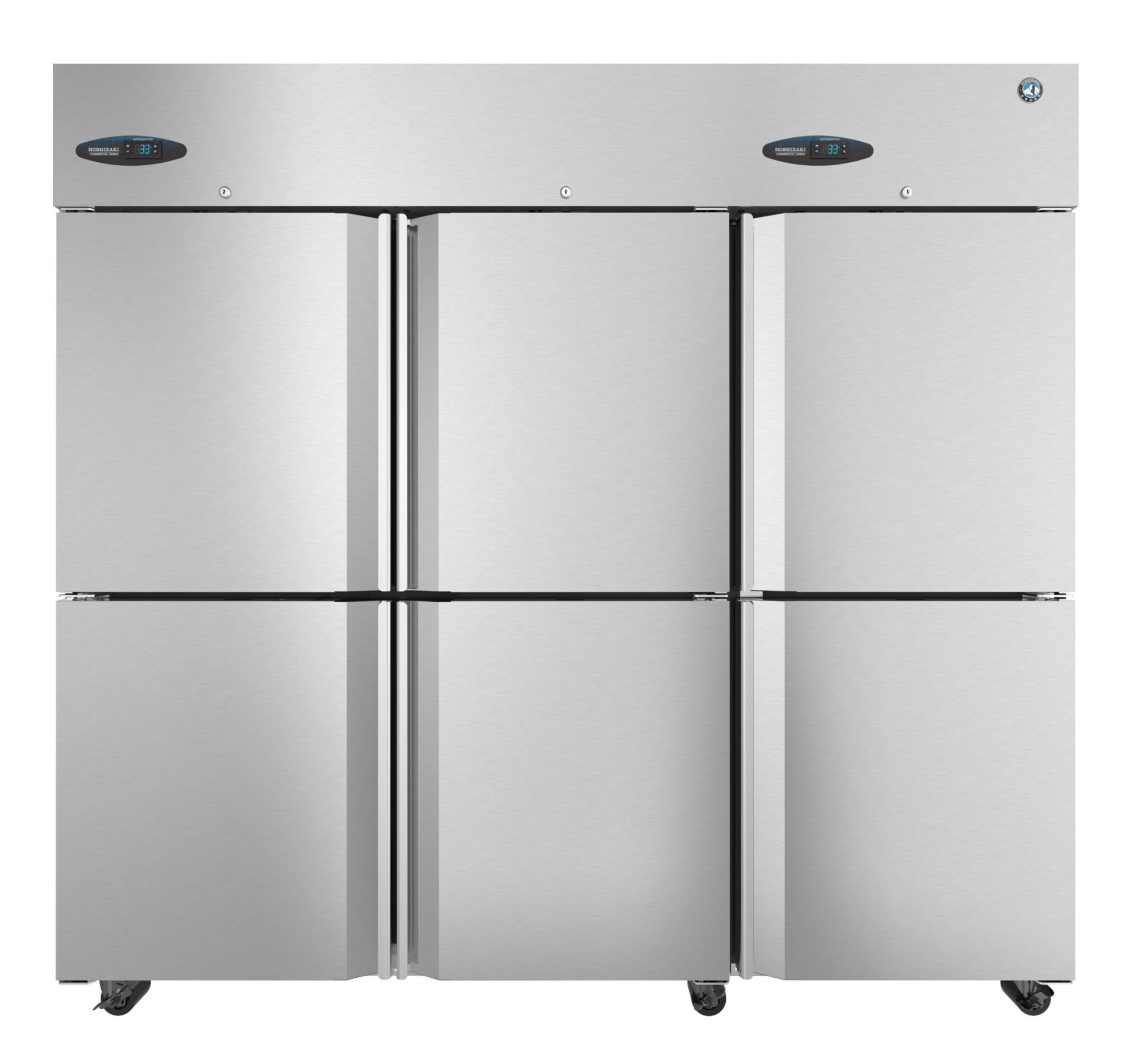

CF3S-HS, Freezer, Three Section Upright, Half Stainless Door

  • Dimensions: 83″ W x 33.75″ D x 79.75″ H
  • Net capacity of 67.8 cubic feet
  • Nominal Compres. of 3000 BTU/hr at 5/8 HP(left), 2466 BTU/hr at 1/2 HP (right)
  • Electrical consumption of 21.23 kWh/day, at 12 Amps on a L14-20P NEMA Plug
  • Exclusive stepped door design to protect recessed magnetic door gasket
  • Spring assisted self closing lockable doors with stay open feature (field reversible with optional kit)
  • One piece, full length, extruded aluminum flush mount door handle
  • Unique “ducted” air distribution system
  • Half Stainless Doors come standard with locks
  • Insulated with 2 3/8″ CFC free, foamed in place polyurethane
  • Stainless steel interior with stainless steel exterior front and sides
  • Solid state control system with temperature alarms and LED display (°F or °C)
  • R-404a refrigerant
  • Refrigerant flow is controlled with a thermostatic expansion valve (TXV)
  • Epoxy electrocoated (E-Coat) evaporator coil to help fight corrosion
  • Includes 9 epoxy coated wire shelves
  • Stainless steel supports adjustable in 1″ increments
  • Factory installed (6) 4″ Stem Casters (3 with brakes)
  • Optional kits: Additional epoxy or stainless steel shelves, universal tray/pan slides, foot pedal door opener, door reversal kit, air filter
  • 230/115v/60/1, 8 ft. cord and plug
  • Shipping Crate: 87 “W x 36.5 “D x 83 “H at 895 lbs
  • Energy efficient non-electric evaporation system
  • Five Years compressor warranty, Three Years parts and labor warranty

LIBRARY

DESCRIPTION

The CF3S-HS Commercial Series Upright Three Section Freezer with a Half Stainless Door and One piece, full length, extruded aluminum flush mount door handle is an attractive workhorse for any business. Durable 1/4 HP and 1/5 HP motors power the compressors in the top of this unit providing the cabinet with a continuous stream of cold air through its unique ‘ducted’ air distribution system, which ensures a steady constant temperature.
The durable Stainless steel interior with stainless steel exterior front and sides resists the random damage normal in a commercial kitchen or business. Plus, it is easy to clean. The CF3S-HS Includes 9 epoxy coated wire shelves, and comes with Factory installed (6) 4″ Stem Casters (3 with brakes), it features Spring assisted self closing lockable doors with stay open feature (field reversible with optional kit). Optional kits: Additional epoxy or stainless steel shelves, universal tray/pan slides, foot pedal door opener, door reversal kit, air filter. The unit is ISO 9001:14001, ETL Sanitation Listed, cETLus Listed, Manufactured in the USA and includes a Five Years compressor warranty / Three Years parts and labor warranty.

SPECIFICATIONS

Weight 895 lbs lbs
Dimensions 33.75" D x 83" W x 79.75" H in
Height

79.75″ H

Width

83″ W

Depth

33.75″ D

Shipping Weight

895 lbs

Certifications:

ISO 9001:14001, ETL Sanitation Listed, cETLus Listed, Manufactured in the USA

Energy Star® Qualified:

No

Electrical Specs:

Electrical Connection: L14-20P NEMA, 230/115v/60/1, 8 ft. cord and plug, Energy Consumption: 21.23 kwh/day, Amperage: 12, Max Fuse/HACR Breaker: 20 A

Storage Specs:

Nominal Storage Capacity: 73.3ft3, Interior Storage Capacity: 67.8ft3, Door Opening: 22″ W x 27.75″ H , Depth with Door fully extended: 59.25″ D, Shelves Included: 9

Refrigeration Data:

Nominal Compres. of 3000 BTU/hr at 5/8 HP(left), 2466 BTU/hr at 1/2 HP (right), Heat Rejection: 2148 BTU/hr

Operating Limits:

Ambient Temp Range: 45 – 100°F, Voltage Range: 104-126V/208 – 254V, Control Setpoint Range: -10 – +12°F, Refrigerant: R-404a
