  • CPT46-D

ADD TO COMPARE

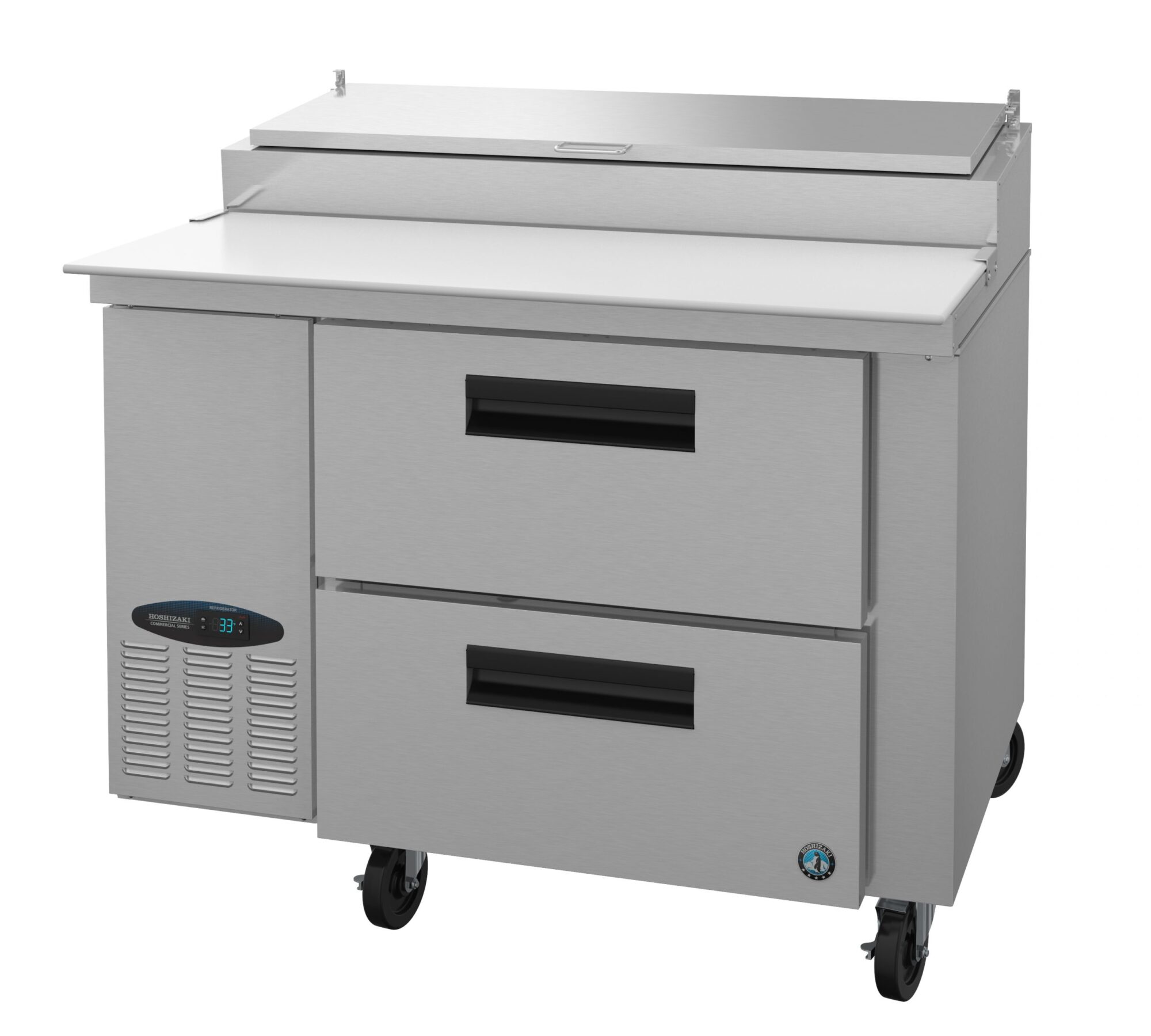

CPT46-D, Refrigerator, Single Section Pizza Prep Table with Drawers

  • Dimensions: 46″ W x 32.25″ D x 43.5″ H
  • Net capacity of 11 cubic feet
  • Nominal Compres. of 1386 BTU/hr at 1/5 HP
  • Electrical consumption of 4.3 kWh/day, at 3.7 Amps on a 5 – 15P NEMA Plug
  • Drawer slides are constructed of 16 gauge stainless steel with acetal rollers
  • Each drawer accommodates: (2) 12″ x 20″ x 6″ deep pan (pans by others)
  • Extruded aluminum flush mount drawer handle
  • Magnetic drawer gasket is easily removable for cleaning
  • Stainless steel exterior drawer with stainless steel interior
  • Rail utilizes a unique ducted air distribution system to distribute air evenly and maintain product temperature
  • Stainless steel interior with stainless steel exterior front, sides, and top
  • Maintains food safe temperatures in 100°F ambient conditions
  • R-134a refrigerant
  • Provided with a full complement of plastic 1/3rd size pans, 4″ deep and adapter bars
  • Evaporator coils are epoxy electrocoated (E-Coat) to help fight corrosion
  • Includes 2 stainless steel drawers with 250 lbs dynamic load rating and 6 polycarbonate plastic 1/3rd size, 4″ deep pans
  • Drawer frames are formed of 14 gauge stainless steel and securely fastened in the cabinet
  • Standard with (4) 6″ Stem Casters (2 with brakes)
  • 46″ x 19″ x 1/2″ thick white polyethylene cutting board is standard
  • 115v/60/1, 8 ft. cord and plug
  • Shipping Crate: 47.75 “W x 33.75 “D x 44.25 “H at 337 lbs
  • Energy efficient non-electric evaporation system
  • Five Years compressor warranty, Three Years parts and labor warranty

LIBRARY

DESCRIPTION

The CPT46-D Commercial Series Pizza Prep Table Refrigerator is an attractive Prep Table for any business. The dependable 1/5 HP compressor motor Maintains food safe temperatures in 100°F ambient conditions.
The CPT46-D frame is composed of stainless steel, a material that resists the random damage normal in a commercial kitchen or business. Plus, it is easy to clean. The CPT46-D also Includes 2 stainless steel drawers with 250 lbs dynamic load rating and 6 polycarbonate plastic 1/3rd size, 4″ deep pans, unit comes Standard with (4) 6″ Stem Casters (2 with brakes), and Each drawer accommodates: (2) 12″ x 20″ x 6″ deep pan (pans by others). A 46″ x 19″ x 1/2″ thick white polyethylene cutting board is standard. The unit is ISO 9001:14001, ETL Sanitation Listed, cETLus Listed, Manufactured in the USA and includes a Five Years compressor warranty / Three Years parts and labor warranty.

SPECIFICATIONS

Weight 337 lbs lbs
Dimensions 32.25" D x 46" W x 43.5" H in
Height

43.5″ H

Width

46″ W

Depth

32.25″ D

Shipping Weight

337 lbs

Certifications:

ISO 9001:14001, ETL Sanitation Listed, cETLus Listed, Manufactured in the USA

Energy Star® Qualified:

No

Electrical Specs:

Electrical Connection: 5 – 15P NEMA, 115v/60/1, 8 ft. cord and plug, Energy Consumption: 4.3 kwh/day, Amperage: 3.7, Max Fuse/HACR Breaker: 15 A

Storage Specs:

Nominal Storage Capacity: 11ft3, Interior Storage Capacity: 11ft3, Drawer Opening: 22.5″ W x 23″ H , Depth with Drawer fully extended: 57.5″ D, Drawers Included: 2

Refrigeration Data:

Nominal Compres. of 1386 BTU/hr at 1/5 HP, Heat Rejection: 605 BTU/hr

Operating Limits:

Ambient Temp Range: 45 – 100°F, Voltage Range: 104 – 126V, Control Setpoint Range: 14 – 45°F, Refrigerant: R-134a
