2017 Catalog & Price Guide

2017-CatalogPriceGuide-2017.pdf
  • CPT67-D4

ADD TO COMPARE

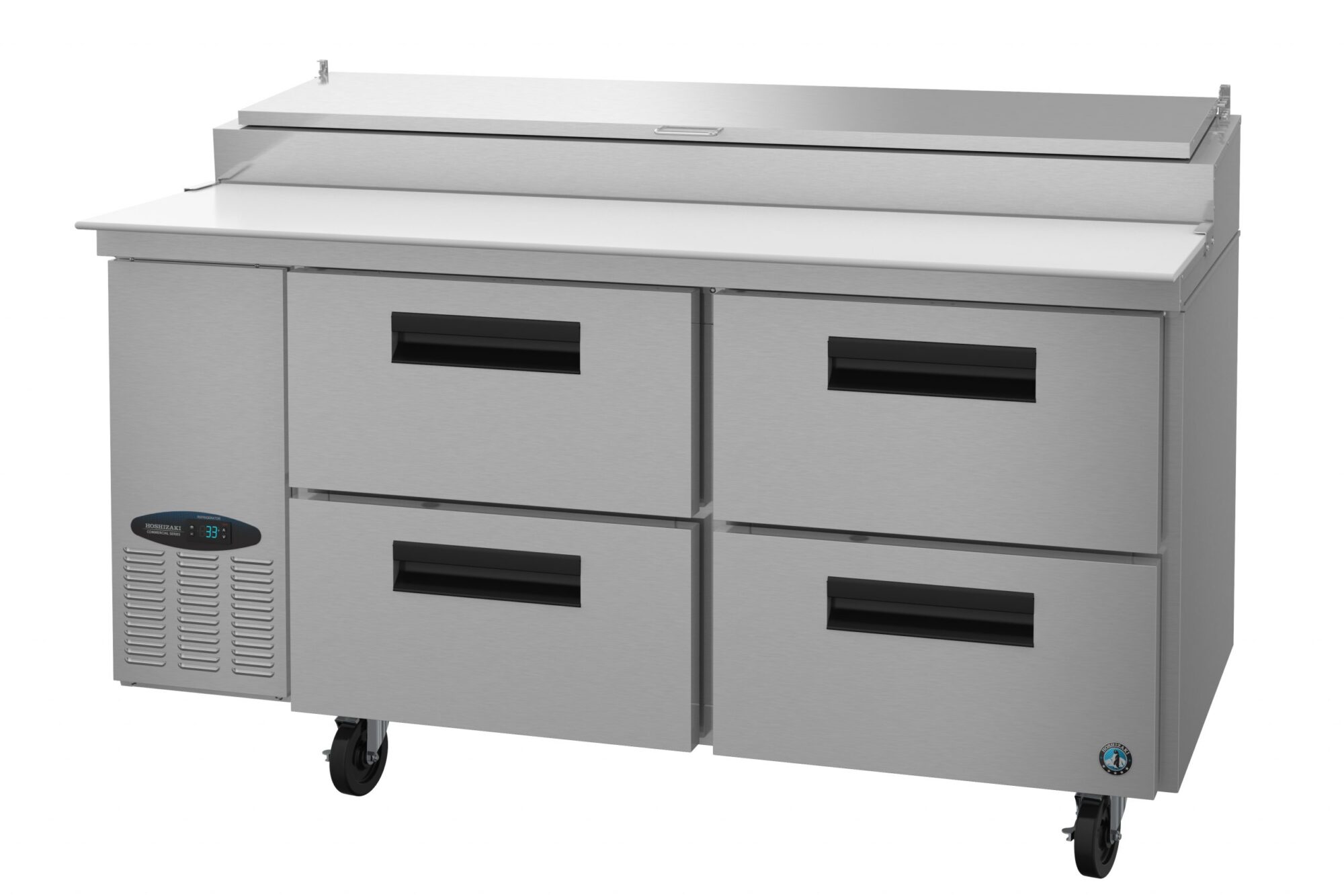

CPT67-D4, Refrigerator, Two Section Pizza Prep Table with Drawers

  • Dimensions: 67″ W x 32.25″ D x 43.5″ H
  • Net capacity of 19.9 cubic feet
  • Nominal Compres. of 2607 BTU/hr at 1/3 HP
  • Electrical consumption of 6 kWh/day, at 5.5 Amps on a 5 – 15P NEMA Plug
  • Drawer slides are constructed of 16 gauge stainless steel with acetal rollers
  • Each drawer accommodates: (2) 12″ x 20″ x 6″ deep pan (pans by others)
  • Extruded aluminum flush mount drawer handle
  • Magnetic drawer gasket is easily removable for cleaning
  • Stainless steel exterior drawer with stainless steel interior
  • Adjustable ducted air distribution system to suit any kitchen
  • Stainless steel interior with stainless steel exterior front, sides, and top
  • Maintains food safe temperatures in 100°F ambient conditions
  • R-134a refrigerant
  • Provided with a full complement of plastic 1/3rd size pans, 4″ deep and adapter bars
  • Enamel coated evaporator coil for extended life
  • Includes 4 stainless steel drawers with 250 lbs dynamic load rating and 9 polycarbonate plastic 1/3rd size, 4″ deep pans
  • Drawer frames are formed of 14 gauge stainless steel and securely fastened in the cabinet
  • Standard with (4) 6″ Stem Casters (2 with brakes)
  • 67″ x 19″ x 1/2″ thick white polyethylene cutting board is standard
  • 115v/60/1, 8 ft. cord and plug
  • Shipping Crate: 69 “W x 33.75 “D x 44.25 “H at 512 lbs
  • Energy efficient non-electric evaporation system
  • Five Years compressor warranty, Three Years parts and labor warranty

LIBRARY

DESCRIPTION

The CPT67-D4 Commercial Series Pizza Prep Table Refrigerator with Stainless Drawers. Maintains food safe temperatures in 100°F ambient conditions and with a Net capacity of 19.9 cubic feet this front breathing Prep Table Refrigerator is the right choice for hot kitchens. It features an Adjustable ducted air distribution system to suit any kitchen.
The CPT67-D4 is constructed of stainless steel, which protects this unit from minor damage and rust. Plus, it is easy to clean. The CPT67-D4 Includes 4 stainless steel drawers with 250 lbs dynamic load rating and 9 polycarbonate plastic 1/3rd size, 4″ deep pans. Each drawer accommodates: (2) 12″ x 20″ x 6″ deep pan (pans by others). A 67″ x 19″ x 1/2″ thick white polyethylene cutting board is standard. The unit is ISO 9001:14001, ETL Sanitation Listed, cETLus Listed and includes a Five Years compressor warranty / Three Years parts and labor warranty.

SPECIFICATIONS

Weight 512 lbs lbs
Dimensions 32.25" D x 67" W x 43.5" H in
Height

43.5″ H

Width

67″ W

Depth

32.25″ D

Shipping Weight

512 lbs

Certifications:

ISO 9001:14001, ETL Sanitation Listed, cETLus Listed

Energy Star® Qualified:

No

Electrical Specs:

Electrical Connection: 5 – 15P NEMA, 115v/60/1, 8 ft. cord and plug, Energy Consumption: 6 kwh/day, Amperage: 5.5, Max Fuse/HACR Breaker: 15 A

Storage Specs:

Nominal Storage Capacity: 19.9ft3, Interior Storage Capacity: 19.9ft3, Drawer Opening: 22.5″ W x 23″ H , Depth with Drawer fully extended: 57.5″ D, Drawers Included: 4

Refrigeration Data:

Nominal Compres. of 2607 BTU/hr at 1/3 HP, Heat Rejection: 848 BTU/hr

Operating Limits:

Ambient Temp Range: 45 – 100°F, Voltage Range: 104 – 126V, Control Setpoint Range: 14 – 45°F, Refrigerant: R-134a
