  • CPT93

ADD TO COMPARE

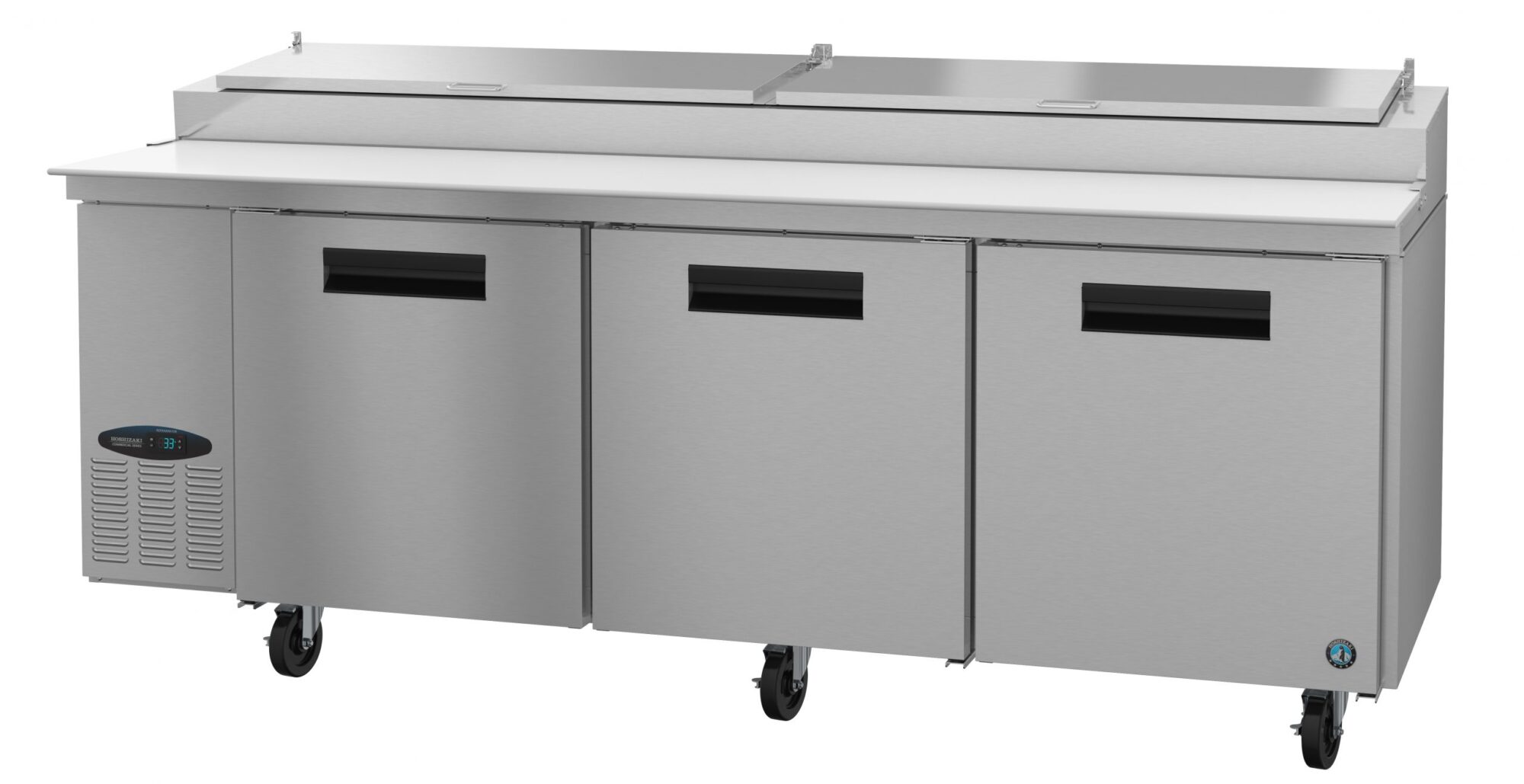

CPT93, Refrigerator, Pizza Prep Table, Stainless Door, Three Section

  • Dimensions: 93″ W x 32.25″ D x 43.5″ H
  • Net capacity of 30.1 cubic feet
  • Nominal Compres. of 2607 BTU/hr at 1/3 HP
  • Electrical consumption of 5 kWh/day, at 5.5 Amps on a 5 – 15P NEMA Plug
  • Exclusive “stepped” door design to protect recessed door gasket
  • Spring assisted self closing door, with stay open feature (field reversible without kit)
  • Extruded aluminum flush mount door handle
  • Front breathing air flow design
  • Stainless steel exterior door with ABS interior liner
  • Rail utilizes a unique ducted air distribution system to distribute air evenly and maintain product temperature
  • Stainless steel interior with stainless steel exterior front, sides, and top
  • Maintains food safe temperatures in 100°F ambient conditions
  • R-134a refrigerant
  • Provided with a full complement of plastic 1/3rd size pans, 4″ deep and adapter bars
  • Enamel coated evaporator coil for extended life
  • Includes 3 epoxy coated shelves
  • Epoxy coated wire shelves adjustable in 1/2″ increments on anodized aluminum supports
  • Standard with (6) 6″ Stem Casters (2 with brakes)
  • 93″ x 19″ x 1/2″ thick white polyethylene cutting board is standard
  • 115v/60/1, 8 ft. cord and plug
  • Shipping Crate: 95 “W x 34 “D x 44.25 “H at 509 lbs
  • Energy efficient non-electric evaporation system
  • Five Years compressor warranty, Three Years parts and labor warranty

LIBRARY

DESCRIPTION

The CPT93 Commercial Series Pizza Prep Table Refrigerator is an attractive Prep Table for any business. The dependable 1/3 HP compressor motor Maintains food safe temperatures in 100°F ambient conditions.
The CPT93 frame is composed of stainless steel, a material that resists the random damage normal in a commercial kitchen or business. Plus, it is easy to clean. The CPT93 also Includes 3 epoxy coated shelves, unit comes Standard with (6) 6″ Stem Casters (2 with brakes), and Spring assisted self closing door, with stay open feature (field reversible without kit). A 93″ x 19″ x 1/2″ thick white polyethylene cutting board is standard. The unit is ISO 9001:14001, ETL Sanitation Listed, cETLus Listed, Manufactured in the USA and includes a Five Years compressor warranty / Three Years parts and labor warranty.

SPECIFICATIONS

Weight 509 lbs lbs
Dimensions 32.25" D x 93" W x 43.5" H in
Height

43.5″ H

Width

93″ W

Depth

32.25″ D

Shipping Weight

509 lbs

Certifications:

ISO 9001:14001, ETL Sanitation Listed, cETLus Listed, Manufactured in the USA

Energy Star® Qualified:

No

Electrical Specs:

Electrical Connection: 5 – 15P NEMA, 115v/60/1, 8 ft. cord and plug, Energy Consumption: 5 kwh/day, Amperage: 5.5, Max Fuse/HACR Breaker: 15 A

Storage Specs:

Nominal Storage Capacity: 30.1ft3, Interior Storage Capacity: 30.1ft3, Door Opening: 22.5″ W x 23″ H , Depth with Door fully extended: 57.75″ D, Shelves Included: 3

Refrigeration Data:

Nominal Compres. of 2607 BTU/hr at 1/3 HP, Heat Rejection: 706 BTU/hr

Operating Limits:

Ambient Temp Range: 45 – 100°F, Voltage Range: 106 – 126V, Control Setpoint Range: 14 – 45°F, Refrigerant: R-134a
