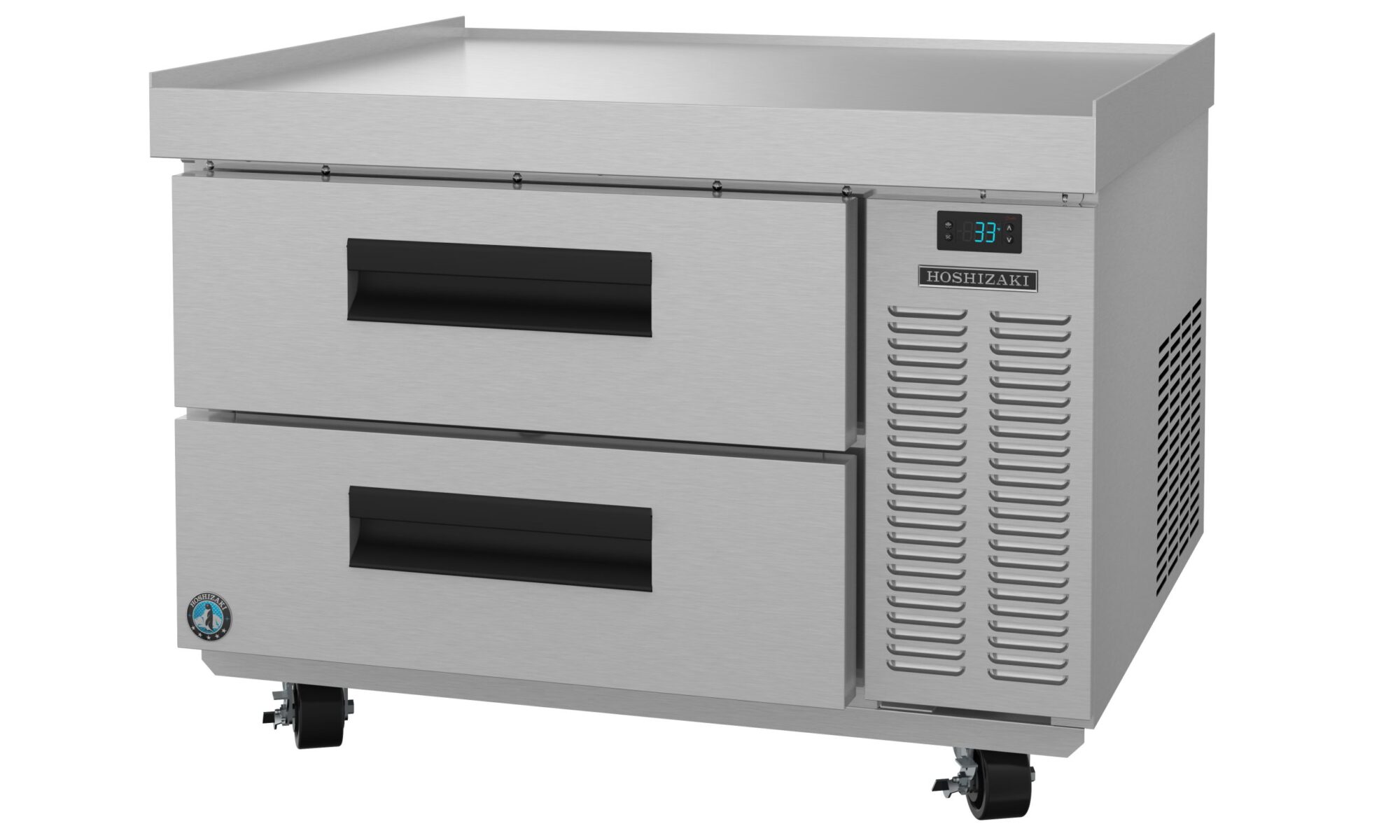

CR36A, Refrigerator, Single Section Chef Base Prep Table, Stainless Drawers


  • Dimensions: 36.5″ W x 32.25″ D x 26″ H
  • 26″ high work surface, supports up to 700 lbs. of equipment
  • Nominal Compres. of 1354 BTU/hr at 1/5 HP
  • Electrical consumption of 1.6 kWh/day, at 2.2 Amps on a 5 – 15P NEMA Plug
  • Drawer slides are constructed of 14 gauge stainless steel with acetal rollers
  • Each drawer accommodates: (1) 12″ x 20″ x 6″ deep pan & (1) 1/2 long, 6″ deep pan (pans by others)
  • Extruded aluminum flush mount drawer handle
  • Magnetic drawer gasket is easily removable for cleaning
  • Stainless steel exterior drawer with stainless steel interior
  • Insulated with 2″ CFC free, foamed in place polyurethane
  • Stainless steel exterior front, sides and top with stainless steel interior
  • Ceramic heat shield integral to 16 gauge stainless steel top protects food from high heat
  • R-290 refrigerant
  • Automatic time-initiated heated defrost
  • Enamel coated evaporator coil for extended life
  • Drawers are equipped with finger cut-outs for easy removal of pans
  • Drawer frames are formed of 16 gauge stainless steel and securely fastened in the cabinet
  • Standard with (4) 4″ HD Casters (All with brakes)
  • Optional kits: Drawer divider bars, Condenser filter
  • 115v/60/1, 10 ft. cord and plug
  • Shipping Crate: 34.5 “W x 38 “D x 30.5 “H at 260 lbs
  • Environmentally friendly R-290 hydrocarbon refrigerant
  • Five Years compressor warranty, Three Years parts and labor warranty



The CR36A Single Section Refrigerated Chef Base makes it easy to increase productivity by keeping your refrigerated ingredients and cooking equipment in one, convenient location. The Worktop 26″ high work surface, supports up to 700 lbs. of equipment and includes 2 stainless steel drawers. Each drawer accommodates (1) 12″ x 20″ x 6″ deep pan & (1) 1/2 long, 6″ deep pan (sold separately). The dependable 1/5 HP compressor motor distributes air evenly throughout the drawers and around the food product in the pans.
The CR36A cabinet is constructed of stainless steel, a material that resists the random damage normal in a commercial kitchen or business. Plus, it is easy to clean. The unit is ISO 9001:14001, ETL Sanitation Listed, cETLus Listed and includes a Five Years compressor warranty / Three Years parts and labor warranty.

Additional information

Weight 260 lbs
Dimensions 36.5" W X 32.25" D X 26" H in
Height 26" H
Width 36.5" W
Depth 32.25" D
Shipping Weight 260 lbs
Warranty Valid in United States, Canada, Puerto Rico, & U.S. Territories. Contact factory for warranty in other countries.|Three Years: Parts & Labor warranty on entire machine.|Five Years: Parts warranty on Compressor.|
Certifications: ISO 9001:14001, ETL Sanitation Listed, cETLus Listed
Energy Star® Qualified: No
Electrical Specs: Electrical Connection: 5 - 15P NEMA, 115v/60/1, 10 ft. cord and plug, Energy Consumption: 1.6 kwh/day, Amperage: 2.2, Max Fuse/HACR Breaker: 15 A
Plumbing Specs:
Utility Consumption:
Operating Limits: Ambient Temp Range: 45 - 100°F, Voltage Range: 104 - 126V, Control Setpoint Range: 32 - 52°F, Refrigerant: R-290
