- Dimensions: 72.5″ W x 33.25″ D x 26″ H
- Supports up to 1200 lbs. of equipment
- Nominal Compres. of 1386 BTU/hr at 1/5 HP
- Electrical consumption of 2.8 kWh/day, at 4.3 Amps on a 5 – 15P NEMA Plug
- Drawer slides are constructed of 14 gauge stainless steel with acetal rollers
- Each drawer accommodates: (2) 12″ x 20″ x 6″ deep pan (pans by others)
- Extruded aluminum flush mount drawer handle
- Magnetic drawer gasket is easily removable for cleaning
- Stainless steel exterior drawer with stainless steel interior
- Insulated with 2″ CFC free, foamed in place polyurethane
- Stainless steel exterior front, sides and top
- Anodized aluminum interior sides and back with stainless steel interior floor
- R-134a refrigerant
- Automatic defrost
- Enamel coated evaporator coil for extended life
- Drawers are equipped with finger cut-outs for easy removal of pans
- Drawer frames are formed of 14 gauge stainless steel and securely fastened in the cabinet
- Standard with (6) 4″ HD Casters (All with brakes)
- Optional kits: Drawer divider bars, Condenser Filter
- 115v/60/1, 8 ft. cord and plug
- Shipping Crate: 74 “W x 34.5 “D x 28.75 “H at 450 lbs
- Energy efficient automatic hot gas condensate evaporator
- Five Years compressor warranty, Three Years parts and labor warranty

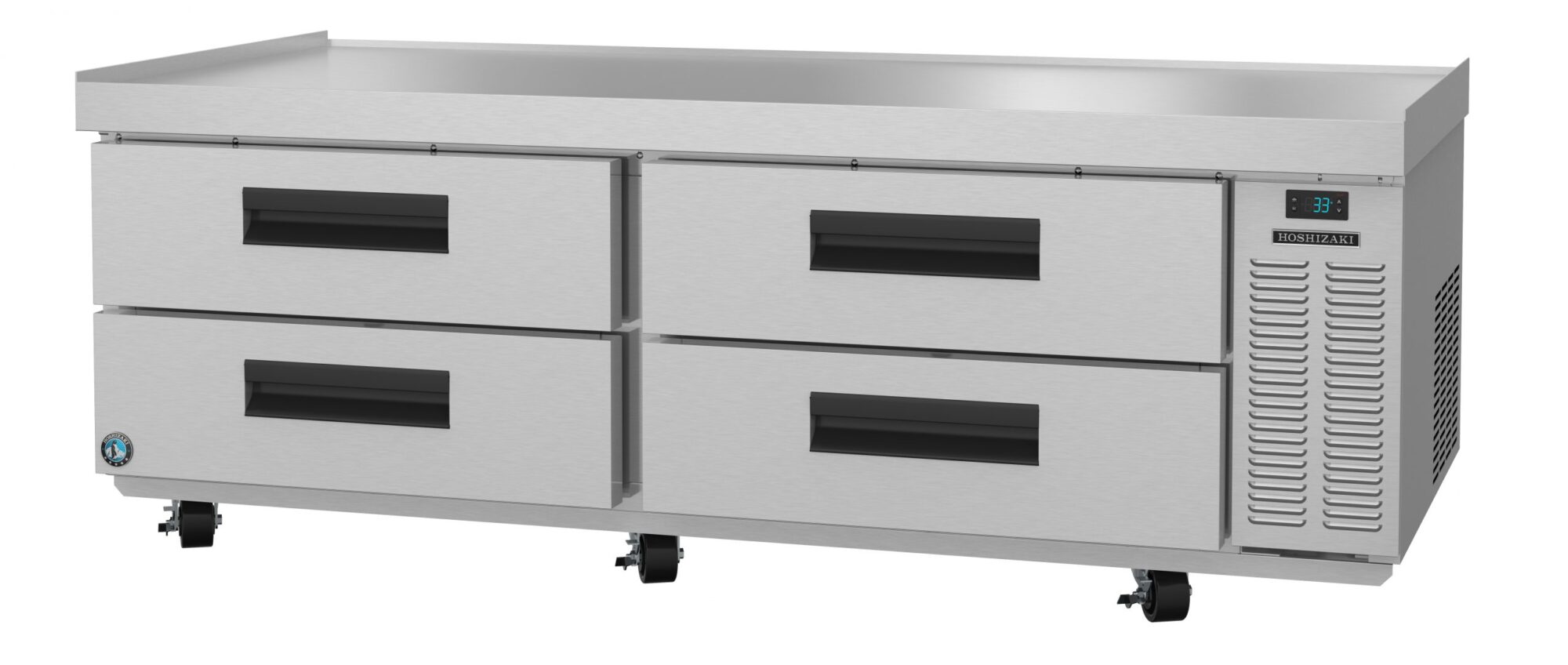

CRES72, Refrigerator, Two Section Equipment Stand with Drawers
LIBRARY
Service Literature
Specification Sheet Instruction Manual Parts Manual Service Manual CAD/Revit Files Warranty StatementDESCRIPTION
The CRES72 Commercial Series Low-Profile Refrigerated Equipment Stand makes it easy to increase productivity by keeping your refrigerated ingredients and cooking equipment in one, convenient location. The Worktop Supports up to 1200 lbs. of equipment and includes 4 stainless steel drawers. Each drawer accommodates (2) 12″ x 20″ x 6″ deep pan (sold separately). The dependable 1/5 HP compressor motor distributes air evenly throughout the drawers and around the food product in the pans.
The CRES72 frame is composed of stainless steel, a material that resists the random damage normal in a commercial kitchen or business. Plus, it is easy to clean. The unit is ISO 9001:14001, ETL Sanitation Listed, cETLus Listed and includes a Five Years compressor warranty / Three Years parts and labor warranty.
SPECIFICATIONS
| Weight | 450 lbs lbs |
|---|---|
| Dimensions | 33.25" D x 72.5" W x 26" H in |
| Height | 26″ H |
| Width | 72.5″ W |
| Depth | 33.25″ D |
| Shipping Weight | 450 lbs |
| Certifications: | ISO 9001:14001, ETL Sanitation Listed, cETLus Listed |
| Energy Star® Qualified: | No |
| Electrical Specs: | Electrical Connection: 5 – 15P NEMA, 115v/60/1, 8 ft. cord and plug, Energy Consumption: 2.8 kwh/day, Amperage: 4.3, Max Fuse/HACR Breaker: 15 A |
| Storage Specs: | Worktop Max. Capacity: 1200lbs, Nominal Storage Capacity: 17.26ft3, Interior Storage Capacity: 15.44ft3, Drawer Opening: 27.75″ W x ” H , Depth with Drawer fully extended: 55.75″ D, Drawers Included: |
| Refrigeration Data: | Nominal Compres. of 1386 BTU/hr at 1/5 HP, Heat Rejection: 398.1 BTU/hr |
| Operating Limits: | Ambient Temp Range: 45 – 100°F, Voltage Range: 104 – 126V, Control Setpoint Range: 28 – 45°F, Refrigerant: R-134a |
