  • CRMF27-D
  • CRMRF27-D-Open

ADD TO COMPARE

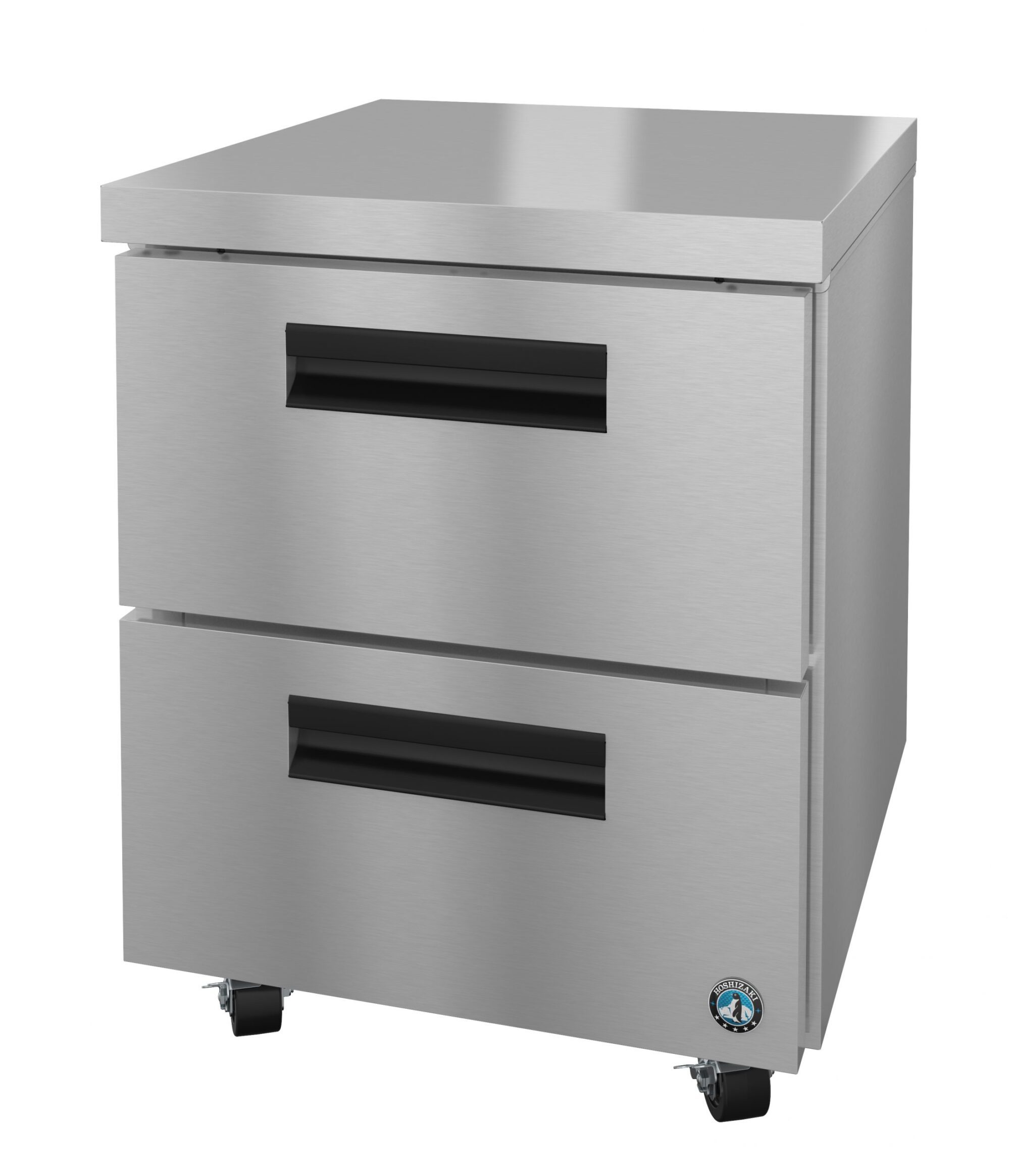

CRMF27-D, Freezer, Single Section Undercounter with Drawers

  • Dimensions: 27″ W x 30″ D x 33.63″ H
  • Net capacity of 6.22 cubic feet
  • Nominal Compres. of 841 BTU/hr at 1/5 HP
  • Electrical consumption of 2.66 kWh/day, at 3.4 Amps on a 5 – 15P NEMA Plug
  • Drawer slides are 16 gauge stainless steel with acetal rollers
  • Each drawer accommodates: (1) 12″ x 20″ x 6″ deep pan (pans by others)
  • Extruded aluminum flush mount door handle
  • Magnetic drawer gasket is easily removable for cleaning
  • Stainless steel exterior drawer with stainless steel interior
  • Insulated with 2″ CFC free, foamed in place polyurethane
  • Stainless steel exterior front, sides and top
  • Stainless steel interior sides, back, and floor
  • R-134a refrigerant
  • Automatic defrost
  • Enamel coated evaporator coil for extended life
  • Includes 2 stainless steel drawers with 175 lbs dynamic load rating
  • Drawer frames are formed of 14 gauge stainless steel and securely fastened in the cabinet
  • Standard with (4) 4″ Stem Casters (2 with brakes)
  • Includes drawers (-D)
  • 115v/60/1, 8 ft. cord and plug
  • Shipping Crate: 31.5 “W x 34 “D x 36.5 “H at 176 lbs
  • Energy efficient automatic hot gas condensate evaporator
  • Five Years compressor warranty, Three Years parts and labor warranty

LIBRARY

DESCRIPTION

The CRMF27-D Commercial Series Undercounter Single Section Freezer with Stainless Drawers is a space saving workhorse. With a Net capacity of 6.22 cubic feet this efficient Undercounter Freezer is perfect for tight kitchens.
The CRMF27-D is constructed of stainless steel, which protects this unit from accidental damage and rust. Plus, it is easy to clean. The CRMF27-D includes Includes 2 stainless steel drawers with 175 lbs dynamic load rating, comes Standard with (4) 4″ Stem Casters (2 with brakes), and the Each drawer accommodates: (1) 12″ x 20″ x 6″ deep pan (pans by others). The unit is ISO 9001:14001, ETL Sanitation Listed, cETLus Listed, Manufactured in the USA and includes a Five Years compressor warranty / Three Years parts and labor warranty.

SPECIFICATIONS

Weight 176 lbs lbs
Dimensions 30" D x 27" W x 33.63" H in
Height

33.63″ H

Width

27″ W

Depth

30″ D

Shipping Weight

176 lbs

Certifications:

ISO 9001:14001, ETL Sanitation Listed, cETLus Listed, Manufactured in the USA

Energy Star® Qualified:

No

Electrical Specs:

Electrical Connection: 5 – 15P NEMA, 115v/60/1, 8 ft. cord and plug, Energy Consumption: 2.66 kwh/day, Amperage: 3.4, Max Fuse/HACR Breaker: 15 A

Storage Specs:

Nominal Storage Capacity: 7.2ft3, Interior Storage Capacity: 6.22ft3, Drawer Opening: 22.6″ W x 22.9″ H , Depth with Drawer fully extended: 43.25″ D, Drawers Included: 2

Refrigeration Data:

Nominal Compres. of 841 BTU/hr at 1/5 HP, Heat Rejection: 442 BTU/hr

Operating Limits:

Ambient Temp Range: 45 – 100°F, Voltage Range: 104 – 126V, Control Setpoint Range: -10 – +10°F, , Refrigerant: R-134A
