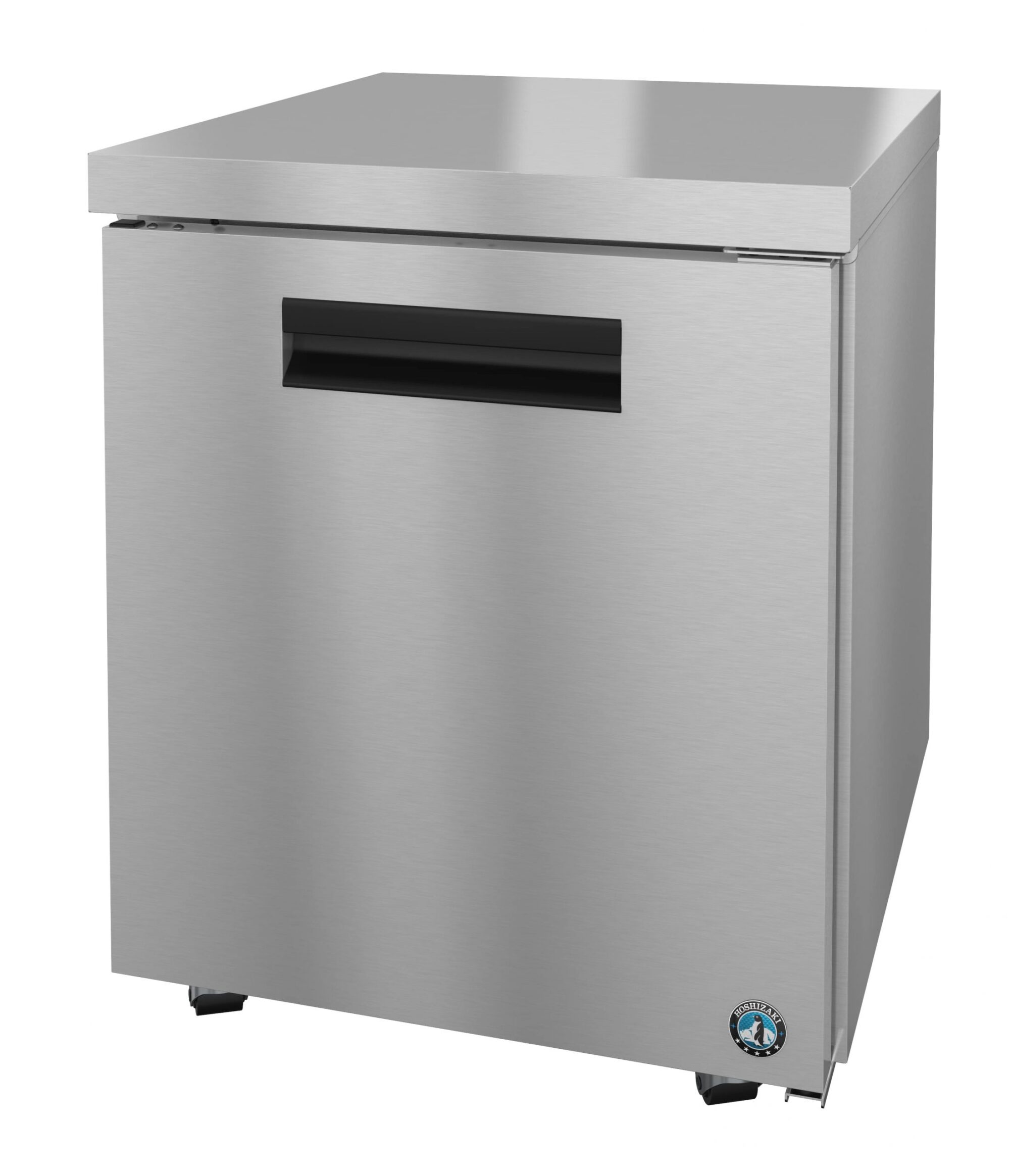

CRMF27-LP, Freezer, Single Section Undercounter with Low Profile Design

  • Dimensions: 27″ W x 30″ D x 32.3″ H
  • Net capacity of 6.22 cubic feet
  • Nominal Compres. of 841 BTU/hr at 1/5 HP
  • Electrical consumption of 2.66 kWh/day, at 3.4 Amps on a 5 – 15P NEMA Plug
  • Exclusive “stepped” door design to protect recessed door gasket
  • Spring assisted self closing door, with stay open feature (field reversible without kit)
  • Extruded aluminum flush mount door handle
  • Magnetic door gasket is easily removable for cleaning
  • Stainless steel exterior door with ABS interior liner
  • Insulated with 2″ CFC free, foamed in place polyurethane
  • Stainless steel exterior front, sides and top
  • Stainless steel interior sides, back, and floor
  • R-134a refrigerant
  • Automatic defrost
  • Enamel coated evaporator coil for extended life
  • Includes 1 epoxy coated shelf
  • Epoxy coated wire shelves adjustable in 1/2″ increments on anodized aluminum supports
  • Standard with (4) 2.5″ Stem Casters (2 with brakes)
  • Includes 2.25″ Casters (-LP) (ADA compliant)
  • 115v/60/1, 8 ft. cord and plug
  • Shipping Crate: 31.5 “W x 34 “D x 36.5 “H at 160 lbs
  • Energy efficient automatic hot gas condensate evaporator
  • Five Years compressor warranty, Three Years parts and labor warranty

LIBRARY

DESCRIPTION

The CRMF27-LP Commercial Series Undercounter Single Section Freezer with a Low Profile design that is ADA compliant. With a Net capacity of 6.22 cubic feet this efficient Undercounter Freezer is perfect for tight kitchens.
The CRMF27-LP is constructed of stainless steel, which protects this unit from accidental damage and rust. Plus, it is easy to clean. The CRMF27-LP also Includes 1 epoxy coated shelf, and comes Standard with (4) 2.5″ Stem Casters (2 with brakes), it features Spring assisted self closing door, with stay open feature (field reversible without kit). Includes 2.25″ Casters (-LP) (ADA compliant). The unit is ISO 9001:14001, ETL Sanitation Listed, cETLus Listed and includes a Five Years compressor warranty / Three Years parts and labor warranty.

SPECIFICATIONS

Weight 160 lbs lbs
Dimensions 30" D x 27" W x 32.3" H in
Height

32.3″ H

Width

27″ W

Depth

30″ D

Shipping Weight

160 lbs

Certifications:

ISO 9001:14001, ETL Sanitation Listed, cETLus Listed

Energy Star® Qualified:

No

Electrical Specs:

Electrical Connection: 5 – 15P NEMA, 115v/60/1, 8 ft. cord and plug, Energy Consumption: 2.66 kwh/day, Amperage: 3.4, Max Fuse/HACR Breaker: 15 A

Storage Specs:

Nominal Storage Capacity: 7.2ft3, Interior Storage Capacity: 6.22ft3, Door Opening: 22.6″ W x 22.9″ H , Depth with Door fully extended: 54.5″ D, Shelves Included: 1

Refrigeration Data:

Nominal Compres. of 841 BTU/hr at 1/5 HP, Heat Rejection: 442 BTU/hr

Operating Limits:

Ambient Temp Range: 45 – 100°F, Voltage Range: 104 – 126V, Control Setpoint Range: -10 – +10°F, , Refrigerant: R-134A
