- Dimensions: 60″ W x 30″ D x 33.63″ H
- Net capacity of 16.6 cubic feet
- Nominal Compres. of 1527 BTU/hr at 1/3 HP
- Electrical consumption of 4.86 kWh/day, at 6 Amps on a 5 – 15P NEMA Plug
- Exclusive “stepped” door design to protect recessed door gasket
- Spring assisted self closing door, with stay open feature (field reversible without kit)
- Extruded aluminum flush mount door handle
- Magnetic door gasket is easily removable for cleaning
- Stainless steel exterior door with ABS interior liner
- Insulated with 2″ CFC free, foamed in place polyurethane
- Stainless steel exterior front, sides and top
- Stainless steel interior sides, back, and floor
- R-134a refrigerant
- Automatic defrost
- Enamel coated evaporator coil for extended life
- Includes 2 epoxy coated shelves
- Epoxy coated wire shelves adjustable in 1/2″ increments on anodized aluminum supports
- Standard with (4) 4″ Stem Casters (2 with brakes)
- Optional kits: 2.25″ or 6″ casters, 6″ legs, additional shelves, locks
- 115v/60/1, 8 ft. cord and plug
- Shipping Crate: 62 “W x 34 “D x 36.5 “H at 268 lbs
- Energy efficient automatic hot gas condensate evaporator
- Five Years compressor warranty, Three Years parts and labor warranty

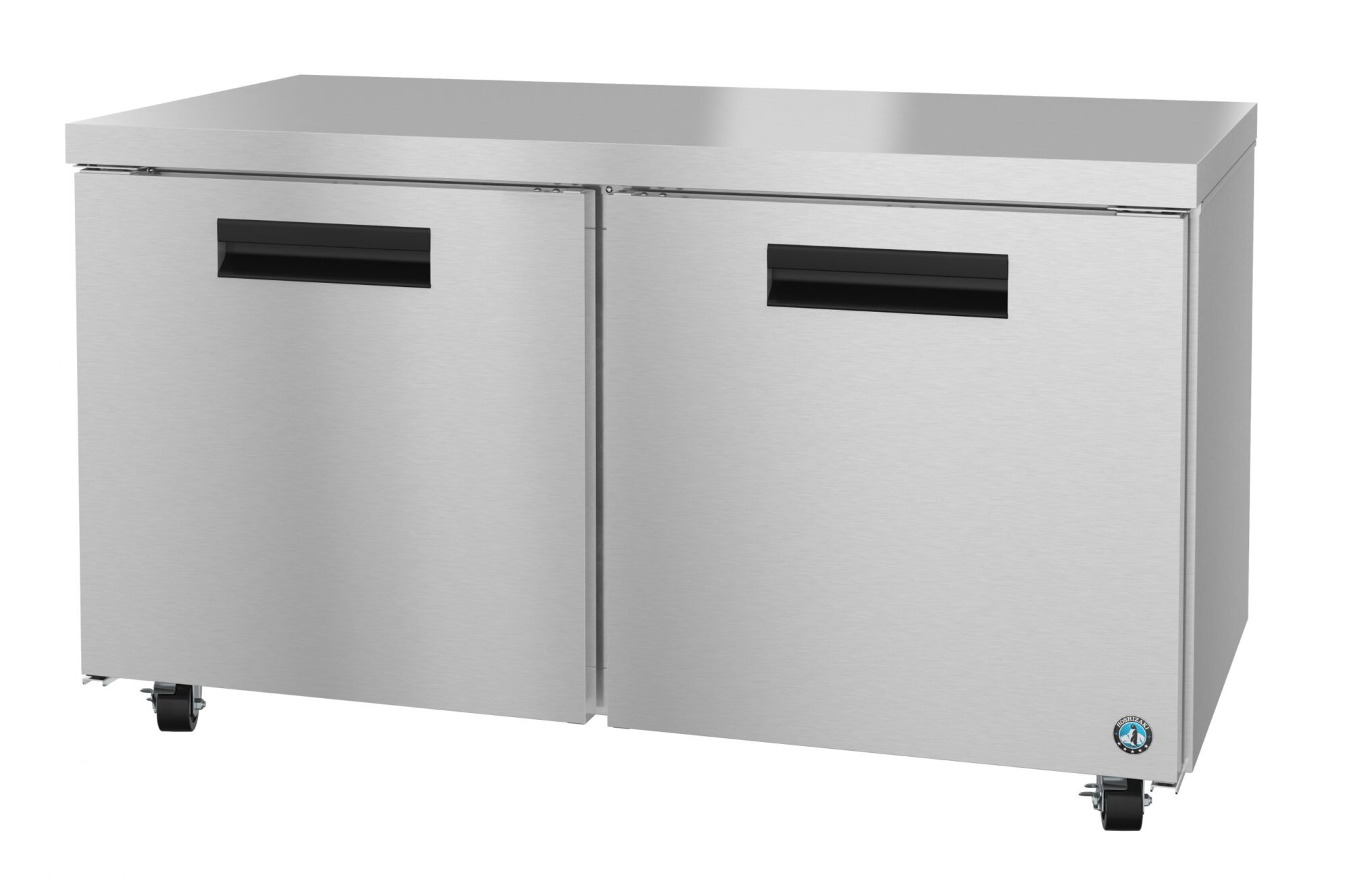

CRMF60, Freezer, Two Section Undercounter
LIBRARY
Service Literature
Specification Sheet Instruction Manual Parts Manual Service Manual CAD/Revit Files Warranty StatementDESCRIPTION
The CRMF60 Commercial Series Undercounter Two Section Freezer with Stainless Doors is an attractive addition in any kitchen. With a Net capacity of 16.6 cubic feet this front breathing Undercounter Freezer is perfect for tight spaces.
The CRMF60 is constructed of stainless steel, which protects this unit from accidental damage and rust. Plus, it is easy to clean. The CRMF60 Includes 2 epoxy coated shelves, and comes Standard with (4) 4″ Stem Casters (2 with brakes), it features Spring assisted self closing door, with stay open feature (field reversible without kit). Optional kits: 2.25″ or 6″ casters, 6″ legs, additional shelves, locks. The unit is ISO 9001:14001, ETL Sanitation Listed, cETLus Listed and includes a Five Years compressor warranty / Three Years parts and labor warranty.
SPECIFICATIONS
| Weight | 268 lbs lbs |
|---|---|
| Dimensions | 30" D x 60" W x 33.63" H in |
| Height | 33.63″ H |
| Width | 60″ W |
| Depth | 30″ D |
| Shipping Weight | 268 lbs |
| Certifications: | ISO 9001:14001, ETL Sanitation Listed, cETLus Listed |
| Energy Star® Qualified: | No |
| Electrical Specs: | Electrical Connection: 5 – 15P NEMA, 115v/60/1, 8 ft. cord and plug, Energy Consumption: 4.86 kwh/day, Amperage: 6, Max Fuse/HACR Breaker: 15 A |
| Storage Specs: | Nominal Storage Capacity: 17.55ft3, Interior Storage Capacity: 16.6ft3, Door Opening: 25.5″ W x 22.9″ H , Depth with Door fully extended: 58.5″ D, Shelves Included: 2 |
| Refrigeration Data: | Nominal Compres. of 1527 BTU/hr at 1/3 HP, Heat Rejection: 821 BTU/hr |
| Operating Limits: | Ambient Temp Range: 45 – 100°F, Voltage Range: 104 – 126V, Control Setpoint Range: -18 – 10°F, Refrigerant: R-134a |
