  • CRMF27

ADD TO COMPARE

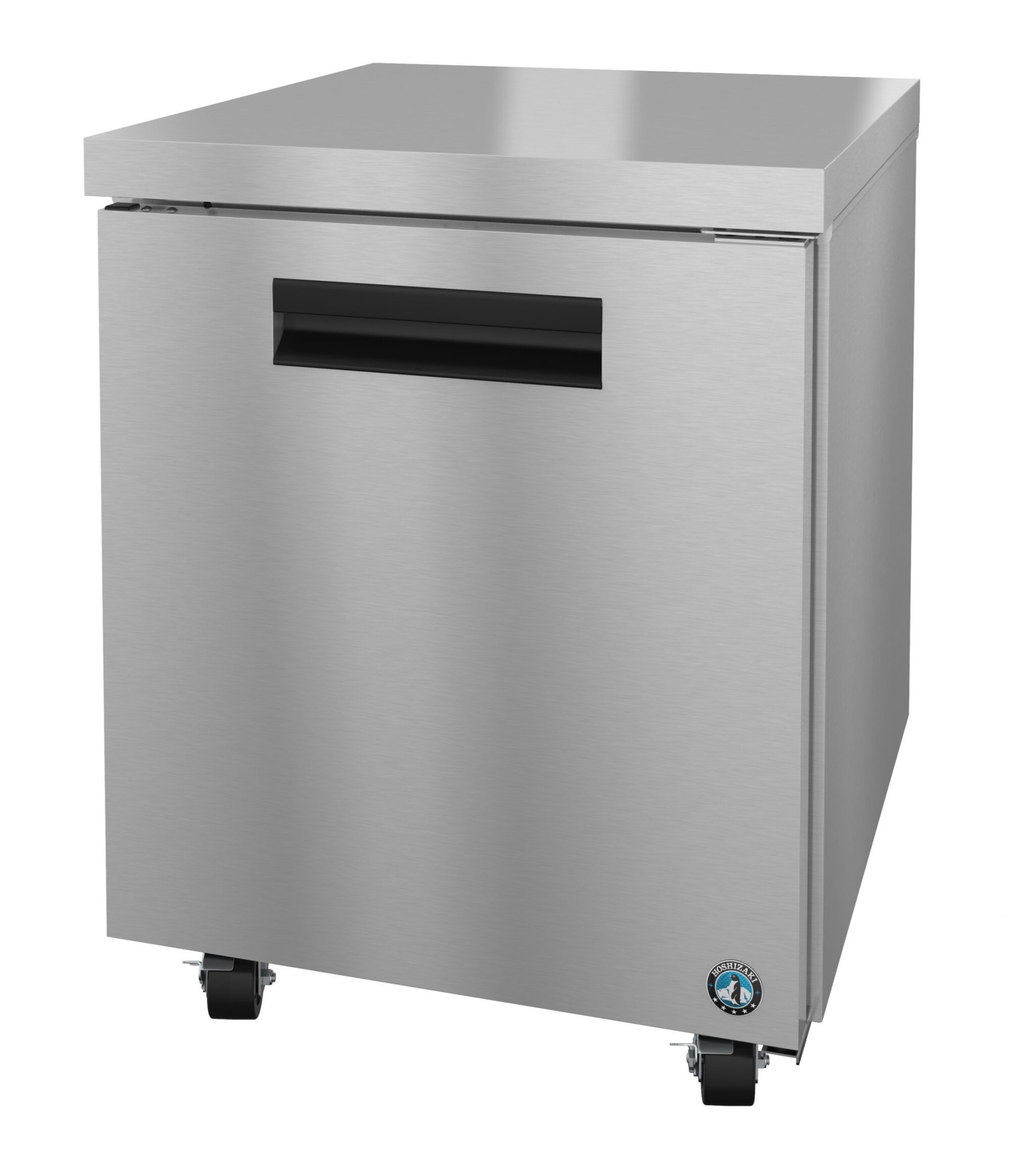

CRMR27, Refrigerator, Single Section Undercounter

  • Dimensions: 27″ W x 30″ D x 33.63″ H
  • Net capacity of 6.22 cubic feet
  • Nominal Compres. of 1029 BTU/hr at 1/6 HP
  • Electrical consumption of 1.4 kWh/day, at 2.6 Amps on a 5 – 15P NEMA Plug
  • Exclusive “stepped” door design to protect recessed door gasket
  • Spring assisted self closing door, with stay open feature (field reversible without kit)
  • Extruded aluminum flush mount door handle
  • Magnetic door gasket is easily removable for cleaning
  • Stainless steel exterior door with ABS interior liner
  • Insulated with 2″ CFC free, foamed in place polyurethane
  • Stainless steel exterior front, sides and top
  • Stainless steel interior sides, back, and floor
  • R-134a refrigerant
  • Automatic defrost
  • Enamel coated evaporator coil for extended life
  • Includes 1 epoxy coated shelf
  • Anodized aluminium shelf supports adjustable in 1/2″ increments
  • Standard with (4) 4″ Stem Casters (2 with brakes)
  • Optional kits: 6″ casters or legs, stainless steel back panel
  • 115v/60/1, 8 ft. cord and plug
  • Shipping Crate: 31.5 “W x 34 “D x 36.5 “H at 176 lbs
  • ENERGY STAR Qualified
  • Five Years compressor warranty, Three Years parts and labor warranty

LIBRARY

DESCRIPTION

The CRMR27 Commercial Series Undercounter Single Section Refrigerator with a Stainless Door is an attractive addition in any kitchen. With a Net capacity of 6.22 cubic feet this front breathing Undercounter Refrigerator is perfect for tight spaces.
The CRMR27 is constructed of stainless steel, which protects this unit from accidental damage and rust. Plus, it is easy to clean. The CRMR27 Includes 1 epoxy coated shelf, and comes Standard with (4) 4″ Stem Casters (2 with brakes), it features Spring assisted self closing door, with stay open feature (field reversible without kit). Optional kits: 6″ casters or legs, stainless steel back panel. The unit is ISO 9001:14001, ETL Sanitation Listed, cETLus Listed, ENERGY STAR® Qualified and includes a Five Years compressor warranty / Three Years parts and labor warranty.

SPECIFICATIONS

Weight 176 lbs lbs
Dimensions 30" D x 27" W x 33.63" H in
Height

33.63″ H

Width

27″ W

Depth

30″ D

Shipping Weight

176 lbs

Certifications:

ISO 9001:14001, ETL Sanitation Listed, cETLus Listed, ENERGY STAR Qualified

Energy Star® Qualified:

Yes

Electrical Specs:

Electrical Connection: 5 – 15P NEMA, 115v/60/1, 8 ft. cord and plug, Energy Consumption: 1.4 kwh/day, Amperage: 2.6, Max Fuse/HACR Breaker: 15 A

Storage Specs:

Nominal Storage Capacity: 7.2ft3, Interior Storage Capacity: 6.22ft3, Door Opening: 22.6″ W x 22.9″ H , Depth with Door fully extended: 54.5″ D, Shelves Included: 1

Refrigeration Data:

Nominal Compres. of 1029 BTU/hr at 1/6 HP, Heat Rejection: 202.8 BTU/hr

Operating Limits:

Ambient Temp Range: 45 – 100°F, Voltage Range: 104 – 126V, Control Setpoint Range: 32 – 52°F, Refrigerant: R-134A
