- Dimensions: 48″ W x 30″ D x 45.25″ H
- Net capacity of 11.95 cubic feet
- Nominal Compres. of 1029 BTU/hr at 1/6 HP
- Electrical consumption of 4 kWh/day, at 2.6 Amps on a 5 – 15P NEMA Plug
- Drawer slides are constructed of 16 gauge stainless steel with acetal rollers
- Each drawer accommodates: (1) 1/2 size and (1) 1/3 size, 6″ deep pans (pans by others)
- Extruded aluminum flush mount drawer/door handles
- Magnetic drawer and door gaskets are easily removable for cleaning
- Stainless steel exterior door with ABS interior liner
- Cabinet, doors, and drawers are insulated with 2″ CFC free, foamed in place polyurethane
- Stainless steel exterior front, sides and top with stainless steel interior
- Engineered to maintain food safe temperatures in 100°F ambient conditions
- R-134a refrigerant
- Enamel coated evaporator coil for extended life
- Includes 2 stainless steel drawers,1 epoxy coated shelf, and 18 polycarbonate plastic 1/6th size pans, 4″ deep
- Spring assisted self closing door, with stay open feature (field reversible)
- Standard with (4) 6″ Stem Casters (2 with brakes)
- 48″, 10″ deep, 1/2″thick white polyethylene cutting board is standard
- 115v/60/1, 8 ft. cord and plug
- Shipping Crate: 52.5 “W x 34 “D x 45.75 “H at 242 lbs
- Energy efficient automatic hot gas condensate evaporator
- Five Years compressor warranty, Three Years parts and labor warranty
- Drawer/Door units are made to order. Allow 4-6 weeks

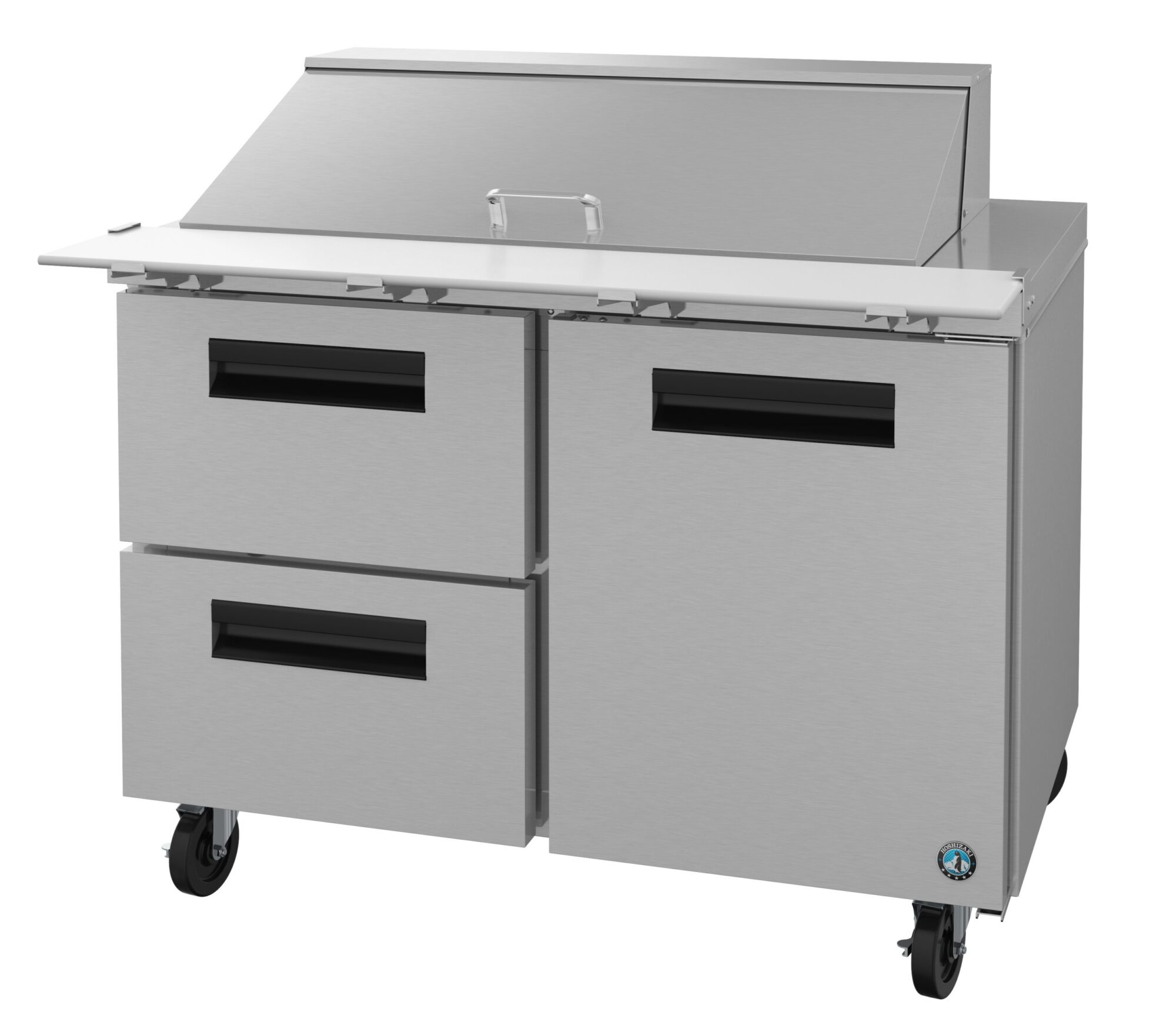

CRMR48-18MD2, Refrigerator, Mega Top Prep Table with Drawers/Door
LIBRARY
Service Literature
Specification Sheet Instruction Manual Parts Manual Service Manual CAD/Revit Files Warranty StatementDESCRIPTION
The CRMR48-18MD2 Commercial Series Mega Top Prep Table Refrigerator is a Drawer/Door Combo cabinet. Engineered to maintain food safe temperatures in 100°F ambient conditions and with a this front breathing Prep Table Refrigerator is the right choice for hot kitchens.
The CRMR48-18MD2 is constructed of stainless steel, which protects this unit from minor damage and rust. Plus, it is easy to clean. The CRMR48-18MD2 Includes 2 stainless steel drawers,1 epoxy coated shelf, and 18 polycarbonate plastic 1/6th size pans, 4″ deep. Each drawer accommodates: (1) 1/2 size and (1) 1/3 size, 6″ deep pans (pans by others). 48″, 10″ deep, 1/2″thick white polyethylene cutting board is standard. The unit is ISO 9001:14001, ETL Sanitation Listed, cETLus Listed and includes a Five Years compressor warranty / Three Years parts and labor warranty. Drawer/Door units are made to order. Allow 4-6 weeks.
SPECIFICATIONS
| Weight | 242 lbs lbs |
|---|---|
| Dimensions | 30" D x 48" W x 45.25" H in |
| Height | 45.25″ H |
| Width | 48″ W |
| Depth | 30″ D |
| Shipping Weight | 242 lbs |
| Certifications: | ISO 9001:14001, ETL Sanitation Listed, cETLus Listed |
| Energy Star® Qualified: | No |
| Electrical Specs: | Electrical Connection: 5 – 15P NEMA, 115v/60/1, 8 ft. cord and plug, Energy Consumption: 4 kwh/day, Amperage: 2.6, Max Fuse/HACR Breaker: 15 A |
| Storage Specs: | Nominal Storage Capacity: 13.66ft3, Interior Storage Capacity: 11.95ft3, Door Opening: 19.5″ W x 23″ H , Depth with Door fully extended: 52.5″ D, Shelves Included: 1 epoxy coated shelf |
| Refrigeration Data: | Nominal Compres. of 1029 BTU/hr at 1/6 HP, Heat Rejection: 567 BTU/hr |
| Operating Limits: | Ambient Temp Range: 45 – 100°F, Voltage Range: 104 – 126V, Control Setpoint Range: 32 – 52°F, Refrigerant: R-134A |
