  • CRMRF48-WD4

ADD TO COMPARE

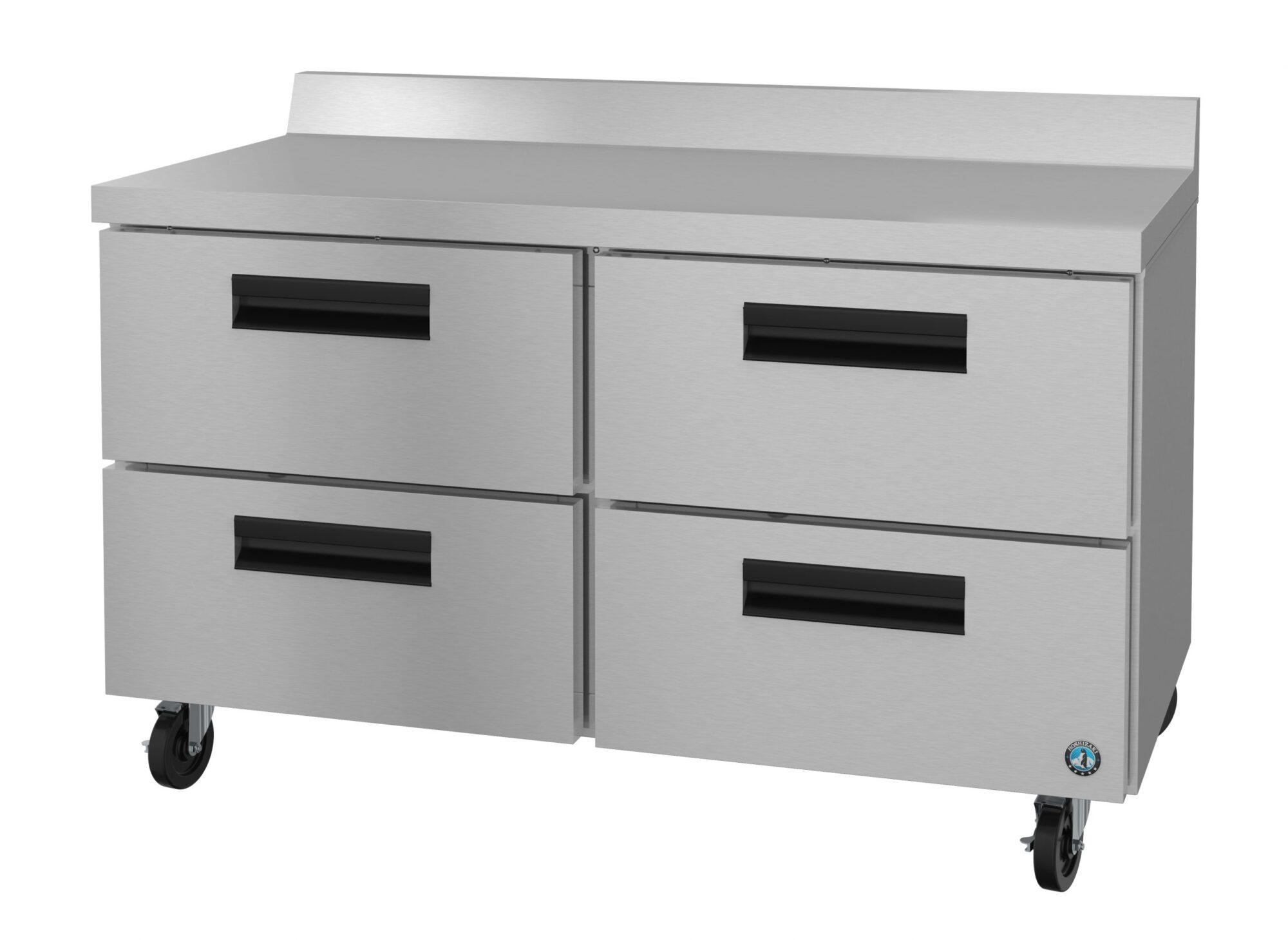

CRMR48-WD4, Refrigerator, Two Section Worktop with Drawers

  • Dimensions: 48″ W x 30″ D x 40″ H
  • Net capacity of 11.95 cubic feet
  • Nominal Compres. of 1029 BTU/hr at 1/6 HP
  • Electrical consumption of 2.3 kWh/day, at 2.6 Amps on a 5 – 15P NEMA Plug
  • Drawer slides are constructed of 16 gauge stainless steel with acetal rollers
  • Each drawer accommodates: (1) 1/2 size and (1) 1/3 size, 6″ deep pans (pans by others)
  • Extruded aluminum flush mount drawer handle
  • Magnetic drawer gasket is easily removable for cleaning
  • Stainless steel exterior drawer with stainless steel interior
  • Insulated with 2″ CFC free, foamed in place polyurethane
  • Stainless steel exterior front, sides and top
  • Anodized aluminum interior sides and back with stainless steel interior floor
  • R-134a refrigerant
  • Automatic defrost
  • Enamel coated evaporator coil for extended life
  • Includes 4 stainless steel drawers with 175 lbs dynamic load rating
  • Drawer frames are formed of 14 gauge stainless steel and securely fastened in the cabinet
  • Standard with (4) 6″ Stem Casters (2 with brakes)
  • Includes drawers (-D), (1) 1/2 size and (1) 1/3 size pans per drawer
  • 115v/60/1, 8 ft. cord and plug
  • Shipping Crate: 52.5 “W x 34 “D x 40.5 “H at 263 lbs
  • Energy efficient automatic hot gas condensate evaporator
  • Five Years compressor warranty, Three Years parts and labor warranty

LIBRARY

DESCRIPTION

The CRMR48-WD4 Commercial Series Worktop Two Section Refrigerator with Stainless Drawers is an attractive addition in any kitchen. With a Net capacity of 11.95 cubic feet this front breathing Worktop Refrigerator is perfect for tight spaces.
The CRMR48-WD4 is constructed of stainless steel, which protects this unit from accidental damage and rust. Plus, it is easy to clean. The CRMR48-WD4 Includes 4 stainless steel drawers with 175 lbs dynamic load rating, each of its Each drawer accommodates: (1) 1/2 size and (1) 1/3 size, 6″ deep pans (pans by others). Includes drawers (-D), (1) 1/2 size and (1) 1/3 size pans per drawer. The unit is ISO 9001:14001, ETL Sanitation Listed, cETLus Listed and includes a Five Years compressor warranty / Three Years parts and labor warranty.

SPECIFICATIONS

Weight 263 lbs lbs
Dimensions 30" D x 48" W x 40" H in
Height

40″ H

Width

48″ W

Depth

30″ D

Shipping Weight

263 lbs

Certifications:

ISO 9001:14001, ETL Sanitation Listed, cETLus Listed

Energy Star® Qualified:

No

Electrical Specs:

Electrical Connection: 5 – 15P NEMA, 115v/60/1, 8 ft. cord and plug, Energy Consumption: 2.3 kwh/day, Amperage: 2.6, Max Fuse/HACR Breaker: 15 A

Storage Specs:

Nominal Storage Capacity: 13.66ft3, Interior Storage Capacity: 11.95ft3, Drawer Opening: 19.5″ W x 22.9″ H , Depth with Drawer fully extended: 43.25″ D, Drawers Included: 4

Refrigeration Data:

Nominal Compres. of 1029 BTU/hr at 1/6 HP, Heat Rejection: 327 BTU/hr

Operating Limits:

Ambient Temp Range: 45 – 100°F, Voltage Range: 104 – 126V, Control Setpoint Range: 32 – 52°F, Refrigerant: R-134A
