- Dimensions: 60″ W x 30″ D x 40″ H
- Net capacity of 16.6 cubic feet
- Nominal Compres. of 1386 BTU/hr at 1/5 HP
- Electrical consumption of 3.3 kWh/day, at 4.2 Amps on a 5 – 15P NEMA Plug
- Drawer slides are constructed of 16 gauge stainless steel with acetal rollers
- Each drawer accommodates: (1) 12″ x 20″ x 6″ deep pan (pans by others)
- Extruded aluminum flush mount drawer/door handles
- Magnetic drawer and door gaskets are easily removable for cleaning
- Stainless steel exterior door with ABS interior liner
- Cabinet, doors, and drawers are insulated with 2″ CFC free, foamed in place polyurethane
- Stainless steel exterior front, sides and top with stainless steel interior
- Engineered to maintain food safe temperatures in 100°F ambient conditions
- R-134a refrigerant
- Enamel coated evaporator coil for extended life
- Includes 2 stainless steel drawers,1 epoxy coated shelf
- Spring assisted self closing door, with stay open feature (field reversible)
- Standard with (4) 6″ Stem Casters (2 with brakes)
- Optional kits: 2.25″ or 6″ casters, drawer adapter bars, epoxy shelves, overshelves
- 115v/60/1, 8 ft. cord and plug
- Shipping Crate: 62 “W x 34 “D x 40.5 “H at 292 lbs
- Energy efficient automatic hot gas condensate evaporator
- Five Years compressor warranty, Three Years parts and labor warranty
- Drawer/Door units are made to order. Allow 4-6 weeks

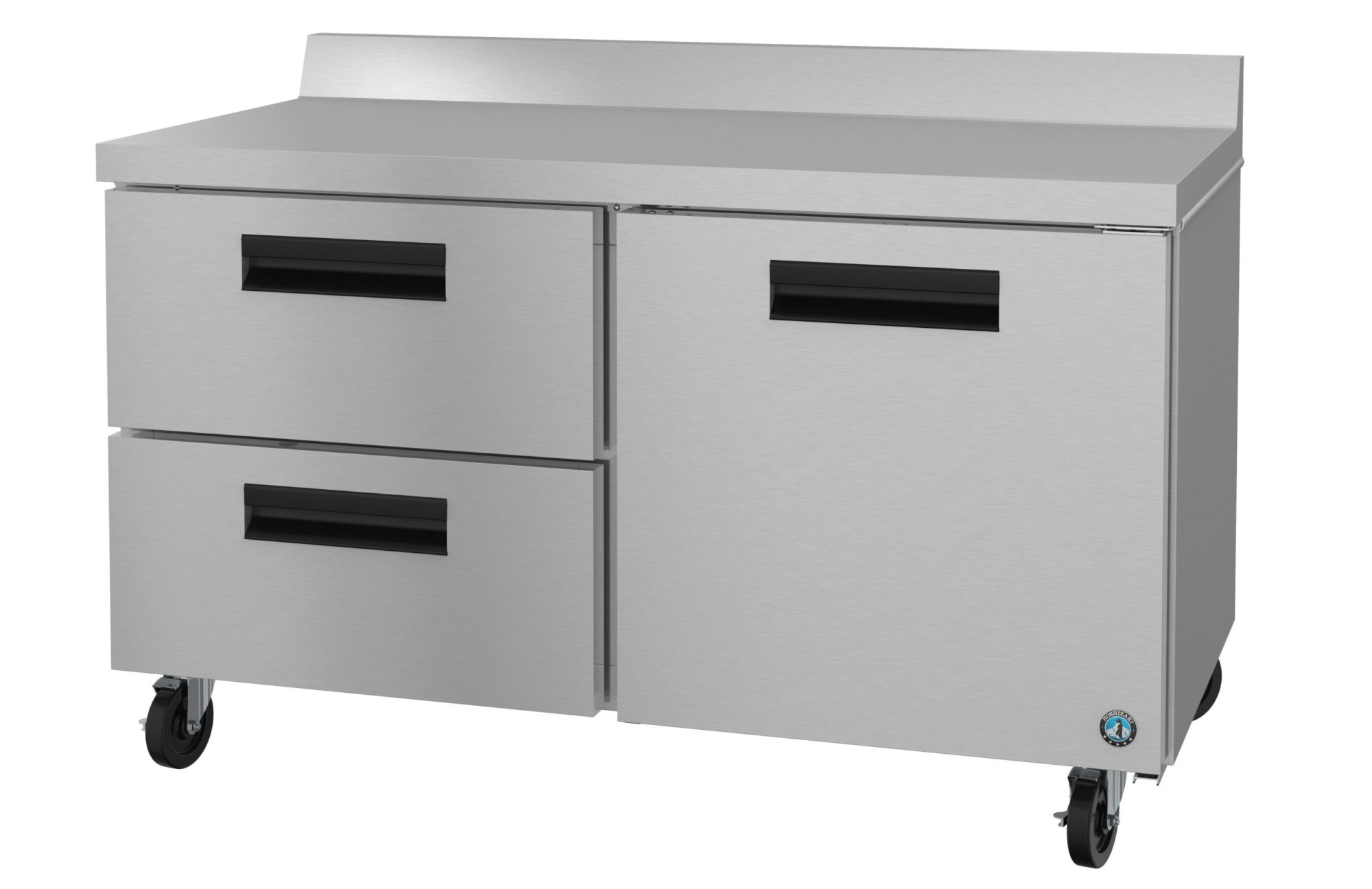

CRMR60-WD2, Refrigerator, Two Section Worktop with Drawers/Door
LIBRARY
Service Literature
Specification Sheet Instruction Manual Parts Manual Service Manual CAD/Revit Files Warranty StatementDESCRIPTION
The CRMR60-WD2 Commercial Series Two Section Worktop Refrigerator is a Drawer/Door Combo cabinet. Engineered to maintain food safe temperatures in 100°F ambient conditions and with a Net capacity of 30 cubic feet this front breathing Worktop Refrigerator is the right choice for hot kitchens.
The CRMR60-WD2 is constructed of stainless steel, which protects this unit from minor damage and rust. Plus, it is easy to clean. The CRMR60-WD2 Includes 2 stainless steel drawers,1 epoxy coated shelf. Each drawer accommodates: (1) 12″ x 20″ x 6″ deep pan (pans by others). Optional kits: 2.25″ or 6″ casters, drawer adapter bars, epoxy shelves, overshelves. The unit is ISO 9001:14001, ETL Sanitation Listed, cETLus Listed and includes a Five Years compressor warranty / Three Years parts and labor warranty. Drawer/Door units are made to order. Allow 4-6 weeks.
SPECIFICATIONS
| Weight | 292 lbs lbs |
|---|---|
| Dimensions | 30" D x 60" W x 40" H in |
| Height | 40″ H |
| Width | 60″ W |
| Depth | 30″ D |
| Shipping Weight | 292 lbs |
| Certifications: | ISO 9001:14001, ETL Sanitation Listed, cETLus Listed |
| Energy Star® Qualified: | No |
| Electrical Specs: | Electrical Connection: 5 – 15P NEMA, 115v/60/1, 8 ft. cord and plug, Energy Consumption: 3.3 kwh/day, Amperage: 4.2, Max Fuse/HACR Breaker: 15 A |
| Storage Specs: | Nominal Storage Capacity: 17.55ft3, Interior Storage Capacity: 16.6ft3, Door Opening: 25.5″ W x 23″ H , Depth with Door fully extended: 58.5″ D, Shelves Included: 1 epoxy coated shelf |
| Refrigeration Data: | Nominal Compres. of 1386 BTU/hr at 1/5 HP, Heat Rejection: 473.5 BTU/hr |
| Operating Limits: | Ambient Temp Range: 45 – 100°F, Voltage Range: 104 – 126V, Control Setpoint Range: 32 – 52°F, Refrigerant: R-134A |
