  • CRMR72-12

ADD TO COMPARE

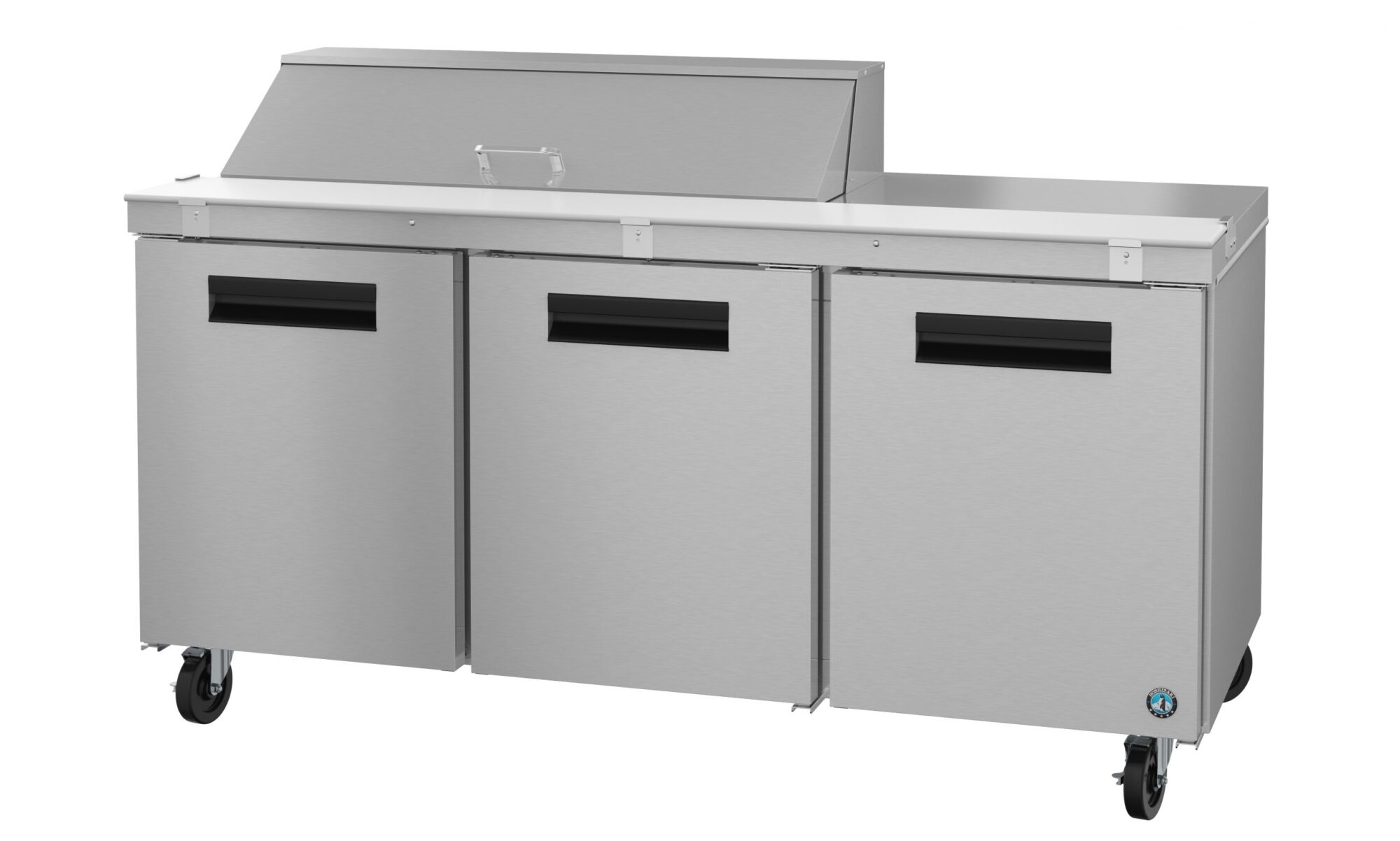

CRMR72-12, Refrigerator, Three Section Sandwich Top Prep Table

  • Dimensions: 72″ W x 30″ D x 40″ H
  • Net capacity of 19.7 cubic feet
  • Nominal Compres. of 1386 BTU/hr at 1/5 HP
  • Electrical consumption of 2.84 kWh/day, at 4.2 Amps on a 5 – 15P NEMA Plug
  • Exclusive “stepped” door design to protect recessed door gasket
  • Spring assisted self closing door, with stay open feature (field reversible without kit)
  • Extruded aluminum flush mount door handle
  • Magnetic door gasket is easily removable for cleaning
  • Stainless steel exterior door with ABS interior liner
  • Insulated with 2″ CFC free, foamed in place polyurethane
  • Stainless steel exterior front, sides and top
  • Stainless steel interior sides, back, and floor
  • R-134a refrigerant
  • Provided with a full complement of plastic 1/6th size pans, 4″ deep and adapter bars
  • Enamel coated evaporator coil for extended life
  • Includes 3 epoxy coated shelves and 12 polycarbonate plastic 1/6th size pans, 4″ deep
  • Epoxy coated wire shelves adjustable in 1/2″ increments on anodized aluminum supports
  • Standard with (4) 6″ Stem Casters (2 with brakes)
  • Full length, 10″ deep, 1/2″ thick white polyethylene cutting board is standard
  • 115v/60/1, 8 ft. cord and plug
  • Shipping Crate: 74 “W x 34 “D x 36.75 “H at 312 lbs
  • Energy efficient automatic hot gas condensate evaporator
  • Five Years compressor warranty, Three Years parts and labor warranty

LIBRARY

DESCRIPTION

The CRMR72-12 Commercial Series Sandwich Top Prep Table Refrigerator with a Stainless Door is an attractive addition in any kitchen. With a Net capacity of 19.7 cubic feet this front breathing Prep Table Refrigerator is perfect for tight spaces.
The CRMR72-12 is constructed of stainless steel, which protects this unit from accidental damage and rust. Plus, it is easy to clean. The CRMR72-12 Includes 3 epoxy coated shelves and 12 polycarbonate plastic 1/6th size pans, 4″ deep, it features Spring assisted self closing door, with stay open feature (field reversible without kit). Full length, 10″ deep, 1/2″ thick white polyethylene cutting board is standard. The unit is ISO 9001:14001, ETL Sanitation Listed, cETLus Listed, Manufactured in the USA and includes a Five Years compressor warranty / Three Years parts and labor warranty.

SPECIFICATIONS

Weight 312 lbs lbs
Dimensions 30" D x 72" W x 40" H in
Height

40″ H

Width

72″ W

Depth

30″ D

Shipping Weight

312 lbs

Certifications:

ISO 9001:14001, ETL Sanitation Listed, cETLus Listed, Manufactured in the USA

Energy Star® Qualified:

No

Electrical Specs:

Electrical Connection: 5 – 15P NEMA, 115v/60/1, 8 ft. cord and plug, Energy Consumption: 2.84 kwh/day, Amperage: 4.2, Max Fuse/HACR Breaker: 15 A

Storage Specs:

Nominal Storage Capacity: 21.25ft3, Interior Storage Capacity: 19.7ft3, Door Opening: 19.5″ W x 22.9″ H , Depth with Door fully extended: 51.5″ D, Shelves Included: 3

Refrigeration Data:

Nominal Compres. of 1386 BTU/hr at 1/5 HP, Heat Rejection: 539 BTU/hr

Operating Limits:

Ambient Temp Range: 45 – 100°F, Voltage Range: 104 – 126V, Control Setpoint Range: 32 – 52°F, Refrigerant: R-134A
