  • DB-130H

ADD TO COMPARE

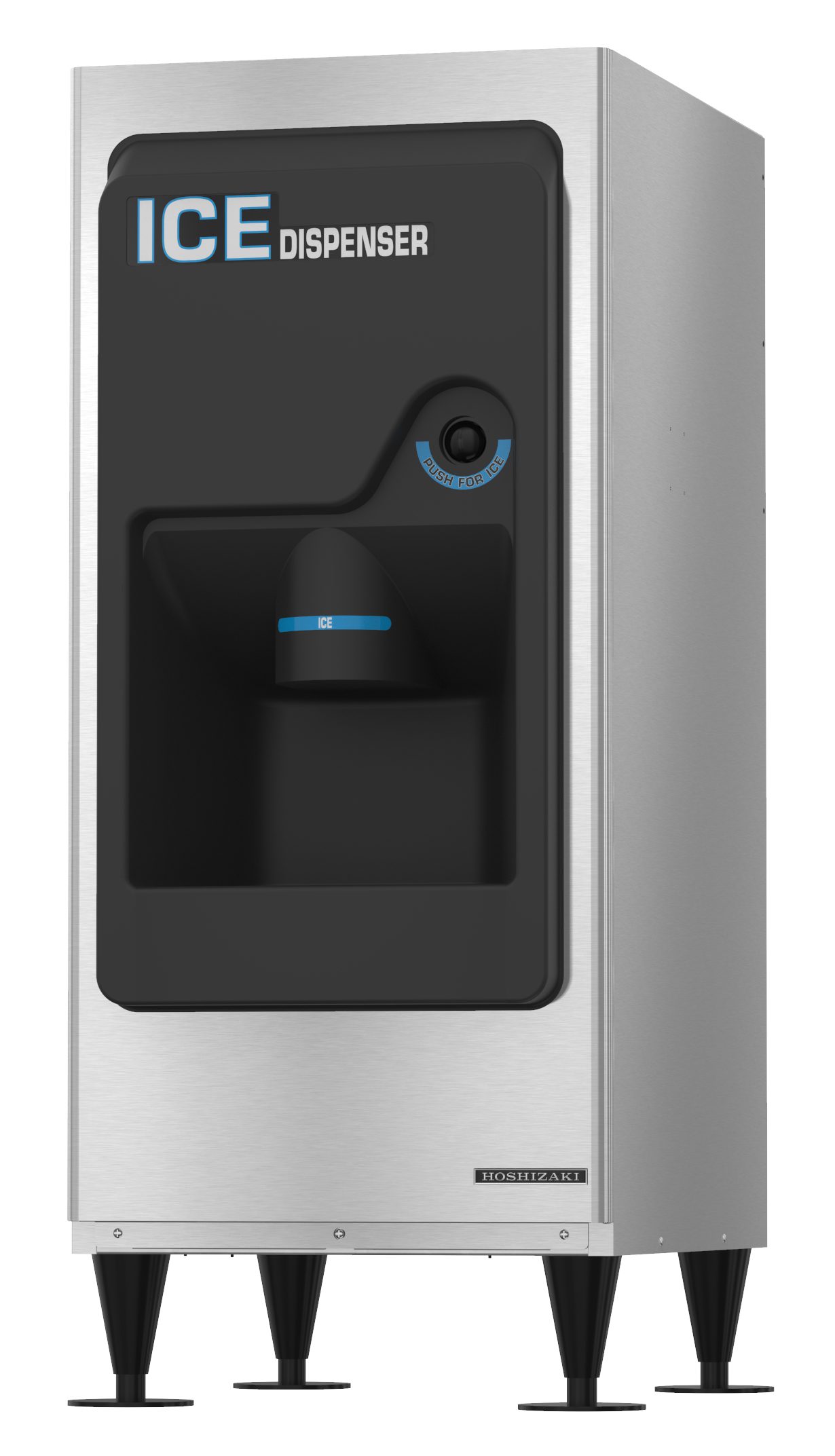

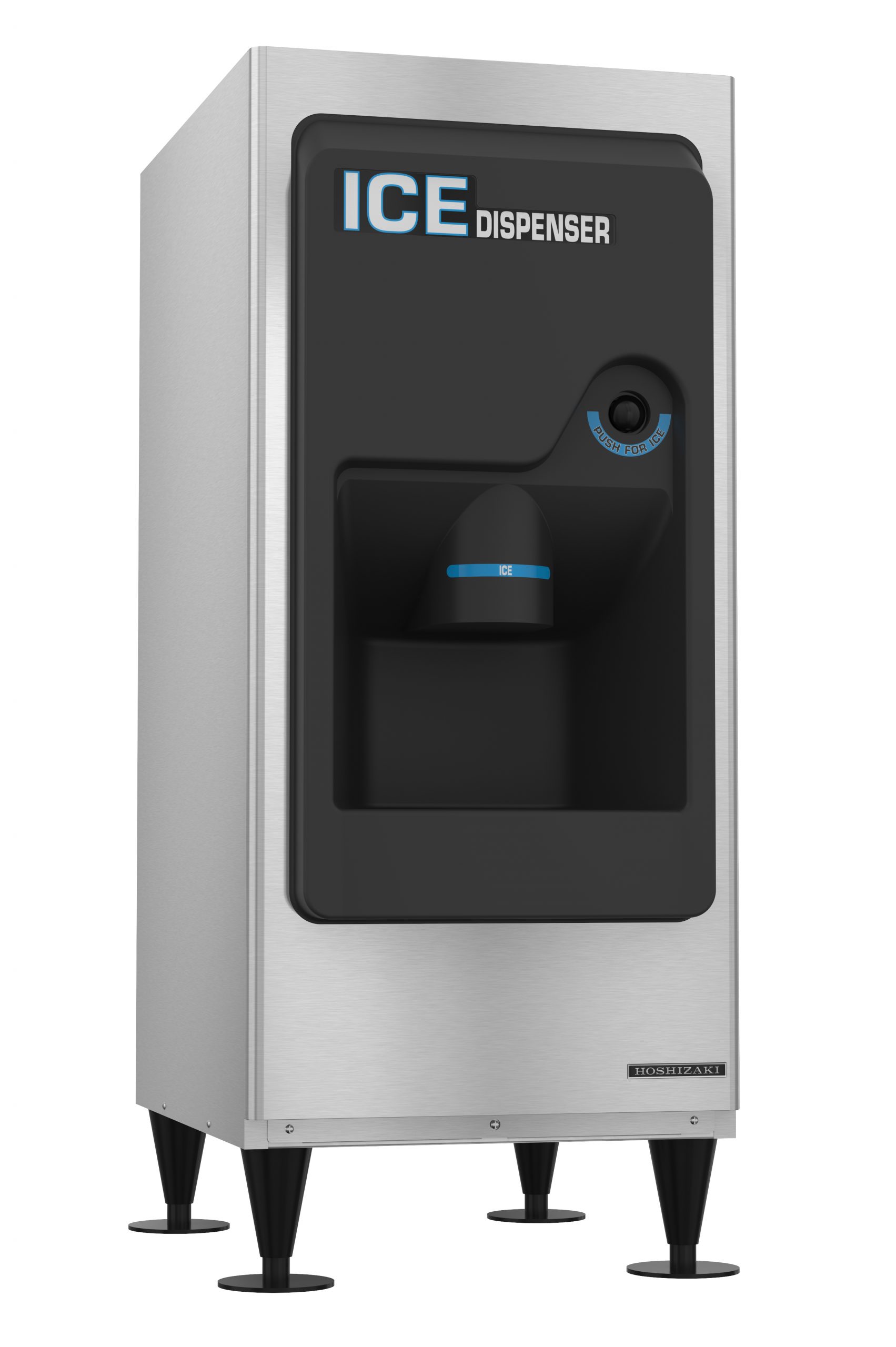

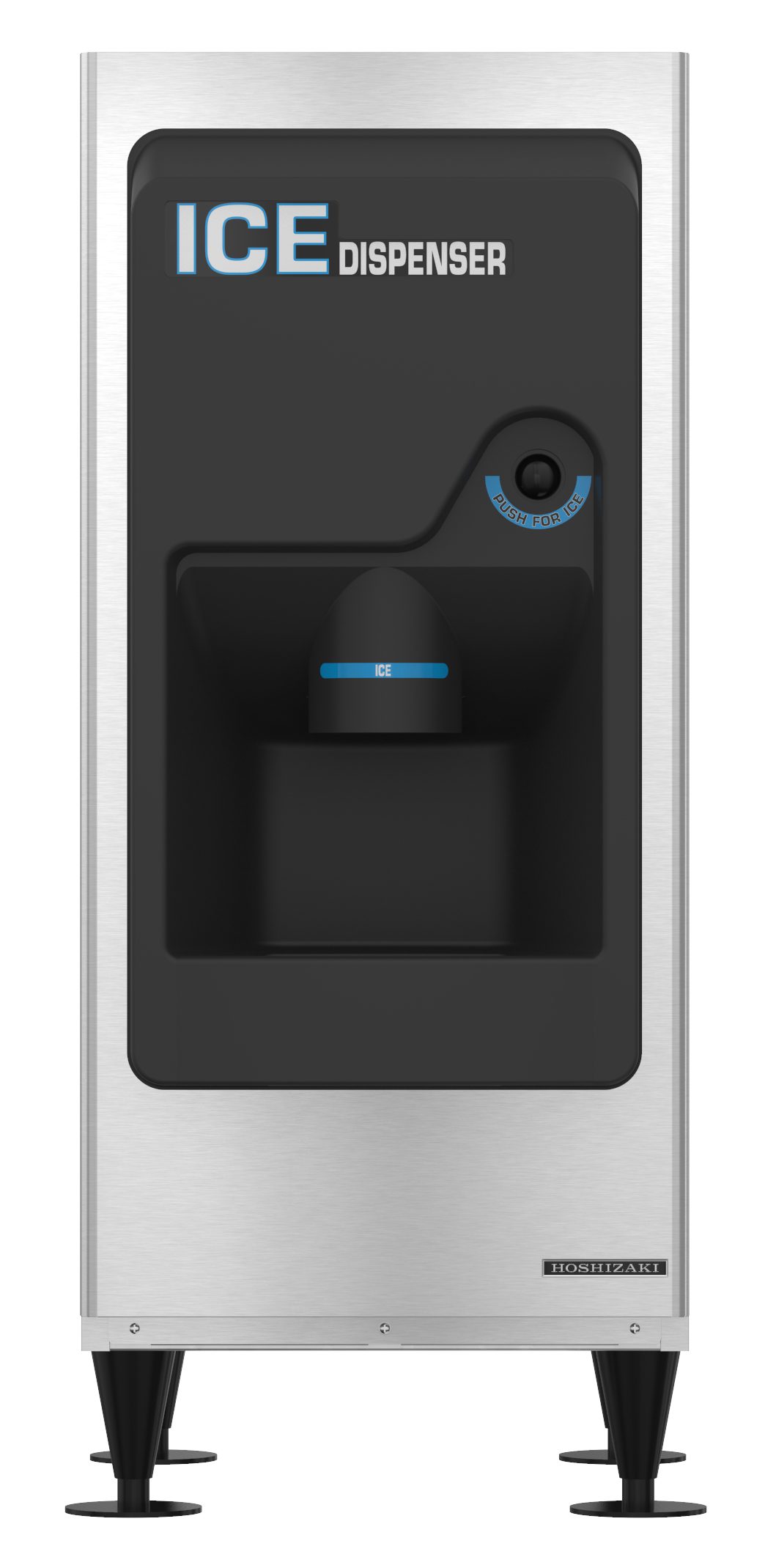

DB-130H, 22″ W Hotel/Motel Ice Dispenser – Stainless Steel Exterior

  • Dimensions: 22″ W x 30″ D x 53″ H
  • Stores up to 90 lbs of ice
  • AHRI-Rated Storage Capacity: 90 lbs
  • Single phase, 115v/60/1
  • Push button single auger agitator dispenses ice at 20 lbs. per minute
  • Foamed-in-place polyurethane insulation
  • Protected by H-GUARD Plus Antimicrobial Agent
  • For top-mounted ice makers (sold separately)
  • Ice dispensing area is ADA compliant
  • Ideal for hotel and motel applications
  • Standard with 6″ Painted Flange Legs
  • Card or coin mechanism optional
  • 115v/60/1 60 W dispensing gear motor, 1.4 Amps, 3/4″ FPT drain
  • Weight: 215
  • Three Years: Parts & Labor warranty on entire machine
SKU: DB-130H Categories: , , , , ,

LIBRARY

DESCRIPTION

Safely store up to 215 lbs of ice with this DB-130H 22″ ice storage bin & dispenser! It boasts foamed-in-place polyurethane insulation in all of the bin walls and the bottom of the unit to provide you with maximum ice preservation. The DB-130H features a durable cabinet with a seamless, easy to clean, polyethylene bin liner. This model comes Standard with 6″ Painted Flange Legs and a Ice dispensing area is ADA compliant. 115v/60/1 60 W dispensing gear motor, 1.4 Amps, 3/4″ FPT drain. The unit is NSF, UL Listed, ISO 9001:14001, ADA Compliant and includes a Three Years: Parts & Labor warranty on entire machine.Compatible icemakers/dispensers, sold separately: , KM-340M, KM-515M, KM-600M, KM-650M.

SPECIFICATIONS

Weight 90 lbs lbs
Dimensions 30" D x 22" W x 53" H in
Height

53″ H

Width

22″ W

Depth

30″ D

Shipping Weight

90 lbs

Certifications:

NSF, UL Listed, ISO 9001:14001, ADA Compliant

Energy Star® Qualified:

No

Electrical Specs:

Single phase, 115v/60/1 Amperage: 1.4, Max Fuse/HACR Breaker:

Ice Storage Capacity:

130 lbs, AHRI-Rated Capacity: 90 lbs

Compatible Icemakers:

KM-340M, KM-515M, KM-600M, KM-650M

Size Specs:

Dimensions: 22″ W x 30″ D x 53″ H, Shipping Weight: 215 lbs
