DB-200H

SPEC SHEET

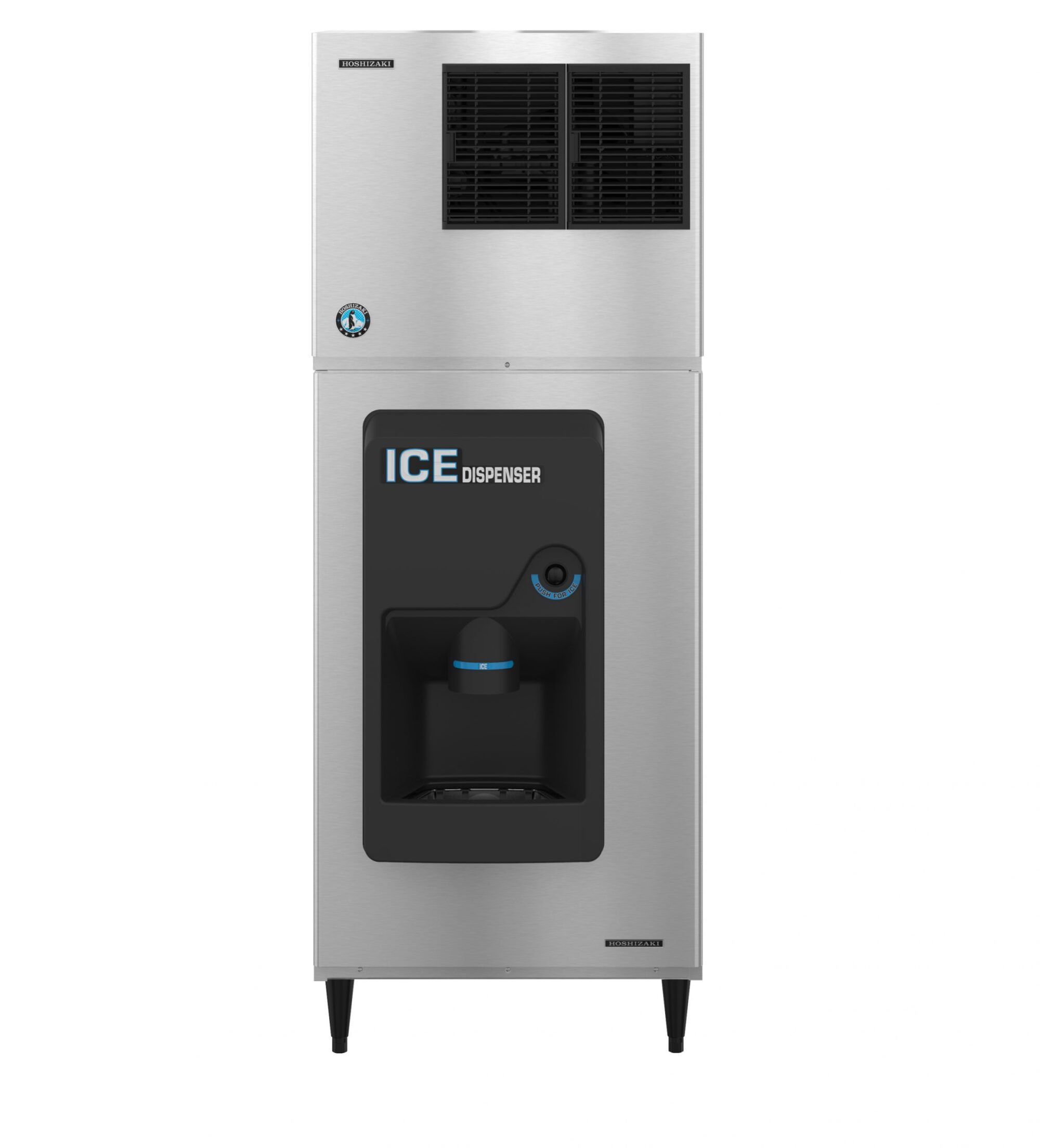

DB-200H, 30″ W Hotel/Motel Ice Dispenser – Stainless Steel Exterior

REQUEST A QUOTE

  • Dimensions: 30″ W x 30″ D x 53″ H
  • Stores up to 200 lbs of ice
  • Stainless steel auger and agitator
  • Single phase, 115v/60/1, Hardwired connection (no cord/plug included)
  • Push button single auger agitator dispenses ice at 13 lbs. per minute
  • Foamed-in-place polyurethane insulation
  • Protected by H-GUARD Plus Antimicrobial Agent
  • For top-mounted ice makers (sold separately)
  • Ice dispensing area is ADA compliant
  • Ideal for hotel and motel applications
  • Standard with 6″ Painted Flange Legs
  • Allow 6″ clearance at rear and sides for ease of maintenance and/or service
  • 60 W dispensing gear motor, 1.4 Amps, 3/4″ FPT drain
  • Weight: 240
  • Three Years: Parts & Labor warranty on entire machine
SKU: DB-200H Categories: , , , ,

LIBRARY

Service Literature

Specification Sheet Instruction Manual Parts Manual CAD/Revit Files

Sales Literature

Price List Sales Catalog Sales Brochure

Description

Safely store and dispense up to 200 lbs of ice with this Hotel/Motel Ice Dispenser. The DB-200H is the perfect 30″ wide ice storage bin and dispenser for many resorts, hotels, and other hospitality services! It boasts a seamless bin linear and Foamed-in-place polyurethane insulation in all of the bin walls including the bottom of the unit providing your operation with maximum ice preservation. The DB-200H features a durable and easy to maintain Stainless Steel exterior cabinet. This model comes Standard with 6″ Painted Flange Legs and the Ice dispensing area is ADA compliant. Single phase, 115v/60/1, Hardwired connection (no cord/plug included), 60 W dispensing gear motor, 1.4 Amps, 3/4″ FPT drain. The unit is NSF, UL Listed, ISO 9001:14001, ADA Compliant and includes a Three Years: Parts & Labor warranty on entire machine. Compatible icemakers/dispensers, sold separately: KML-325M, KM-340M, KM-515M, KML-500M, KML-700M, KM-600M, KM-650M

Additional information

Weight 240 lbs
Dimensions 30 x 30 x 53 in
Height

Width

Depth

Shipping Weight

Certifications:

Energy Star® Qualified:

Electrical Specs:

Ice Storage Capacity:

Compatible Icemakers:

Size Specs:
