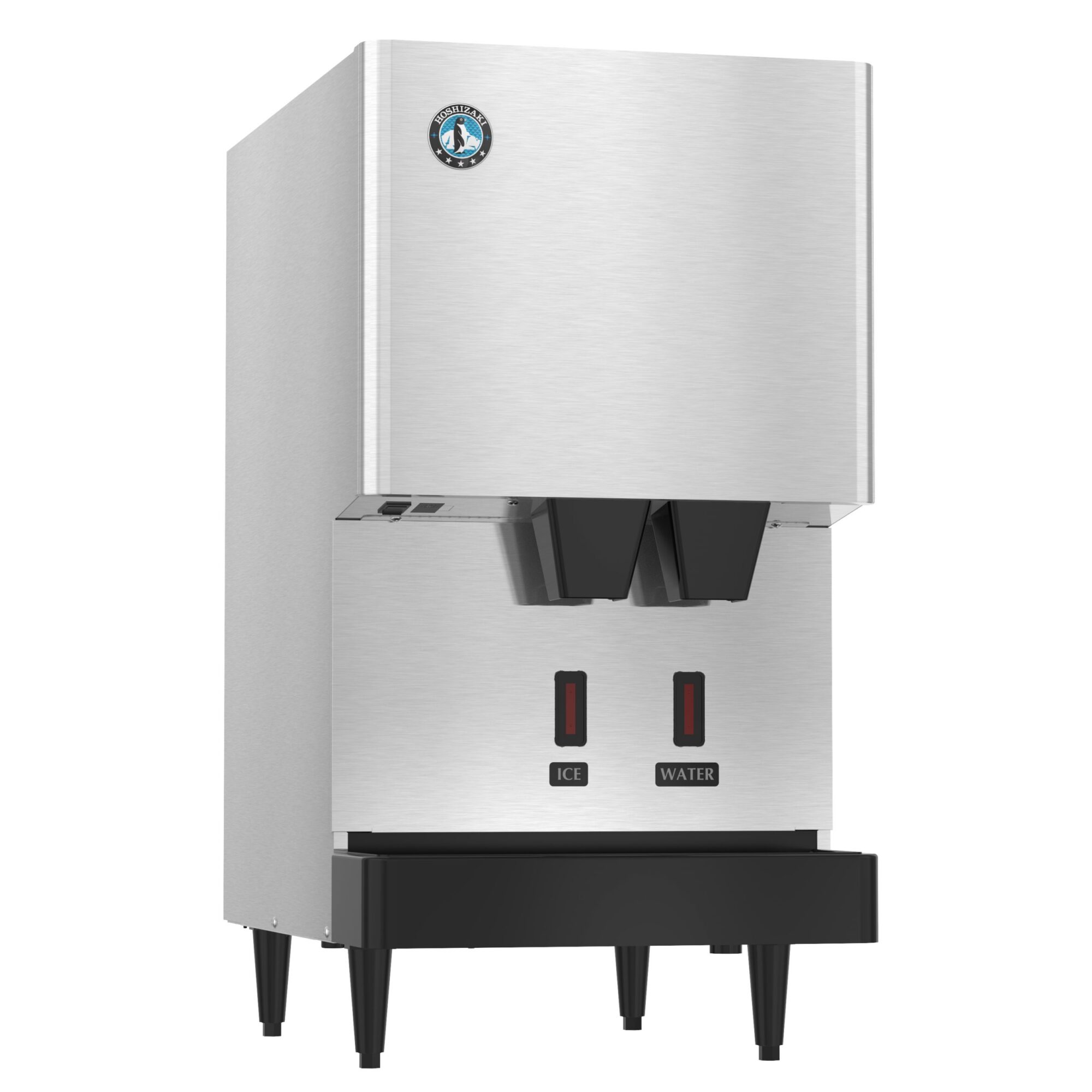

DCM-270BAH-OS, Ice Maker, Air-cooled, Ice and Water Dispenser, Opti-Serve Series

  • Dimensions: 16-9/16″ W x 24-1/8″ D x 31-11/16″ H
  • Up to 288 lbs of ice produced per 24 hours
  • Up to 10 lbs of built-in storage capacity
  • Dispenses cubelet ice and water
  • Durable stainless steel exterior

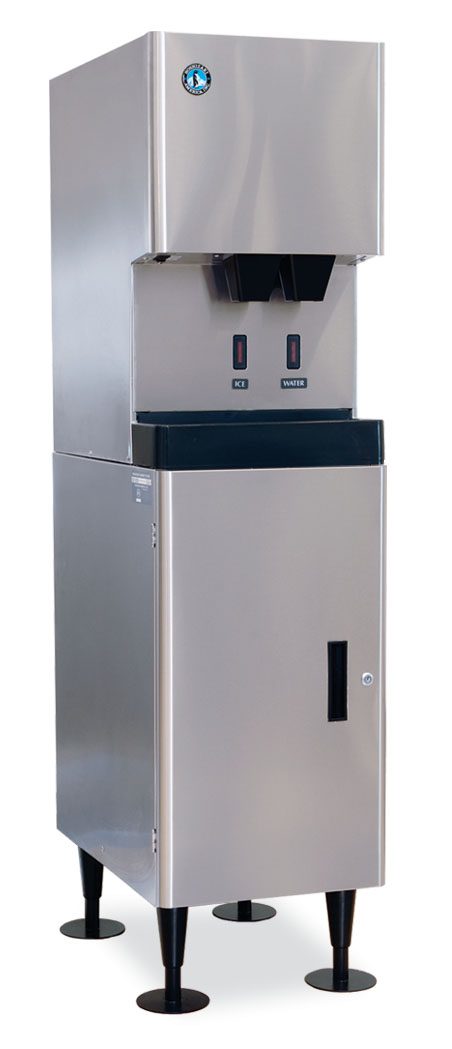

  • Place on countertop or optional stand: SD-270
  • LED remote sensor for hands-free operation with opaque containers
  • CleanCycle12™ – Every 12 hrs, it performs 15 min purge to clean itself
  • R-404a refrigerant
  • Protected by H-GUARD Plus Antimicrobial Agent
  • Ambient temperature range: 45 – 100°F
  • Water temperature range: 45 – 90°F
  • Water pressure: 10 – 113psig
  • Voltage range: 104 – 127V
  • 8.5 amps (15 Amp Max fuse)
  • 7.3 kwh/100 lbs.@ 90/70
  • Single phase, 115v/60/1
  • Clean ice and easy maintenance lead to longer unit life span
  • Three Years: Parts & Labor warranty on entire machine. (Serial numbers VxxxxxJ and after).
  • Five Years: Parts warranty on Compressor, air-cooled condenser coil.



The DCM-270BAH-OS is capable of producing approximately 288 lbs of Cubelet style ice cubes per day, and the built-in storage bin will hold up to 10 lbs of ice at a time. This commercial Air-cooled ice maker has an LED remote sensor for hands-free operation with opaque containers. This sanitary ice maker/dispenser features a user-friendly dispensing mechanism that allows easy to chew, cubelet ice to be dispensed with a simple push of a button. This model features CleanCycle12™ – Every 12 hrs, it performs 15 min purge to clean itself and it is Protected by H-GUARD Plus Antimicrobial Agent. The sanitary dispenser design keeps ice fully contained until it is needed, minimizing the opportunity for cross-contamination and keeping your ice clean. Keep your kitchen running smoothly with this Cubelet Ice and Water Dispenser. Stand not included.


Weight 166 lbs lbs
Dimensions 24-1/8" D x 16-9/16" W x 31-11/16" H in

31-11/16″ H


16- 9/16″ W


24- 1/8 ” D

Shipping Weight

166 lbs


NSF, UL Listed, ISO 9001:14001

Energy Star® Qualified:


Electrical Specs:

Single phase, 115v/60/1 Amperage: 8.5, Max Fuse/HACR Breaker: 15 A

Plumbing Specs:

1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Drain Hard Pipe or Equivalent

Utility Consumption:

7.3 kWh per 100 lbs @ 90/70, 12 gal of Potable Water per 100 lbs @ 90/70

Operating Limits:

Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 104 – 127V
