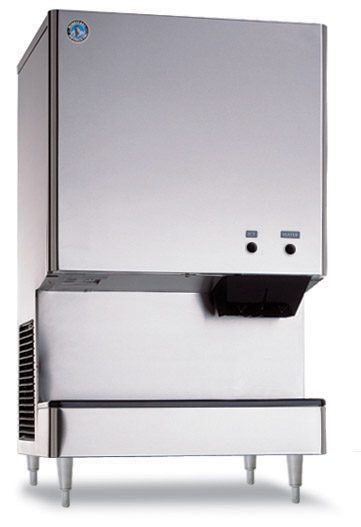

DCM-300BAH, Cubelet Icemaker, Air-cooled, Built in Storage Bin

REQUEST A QUOTE

  • Dimensions: 26″ W x 22-1/2″ D x 40″ H
  • Up to 321 lbs of ice produced per 24 hours
  • Up to 40 lbs of built-in storage capacity (1.3ft3)
  • Produces mini cubelet nugget-style ice
  • Durable stainless steel exterior

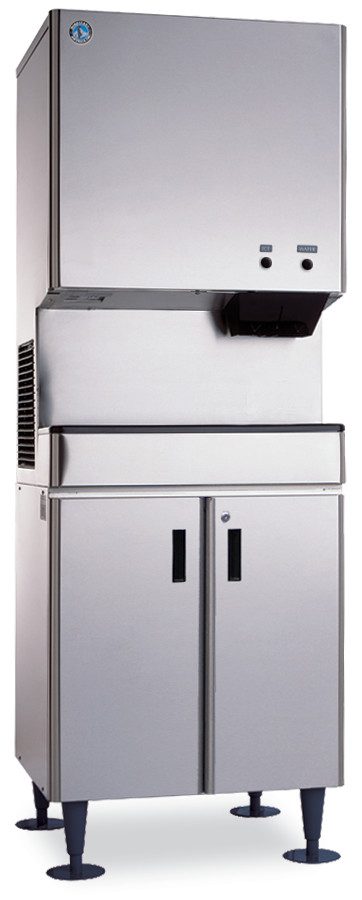

  • Place on countertop or optional stand: SD-450, SD-500
  • Push button operation that dispenses ice or water
  • CleanCycle12™ – Every 12 hrs, it performs 15 min purge to clean itself
  • Protected by H-GUARD Plus Antimicrobial Agent
  • R-404A refrigerant (15.9 oz. / 450 g)
  • Heat Rejection: BTU/hr
  • Ambient temperature range: 45 – 100°F
  • Water temperature range: 45 – 90°F
  • Water pressure: 10 – 113psig
  • Voltage range: 104 – 127V
  • 10.25 amps (20 Amp Max fuse)
  • 7.6 kwh/100 lbs.@ 90/70
  • Single phase, 115v/60/1
  • Clean ice and easy maintenance lead to longer unit life span
  • Three Years: Parts & Labor warranty on entire machine. (Serial numbers VxxxxxJ and after).
  • Five Years: Parts warranty on Compressor, air-cooled condenser coil.

LIBRARY

Description

The DCM-300BAH is capable of producing approximately 321 lbs of Cubelet nugget-style ice cubes per day, The built-in storage bin will hold up to 40 lbs of ice* at a time. This Air-cooled icemaker has an Push button operation that dispenses ice or water. This sanitary icemaker/dispenser features a user-friendly dispensing mechanism that allows easy to chew, cubelet ice to be dispensed with a simple push of a button. This model features CleanCycle12™ – Every 12 hrs, it performs 15 min purge to clean itself and it is Protected by H-GUARD Plus Antimicrobial Agent. The sanitary dispenser design keeps ice fully contained until it is needed, minimizing the opportunity for cross-contamination and keeping your ice clean. Keep your kitchen running smoothly with this Cubelet Ice and Water Dispenser. Stand not included.*Rated in accordance with AHRI Standard 820(I-P). Capacity based on 100% of total volume x 30 lb/ft3 average density of ice.

Additional information

Weight 218 lbs
Dimensions 26" W X 22-1/2" D X 40" H in
Height 40" H
Width 26" W
Depth 22-1/2" D
Shipping Weight 218 lbs
Warranty Valid in United States, Canada, Puerto Rico, & U.S. Territories. Contact factory for warranty in other countries.|Three Years: Parts & Labor warranty on entire machine. (Serial numbers VxxxxxJ and after).|Five Years: Parts warranty on Compressor, air-cooled condenser coil.|
Certifications: NSF, UL Listed, ISO 9001:14001
Energy Star® Qualified: No
Electrical Specs: Single phase, 115v/60/1 , Amperage: 10.25, Max Fuse/HACR Breaker: 20 A
Plumbing Specs: 1/2" FPT Inlet, Minimum 1/4" Nominal ID Copper Water Tubing or Equivalent, 3/4" FPT Outlet, Minimum 3/4" Nominal ID Drain Hard Pipe or Equivalent
Utility Consumption: 7.6 kWh per 100 lbs @ 90/70, 12 gal of Potable Water per 100 lbs @ 90/70
Operating Limits: Ambient Temp Range: 45 - 100°F, Water Temp Range: 45 - 90°F, Water Pressure: 10 - 113psig, Voltage Range: 104 - 127V, Heat Rejection: BTU/hr, Refrigerant Charge: R-404A, (15.9 oz. / 450 g)
