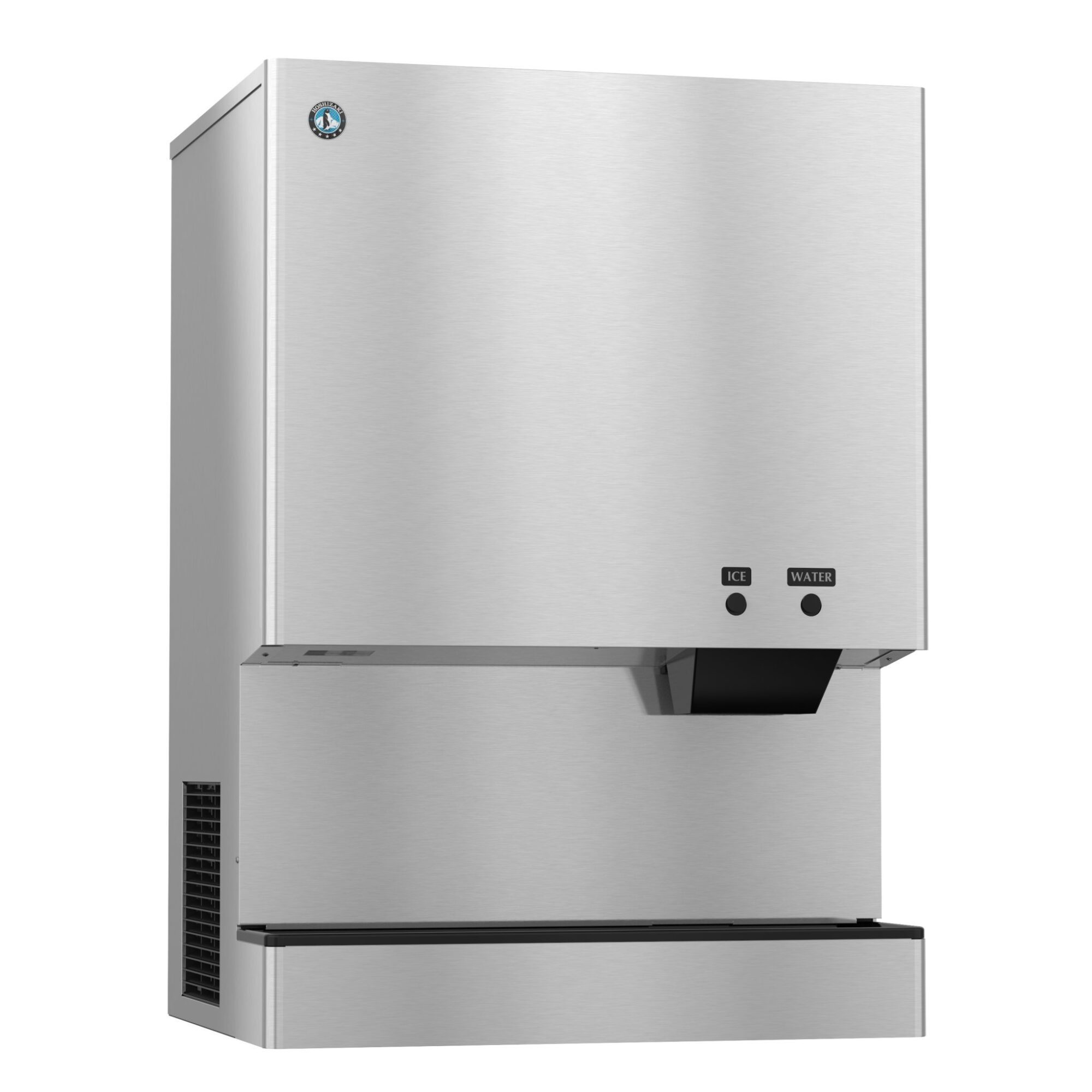

DCM-751BAH, Ice Maker, Air-cooled, Ice and Water Dispenser

  • Dimensions: 34-1/16″ W x 28-1/2″ D x 48-1/16″ H
  • Up to 801 lbs of ice produced per 24 hours
  • Up to 70 lbs of built-in storage capacity
  • Dispenses cubelet ice and water
  • Durable stainless steel exterior

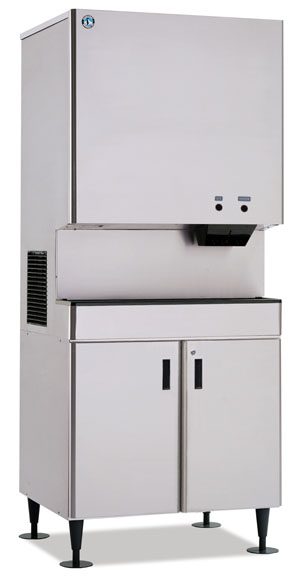

  • Place on countertop or optional stand: SD-700, SD-750
  • Push button operation that dispenses ice or water
  • CleanCycle12™ – Every 12 hrs, it performs 15 min purge to clean itself
  • R-404a refrigerant
  • Protected by H-GUARD Plus Antimicrobial Agent
  • Ambient temperature range: 45 – 100°F
  • Water temperature range: 45 – 90°F
  • Water pressure: 10 – 113psig
  • Voltage range: 104 – 127V
  • 18.3 amps (20 Amp Max fuse)
  • 5.94 kwh/100 lbs.@ 90/70
  • Single phase, 115v/60/1
  • Clean ice and easy maintenance lead to longer unit life span
  • Three Years: Parts & Labor warranty on entire machine. (Serial numbers VxxxxxJ and after).
  • Five Years: Parts warranty on Compressor, air-cooled condenser coil.



The DCM-751BAH is capable of producing approximately 801 lbs of Cubelet style ice cubes per day, and the built-in storage bin will hold up to 70 lbs of ice at a time. This commercial Air-cooled ice maker has an Push button operation that dispenses ice or water. This sanitary ice maker/dispenser features a user-friendly dispensing mechanism that allows easy to chew, cubelet ice to be dispensed with a simple push of a button. This model features CleanCycle12™ – Every 12 hrs, it performs 15 min purge to clean itself and it is Protected by H-GUARD Plus Antimicrobial Agent. The sanitary dispenser design keeps ice fully contained until it is needed, minimizing the opportunity for cross-contamination and keeping your ice clean. Keep your kitchen running smoothly with this Cubelet Ice and Water Dispenser. Stand not included.


Weight 345 lbs lbs
Dimensions 28-1/2" D x 34-1/16" W x 48-1/16" H in

48- 1/16″ H


34- 1/16″ W


28- 1/2 ” D

Shipping Weight

345 lbs


NSF, UL Listed, ISO 9001:14001

Energy Star® Qualified:


Electrical Specs:

Single phase, 115v/60/1 Amperage: 18.3, Max Fuse/HACR Breaker: 20 A

Plumbing Specs:

1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Drain Hard Pipe or Equivalent

Utility Consumption:

5.94 kWh per 100 lbs @ 90/70, 12 gal of Potable Water per 100 lbs @ 90/70

Operating Limits:

Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 104 – 127V
