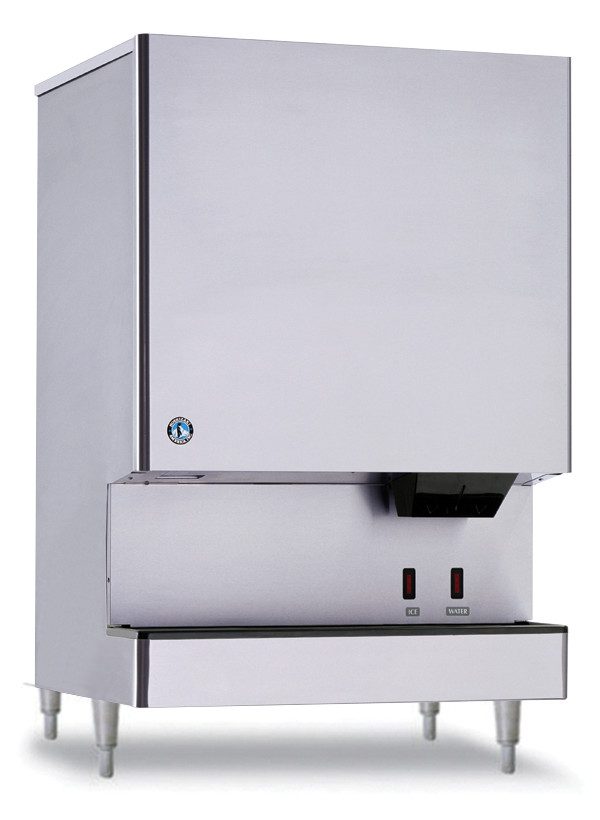

DCM-751BWH-OS, Ice Maker, Water-cooled, Ice and Water Dispenser, Opti-Serve Series

REQUEST A QUOTE

  • Dimensions: 34-1/16″ W x 28-1/2″ D x 48-1/16″ H
  • Up to 782 lbs of ice produced per 24 hours
  • Up to 70 lbs of built-in storage capacity (3.2ft3)
  • Dispenses cubelet ice and water
  • Durable stainless steel exterior

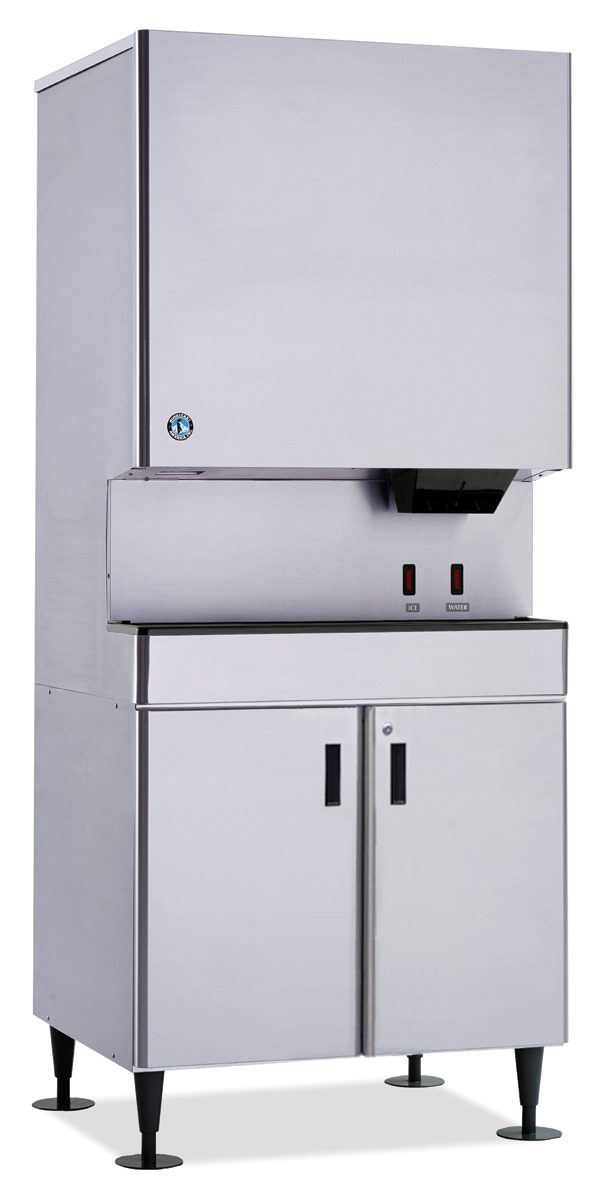

  • Place on countertop or optional stand: SD-700, SD-750
  • LED remote sensor for hands-free operation with opaque containers
  • CleanCycle12™ – Every 12 hrs, it performs 15 min purge to clean itself
  • R-404a refrigerant (1 lb. 2.7 oz. / 530 g)
  • Protected by H-GUARD Plus Antimicrobial Agent
  • Ambient temperature range: 45 – 100°F
  • Water temperature range: 45 – 90°F
  • Water pressure: 10 – 113psig
  • Voltage range: 104 – 127V
  • 17.3 amps (20 Amp Max fuse)
  • 4.76 kwh/100 lbs.@ 90/70
  • Single phase, 115v/60/1
  • Clean ice and easy maintenance lead to longer unit life span
  • Three Years: Parts & Labor warranty on entire machine. (Serial numbers VxxxxxJ and after).
  • Five Years: Parts warranty on Compressor, air-cooled condenser coil.

LIBRARY

Description

The DCM-751BWH-OS is capable of producing approximately 782 lbs of Cubelet style ice cubes per day, and the built-in storage bin will hold up to 70 lbs of ice* at a time. This commercial Water-cooled ice maker has an LED remote sensor for hands-free operation with opaque containers. This sanitary ice maker/dispenser features a user-friendly dispensing mechanism that allows easy to chew, cubelet ice to be dispensed with a simple push of a button. This model features CleanCycle12™ – Every 12 hrs, it performs 15 min purge to clean itself and it is Protected by H-GUARD Plus Antimicrobial Agent. The sanitary dispenser design keeps ice fully contained until it is needed, minimizing the opportunity for cross-contamination and keeping your ice clean. Keep your kitchen running smoothly with this Cubelet Ice and Water Dispenser. Stand not included.*Rated in accordance with AHRI Standard 820(I-P). Capacity based on 100% of total volume x 30 lb/ft3 average density of ice.

Additional information

Weight 345 lbs
Dimensions 28-12 x 34-116 x 48-116 in
Height

Width

Depth

Shipping Weight

Certifications:

Energy Star® Qualified:

Electrical Specs:

Plumbing Specs:

Utility Consumption:

Operating Limits:
