  • DKM-500BAJ
  • Air-cooled
  • 3 Phase
  • Crescent Ice
  • Crescent Ice
  • KMIce-TeaGlass
  • KMIce-IcedCoffee

ADD TO COMPARE

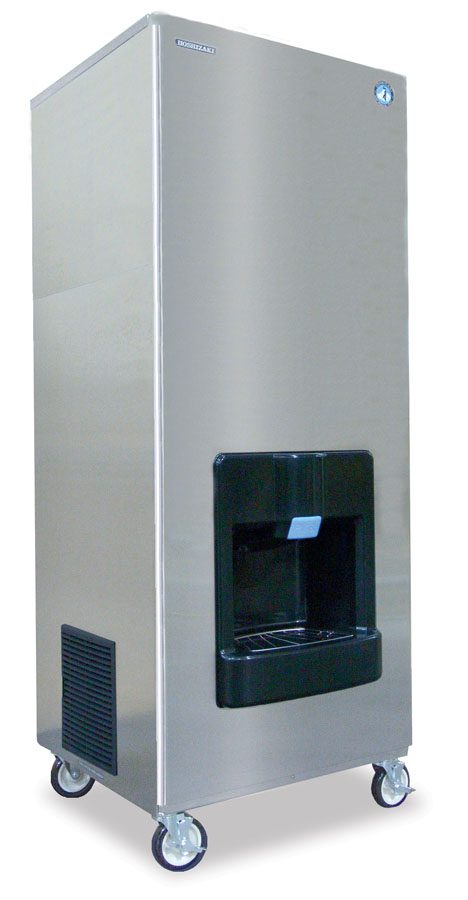

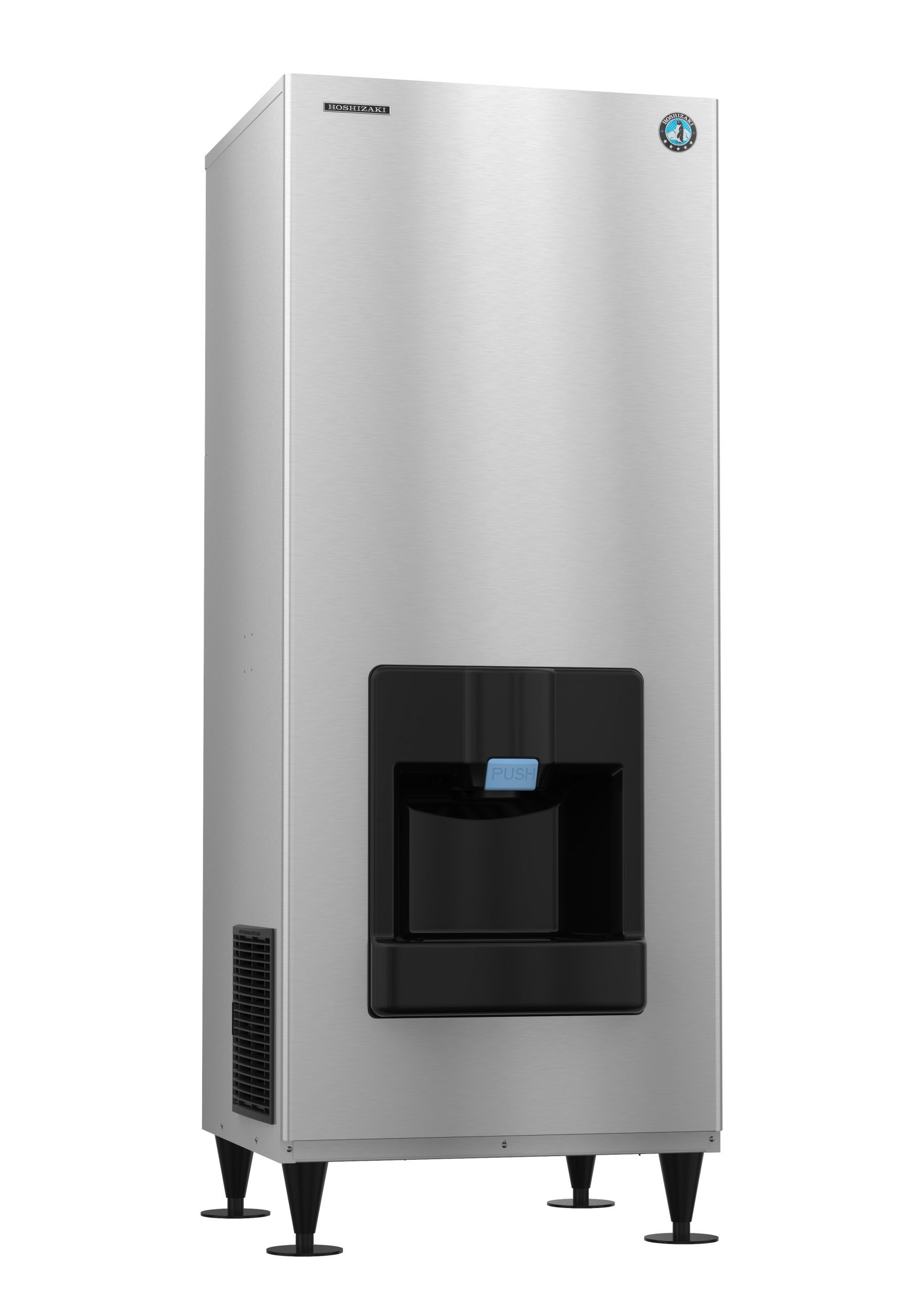

DKM-500BAJ, Ice Maker, Air-cooled, Serenity Series, Ice Machine and Dispenser

  • Dimensions: 30″ W x 28″ D x 77″ H
  • Up to 545 lbs of ice produced per 24 hours
  • Up to 140 lbs of built-in storage capacity
  • Push button operated, 13 lbs of crescent cube icemin
  • Durable, attractive one piece stainless steel exterior
  • 35% quieter compared to other hotel dispensers
  • Ice dispensing height is ADA compliant
  • CycleSaver™ design
  • R-404a refrigerant
  • Protected by H-GUARD Plus Antimicrobial Agent
  • Ambient temperature range: 45 – 100°F
  • Water temperature range: 45 – 90°F
  • Water pressure: 10 – 113psig
  • Voltage range: 104 – 127V
  • 13.5 amps (20 Amp Max fuse)
  • 5.56 kwh/100 lbs.@ 90/70
  • Single phase, 115v/60/1
  • ENERGY STAR Qualified
  • Three Years: Parts & Labor warranty on entire machine.
  • Five Years: Parts warranty on Hermetic compressor, air-cooled fin and tube type condenser.

LIBRARY

DESCRIPTION

The DKM-500BAJ is capable of producing approximately 545 lbs of Crescent style ice cubes per day, and the built-in dispensing system holds up to 140 lbs of insulated storage to ensure you always have enough ice on hand! This commercial Air-cooled ice maker is the only one-piece dispenser design on the market! This makes it easy to install and service, and a quiet operating system makes it ideal for use in hotels and similar applications. Ice dispensing height is ADA compliant and is Protected by H-GUARD Plus Antimicrobial Agent. This sanitary ice maker/dispenser features a user-friendly dispensing mechanism that allows clean, individual, crescent ice cubes to be dispensed with a simple push of a button. This model features CycleSaver™ design and is ENERGY STAR Qualified. The DKM-500BAJ requires a Single phase, 115v/60/1 electrical connection and comes with a cord and plug. Please consult the Specification Sheet for additional details.

SPECIFICATIONS

Weight 410 lbs lbs
Dimensions 28" D x 30" W x 77" H in
Height

77″ H

Width

30″ W

Depth

28″ D

Shipping Weight

410 lbs

Certifications:

AHRI Standard 810, NSF, UL Listed, ISO 9001:14001, ADA Compliant, ENERGY STAR Qualified

Energy Star® Qualified:

Yes

Electrical Specs:

Single phase, 115v/60/1 , Amperage: 13.5, Max Fuse/HACR Breaker: 20 A

Plumbing Specs:

1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT x2 Drain, Minimum 3/4″ Nominal ID Drain Hard Pipe or Equivalent

Utility Consumption:

5.56 kWh per 100 lbs @ 90/70, 16.6 gal of Potable Water per 100 lbs @ 90/70

Operating Limits:

Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 104 – 127V
