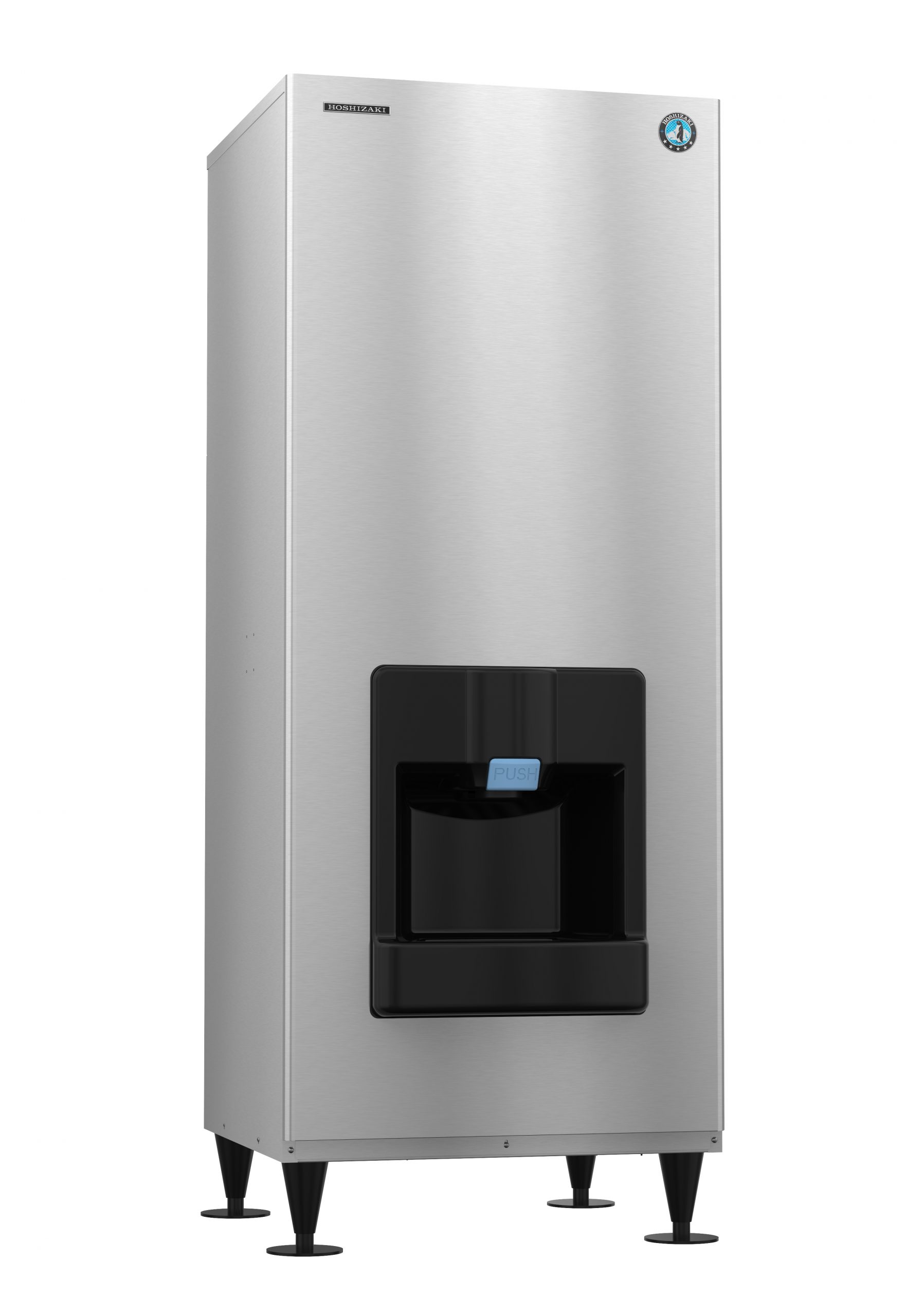

DKM-500BWJ, Crescent Cuber Icemaker, Water-cooled, Built in Storage Bin

REQUEST A QUOTE

  • Dimensions: 30″ W x 28″ D x 77″ H
  • Up to 540 lbs of ice produced per 24 hours
  • Up to 140 lbs of built-in storage capacity (6.7ft3)
  • Push button operated, 13 lbs of crescent cube icemin
  • Durable, attractive one piece stainless steel exterior
  • 35% quieter compared to other hotel dispensers
  • Ice dispensing height is ADA compliant
  • CycleSaver™ design
  • Protected by H-GUARD Plus Antimicrobial Agent
  • R-404A refrigerant (1 lb. 2 oz. / 510 g)
  • Heat Rejection: BTU/hr
  • Ambient temperature range: 45 – 100°F
  • Water temperature range: 45 – 90°F
  • Water pressure: 10 – 113psig
  • Voltage range: 104 – 127V
  • 12 amps (20 Amp Max fuse)
  • 4.79 kwh/100 lbs.@ 90/70
  • Single phase, 115v/60/1
  • Clean ice and easy maintenance lead to longer unit life span
  • Three Years: Parts & Labor warranty on entire machine.
  • Five Years: Parts warranty on Hermetic compressor, air-cooled fin and tube type condenser.

LIBRARY

Description

The DKM-500BWJ is capable of producing approximately 540 lbs of Crescent style ice cubes per day, and the built-in dispensing system holds up to 140 lbs in insulated storage* to ensure you always have enough ice on hand! This commercial Water-cooled icemaker is the only one-piece dispenser design on the market! This makes it easy to install and service, and a quiet operating system makes it ideal for use in hotels and similar applications. Ice dispensing height is ADA compliant and is Protected by H-GUARD Plus Antimicrobial Agent. This sanitary icemaker/dispenser features a user-friendly dispensing mechanism that allows clean, individual, crescent ice cubes to be dispensed with a simple push of a button. This model features CycleSaver™ design and is Clean ice and easy maintenance lead to longer unit life span. The DKM-500BWJ requires a Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included. electrical connection and comes with a cord and plug. Please consult the Specification Sheet for additional details.*Rated in accordance with AHRI Standard 820(I-P). Capacity based on 100% of total volume x 30 lb/ft3 average density of ice.

Additional information

Weight 372 lbs
Dimensions 30" W X 28" D X 77" H in
Height 77" H
Width 30" W
Depth 28" D
Shipping Weight 372 lbs
Warranty Valid in United States, Canada, Puerto Rico, & U.S. Territories. Contact factory for warranty in other countries.|Three Years: Parts & Labor warranty on entire machine.|Five Years: Parts warranty on Hermetic compressor, air-cooled fin and tube type condenser.|
Certifications: AHRI Standard 810, NSF, UL Listed, ISO 9001:14001, ADA Compliant
Energy Star® Qualified: No
Electrical Specs: Single phase, 115v/60/1 , Amperage: 12, Max Fuse/HACR Breaker: 20 A
Plumbing Specs: 1/2" FPT Inlet, Minimum 1/4" Nominal ID Copper Water Tubing or Equivalent, 3/8" FPT x2 Drain, Minimum 1/4" Nominal ID Drain Hard Pipe or Equivalent, Minimum 1/4" Nominal ID Copper Water Tubing or Equivalent
Utility Consumption: 4.79 kWh per 100 lbs @ 90/70, 18 gal of Potable Water per 100 lbs @ 90/70
Operating Limits: Ambient Temp Range: 45 - 100°F, Water Temp Range: 45 - 90°F, Water Pressure: 10 - 113psig, Voltage Range: 104 - 127V, Heat Rejection: BTU/hr, Refrigerant Charge: R-404A, (1 lb. 2 oz. / 510 g)
