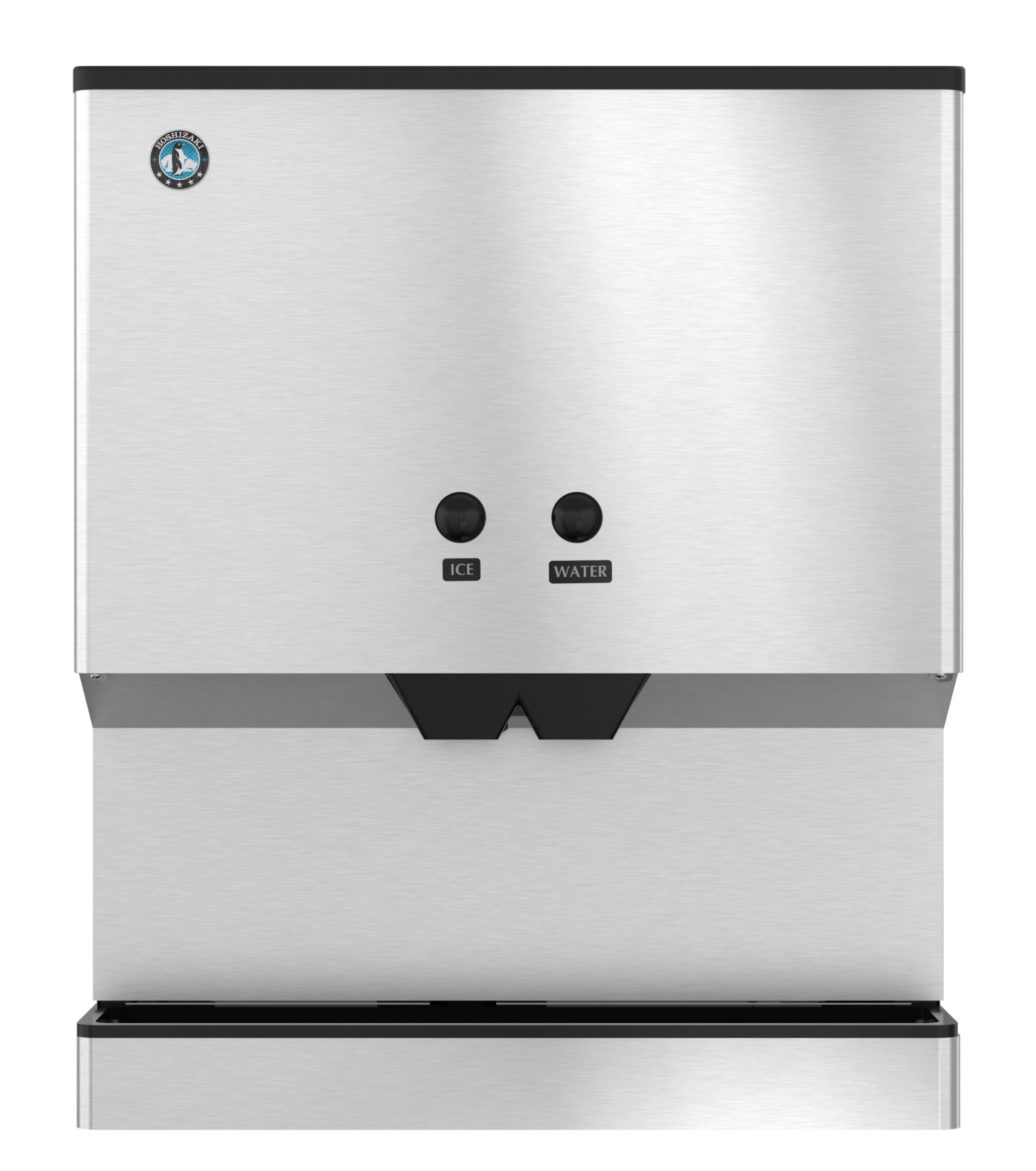

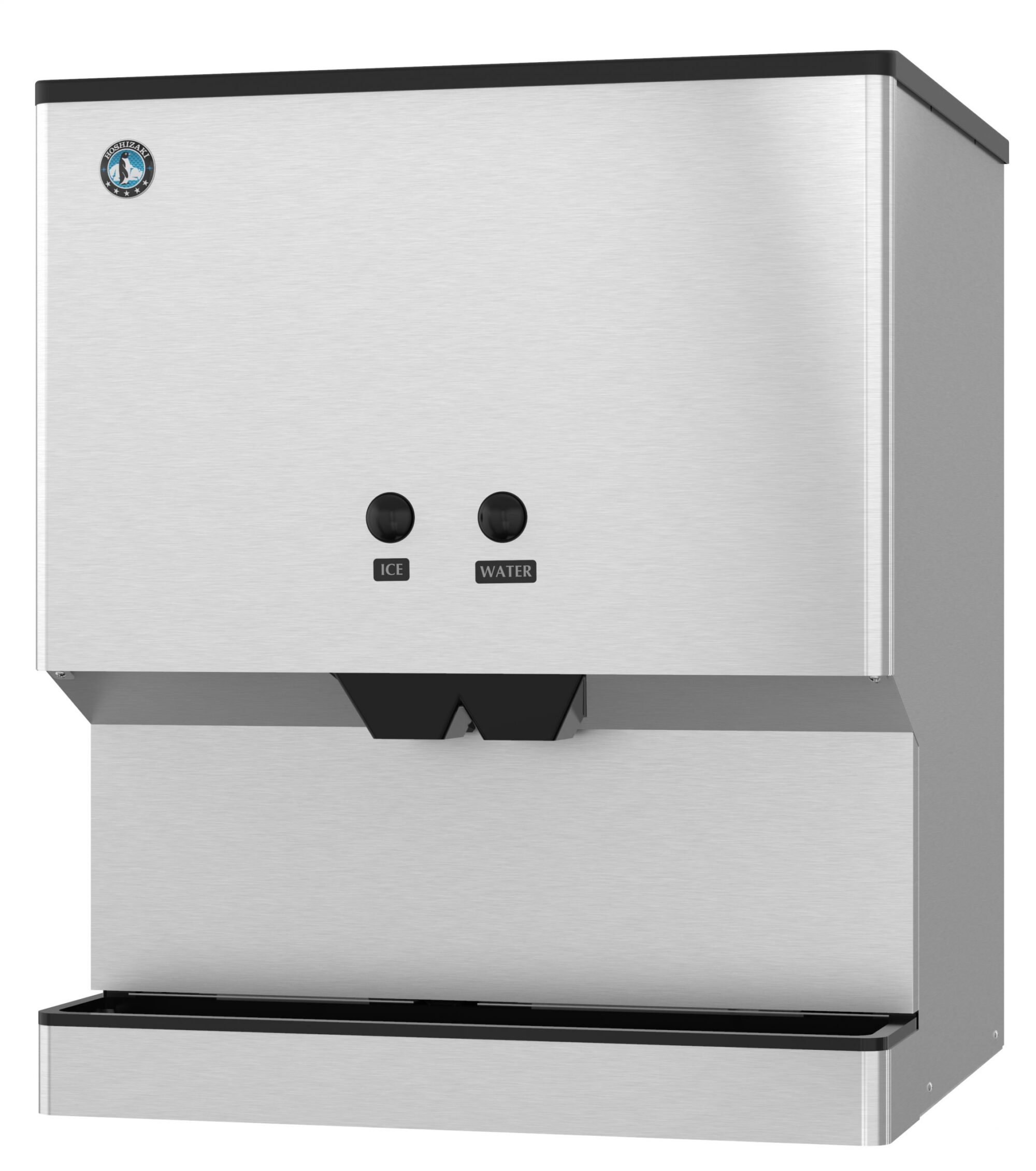

DM-200B, 30″ W Ice and Water Dispenser – Stainless Steel Exterior

  • Dimensions: 30″ W x 28″ D x 36- 3/8 ” H
  • Stores up to 140 lbs of ice
  • Dispenses ice and water with the touch of a button
  • Single phase, 115v/60/1
  • Push button unique auger agitator design dispenses 7.5 lbs. of ice per minute
  • Foamed-in-place polyurethane insulation
  • Countertop installation, 4″ legs or stand sold separately.

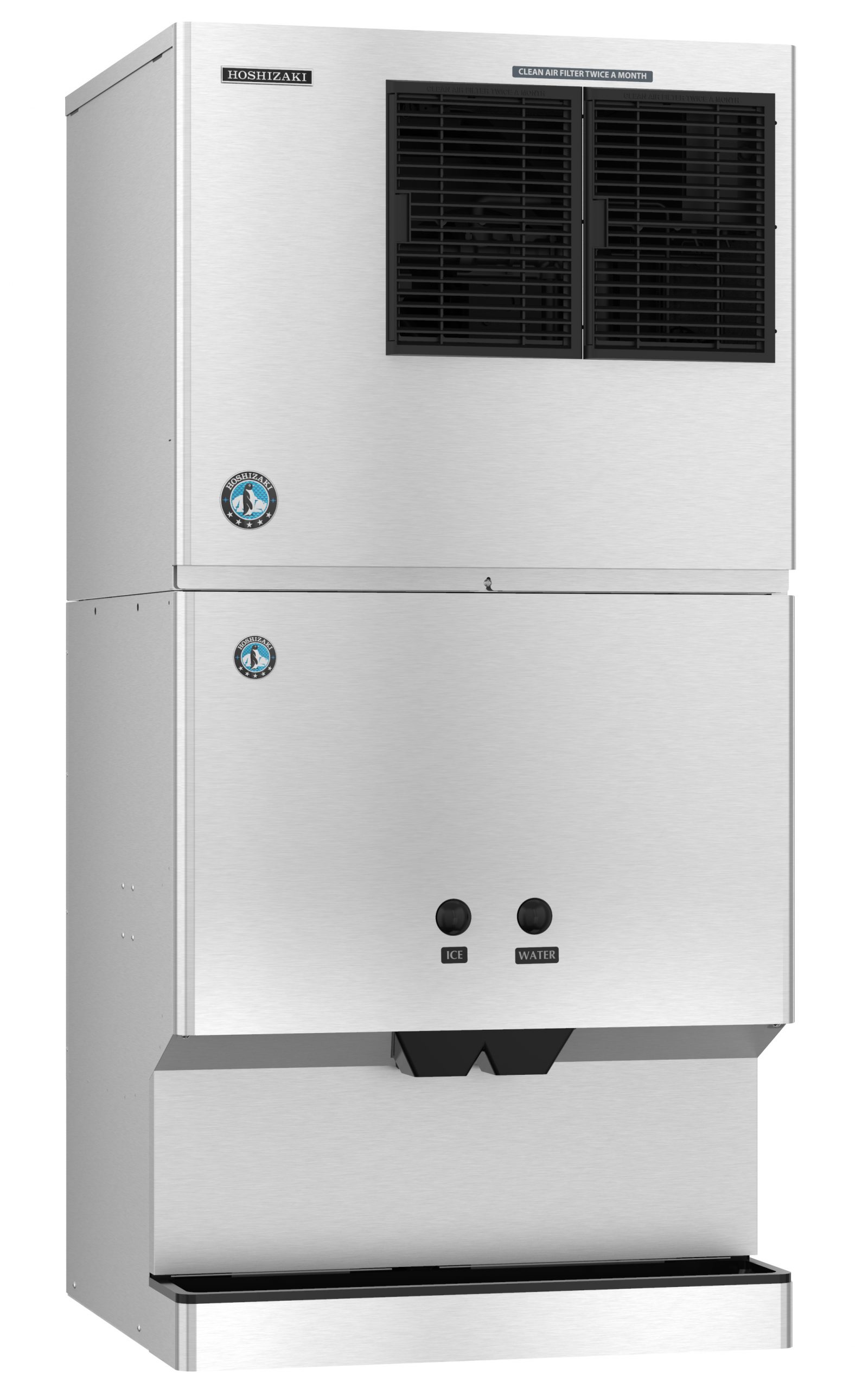

  • Accommodates ice machine (sold separately) or manual fill
  • Fills large cups quickly
  • Top Kit (HS-2036) – to accommodate KM-340M, KM-515M or KM-650M
    ice machines
  • 4″ Die-Cast Legs – (DM LEGS) optional
  • SD-200 Machine Stand optional
  • 115v/60/1, 1.4 Amps, Min. Circuit Ampacity: 15A, 1/2″ FPT water inlet and 3/4″ FPT drain
  • Weight: 240
  • Two Years: Parts & Labor warranty on entire machine
SKU: DM-200B Categories: , , , ,

LIBRARY

DESCRIPTION

Safely store up to 240 lbs of ice with this DM-200B 30″ ice storage bin & dispenser! It boasts foamed-in-place polyurethane insulation in all of the bin walls and the bottom of the unit to provide you with maximum ice preservation. The DM-200B features a durable cabinet with a seamless, easy to clean, polyethylene bin liner. This model comes 4″ Die-Cast Legs – (DM LEGS) optional and a Fills large cups quickly. 115v/60/1, 1.4 Amps, Min. Circuit Ampacity: 15A, 1/2″ FPT water inlet and 3/4″ FPT drain. The unit is NSF, UL Listed, ISO 9001:14001 and includes a Two Years: Parts & Labor warranty on entire machine.Compatible icemakers/dispensers, sold separately: KML-250M, KM-340M, KM-515M, KML-351M, KML-451M, KML-631M, KM-600M, KM-650M.

SPECIFICATIONS

Weight 140 lbs lbs
Dimensions 28" D x 30" W x 36- 3/8 " H in
Height

36- 3/8 ” H

Width

30″ W

Depth

28″ D

Shipping Weight

140 lbs

Certifications:

NSF, UL Listed, ISO 9001:14001

Energy Star® Qualified:

No

Electrical Specs:

Single phase, 115v/60/1 Amperage: 1.4, Max Fuse/HACR Breaker: 15 A

Ice Storage Capacity:

200 lbs, AHRI-Rated Capacity: 90 lbs

Compatible Icemakers:

KM-340M, KM-515M, KM-600M, KM-650M, KML-250M, KML-351M, KML-451M, KML-631M

Size Specs:

Dimensions: 30″ W x 28″ D x 36- 3/8 ” H, Shipping Weight: 240 lbs
