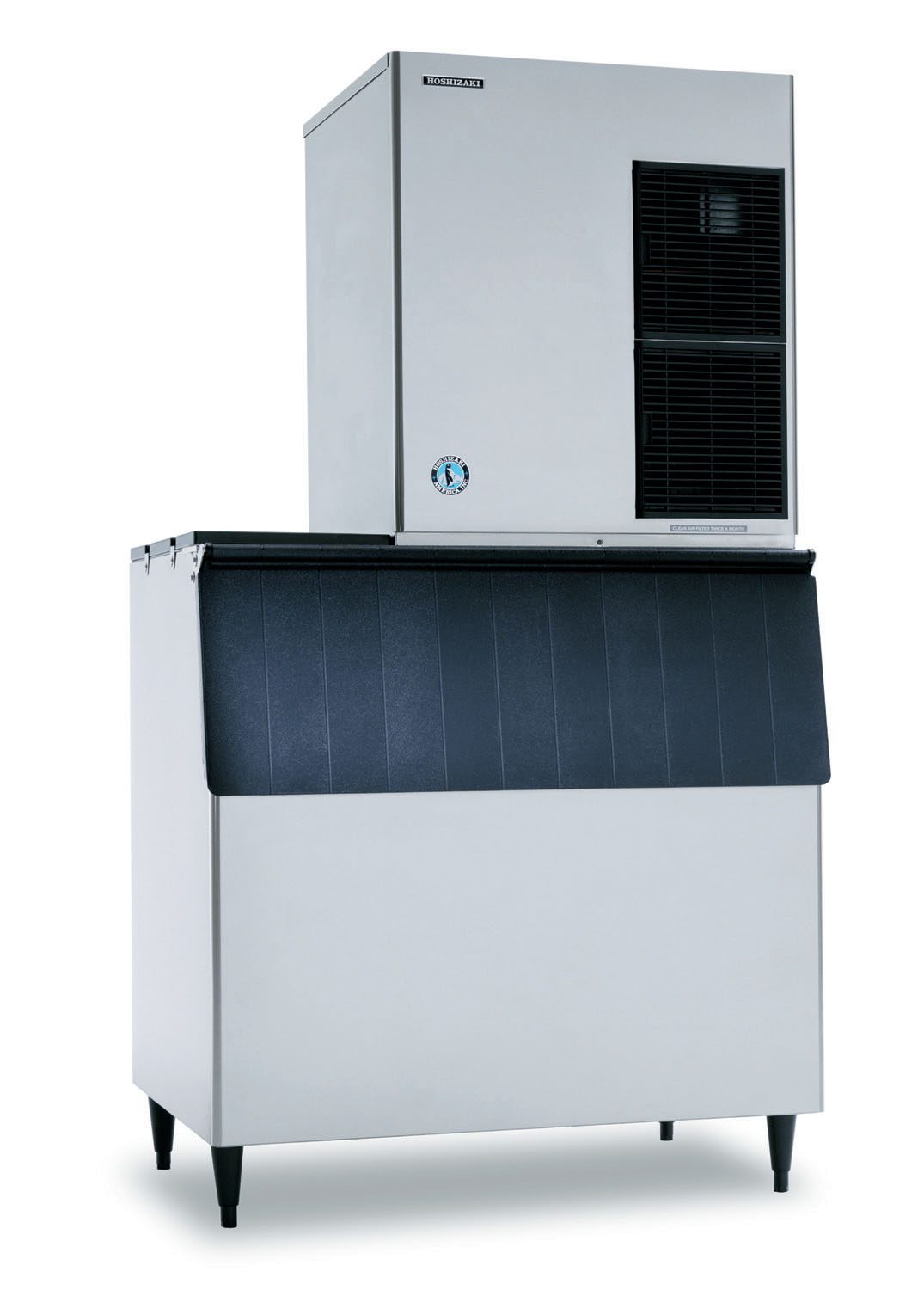

Name: F-1501MAJ-C, Ice Maker, Air-cooled, Modular
SKU: F-1501MAJ-C
Availability: InStock

SPEC SHEET

F-1501MAJ-C, Ice Maker, Air-cooled, Modular

REQUEST A QUOTE

Dimensions: 30″ W x 27-3/8″ D x 34-7/16″ H
Up to 1327 lbs of ice produced per 24 hours
Mount 2 units side-by-side for 2x the ice production

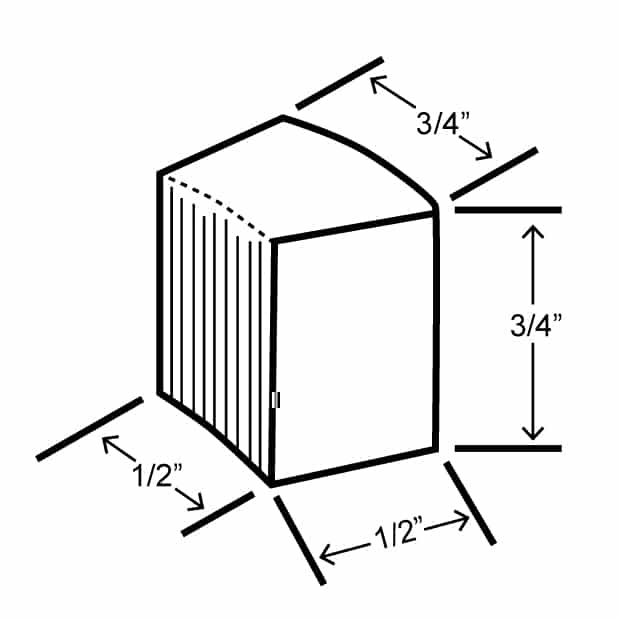

Produces medium cubelet nugget-style ice
Durable stainless steel exterior
Compatible bins & dispensers, sold separately: B-250, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650
2 second rinse every hour to remove sediment
Advanced CleanCycle24™ design
R-404A refrigerant (2 lbs. 5 oz. / 1050 g)
Infrared bin control for easy cleaning and reliability
Ambient temperature range: 45 – 100°F
Water temperature range: 45 – 90°F
Water pressure: 10 – 113psig
Voltage range: 187 – 253V
15.9 amps (20 Amp Max fuse)
4.61 kwh/100 lbs.@ 90/70
Single phase, 208-230v/60/1
Clean ice and easy maintenance lead to longer unit life span
Three Years: Parts & Labor warranty on entire machine. (Serial numbers VxxxxxJ and after).
Five Years: Parts warranty on Compressor, air-cooled condenser coil.

SKU: F-1501MAJ-C Categories: Ice, Ice Maker, Cubelet, Air-Cooled, Modular

LIBRARY

Service Literature

Specification Sheet Instruction Manual Parts Manual Service Manual CAD/Revit Files Warranty Statement

Sales Literature

Price List Sales Catalog Sales Brochure

Description

The F-1501MAJ-C is capable of producing approximately 1327 lbs of cubelet (nugget-style) ice per day. Cubelet ice is the most popular ice for drinks – as it cools the beverage quickly and absorbs the flavor making an easy-to-chew treat. This Air-cooled, Modular ice maker features the Advanced CleanCycle24™ design plus a greaseless bearing auger construction making it simple to maintain. The F-1501MAJ-C requires a Single phase, 208-230v/60/1 electrical connection that is hard-wired at the installation site. Compatible bins & dispensers, sold separately: B-250, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650. Please consult the Specification Sheet for additional details.

Additional information

Weight	325 lbs
Dimensions	27-38 x 30 x 34-716 in
Height	34-7/16" H
Width	30" W
Depth	27-3/8" D
Shipping Weight	325 lbs
Certifications:	AHRI Standard 810, NSF, UL Listed, ISO 9001:14001
Energy Star® Qualified:	No
Electrical Specs:	Single phase, 208-230v/60/1 , Amperage: 15.9, Max Fuse/HACR Breaker: 20 A
Plumbing Specs:	1/2" FPT Inlet, Minimum 1/4" Nominal ID Copper Water Tubing or Equivalent, 3/4" FPT Outlet, Minimum 3/4" Nominal ID Hard Pipe or Equivalent
Utility Consumption:	4.61 kWh per 100 lbs @ 90/70, 12 gal of Potable Water per 100 lbs @ 90/70
Operating Limits:	Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 187 – 253V, Refrigerant Charge: R-404a, (2 lbs. 5 oz. / 1050 g)
