  • F-1501MRJ-C
  • Remote-cooled with URC-14FE (Sold Separately)
  • Cubelet-Ice-Dimensions-95dia.jpg
  • CubeletIce-Healthcare.jpg
  • CubeletCups-NoStraws

ADD TO COMPARE

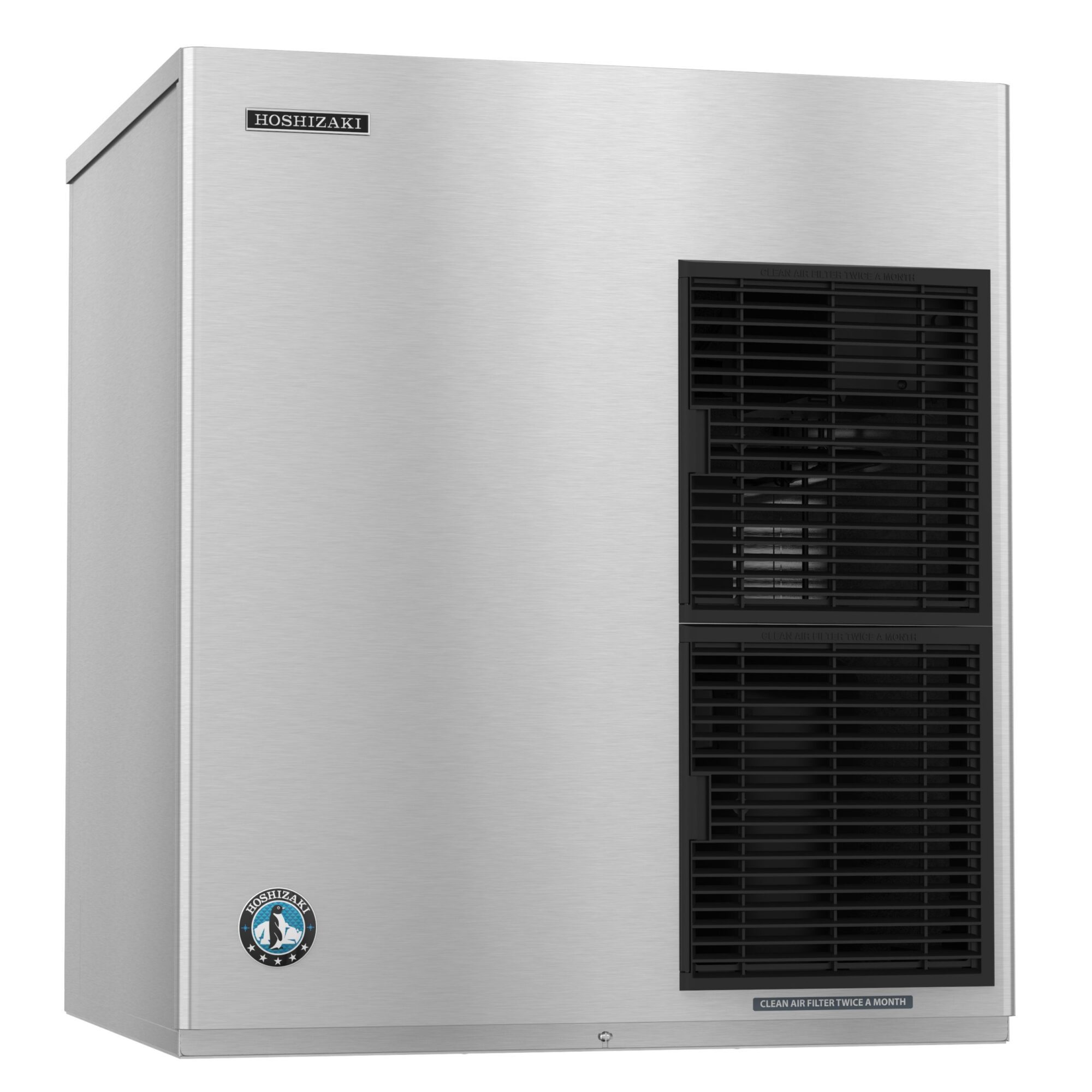

F-1501MRJ-C with URC-14F, Ice Maker, Remote-cooled with URC-14F (Sold Separately)

  • Dimensions: 30″ W x 27-3/8″ D x 34-7/16″ H
  • Up to 1335 lbs of ice produced per 24 hours
  • Mount 2 units side-by-side for 2x the ice production
  • Produces cubelet ice
  • Durable stainless steel exterior
  • Compatible bins & dispensers, sold separately: B-250, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650
  • 2 second rinse every hour to remove sediment
  • Advanced CleanCycle24™ design
  • R-404a refrigerant
  • Infrared bin control for easy cleaning and reliability
  • Ambient temperature range: 45 – 100°F
  • Water temperature range: 45 – 90°F
  • Water pressure: 10 – 113psig
  • Voltage range: 187 – 253V
  • 18.4 amps (20 Amp Max fuse)
  • 4.35 kwh/100 lbs.@ 90/70
  • Single phase, 208-230v/60/1
  • ENERGY STAR Qualified
  • Three Years: Parts & Labor warranty on entire machine. (Serial numbers VxxxxxJ and after).
  • Five Years: Parts warranty on Compressor, air-cooled condenser coil.
SKU: F-1501MRJ-C Categories: , , , ,

LIBRARY

DESCRIPTION

The F-1501MRJ-C is capable of producing approximately 1335 lbs of cubelet ice per day. Cubelet ice is the most popular ice for drinks – as it cools the beverage quickly and absorbs the flavor making an easy-to-chew treat. This Remote-cooled with URC-14F (Sold Separately) ice maker features the Advanced CleanCycle24™ design plus a greaseless bearing auger construction making it simple to maintain. The F-1501MRJ-C requires a Single phase, 208-230v/60/1 electrical connection that is hard-wired at the installation site. Remote condenser sold separately. Compatible bins & dispensers, sold separately: B-250, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650. ENERGY STAR qualified. Please consult the Specification Sheet for additional details.

SPECIFICATIONS

Weight 325 lbs lbs
Dimensions 27-3/8" D x 30" W x 34-7/16" H in
Height

34- 7/16″ H

Width

30″ W

Depth

27- 3/8 ” D

Shipping Weight

325 lbs

Certifications:

AHRI Standard 810, NSF, UL Listed, ISO 9001:14001, ENERGY STAR Qualified

Energy Star® Qualified:

Yes

Electrical Specs:

Single phase, 208-230v/60/1 , Amperage: 18.4, Max Fuse/HACR Breaker: 20 A

Plumbing Specs:

1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Hard Pipe or Equivalent

Utility Consumption:

4.35 kWh per 100 lbs @ 90/70, 12 gal of Potable Water per 100 lbs @ 90/70

Operating Limits:

Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 187 – 253V
