  • F-1501MRJ-C
  • Remote-cooled with URC-14FE (Sold Separately)
  • Built in Storage Bin
  • Flaker Ice
  • FlakedIce-Beverage.jpg
  • FlakeIceSeafood
  • FlakeIceVeggies
  • ShrimpCocktail

ADD TO COMPARE

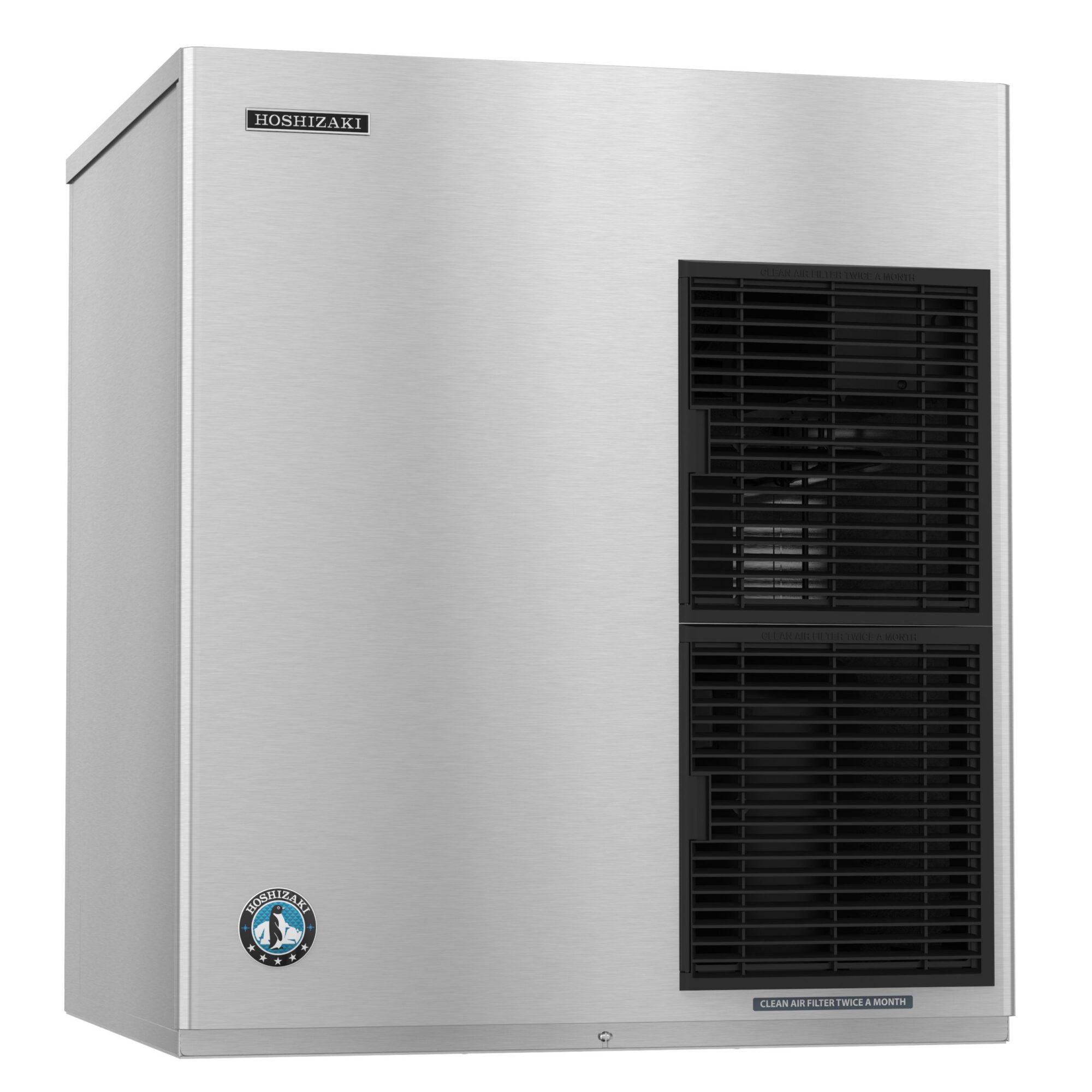

F-1501MRJ with URC-14F, Ice Maker, Remote-cooled with URC-14F (Sold Separately)

  • Dimensions: 30″ W x 27-3/8″ D x 34-7/16″ H
  • Up to 1705 lbs of ice produced per 24 hours
  • Mount units side-by-side for x the ice production
  • Produces flaked ice
  • Durable stainless steel exterior
  • Compatible bins & dispensers, sold separately: B-250, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650
  • 2 second rinse every hour to remove sediment
  • Advanced CleanCycle24™ design
  • R-404a refrigerant
  • Infrared bin control for easy cleaning and reliability
  • Ambient temperature range: 45 – 100°F
  • Water temperature range: 45 – 90°F
  • Water pressure: 10 – 113psig
  • Voltage range: 187 – 253V
  • 18.4 amps (20 Amp Max fuse)
  • 3.44 kwh/100 lbs.@ 90/70
  • Single phase, 208-230v/60/1
  • ENERGY STAR Qualified
  • Three Years: Parts & Labor warranty on entire machine. (Serial numbers VxxxxxJ and after).
  • Five Years: Parts warranty on Compressor, air-cooled condenser coil.
SKU: F-1501MRJ Categories: , , , ,

LIBRARY

DESCRIPTION

The F-1501MRJ is capable of producing approximately 1705 lbs of flaked ice per day. Flaked ice is perfect for salad bars, seafood counters, and other food displays that require long lasting sanitary ice. This Remote-cooled with URC-14F (Sold Separately) ice maker features the Advanced CleanCycle24™ design plus a greaseless bearing auger construction making it simple to maintain. The F-1501MRJ requires a Single phase, 208-230v/60/1 electrical connection that is hard-wired at the installation site. Remote condenser sold separately. Compatible bins & dispensers, sold separately: B-250, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650. ENERGY STAR qualified. Please consult the Specification Sheet for additional details.

SPECIFICATIONS

Weight 325 lbs lbs
Dimensions 27-3/8" D x 30" W x 34-7/16" H in
Height

34- 7/16″ H

Width

30″ W

Depth

27- 3/8 ” D

Shipping Weight

325 lbs

Certifications:

AHRI Standard 810, NSF, UL Listed, ISO 9001:14001, ENERGY STAR Qualified

Energy Star® Qualified:

Yes

Electrical Specs:

Single phase, 208-230v/60/1 , Amperage: 18.4, Max Fuse/HACR Breaker: 20 A

Plumbing Specs:

1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Hard Pipe or Equivalent

Utility Consumption:

3.44 kWh per 100 lbs @ 90/70, 12 gal of Potable Water per 100 lbs @ 90/70

Operating Limits:

Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 187 – 253V
