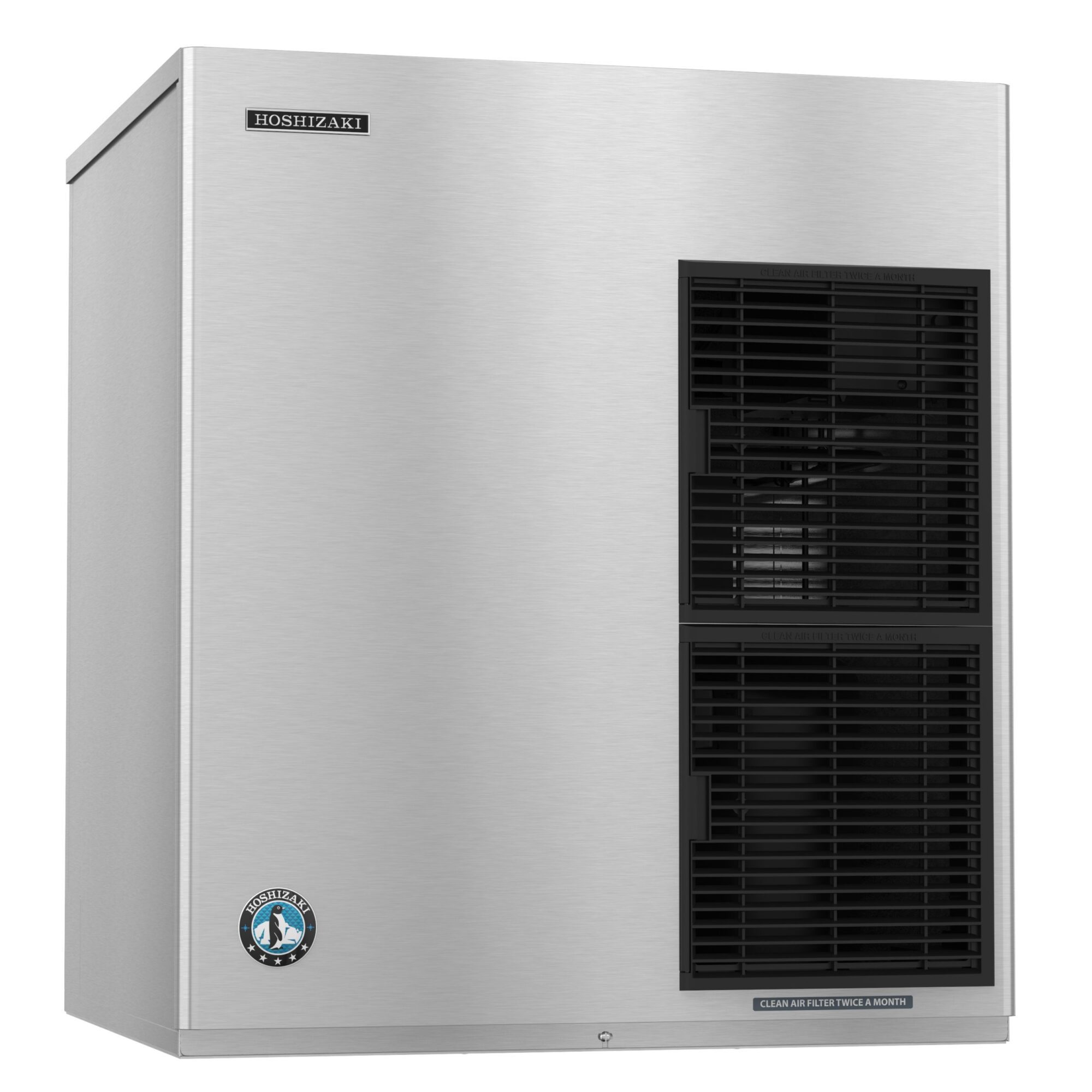

F-1501MWJ, Ice Maker, Water-cooled, Modular

REQUEST A QUOTE

  • Dimensions: 30″ W x 27-3/8″ D x 34-7/16″ H
  • Up to 1624 lbs of ice produced per 24 hours
  • Mount 2 units side-by-side for 2x the ice production
  • Produces flaked ice
  • Durable stainless steel exterior

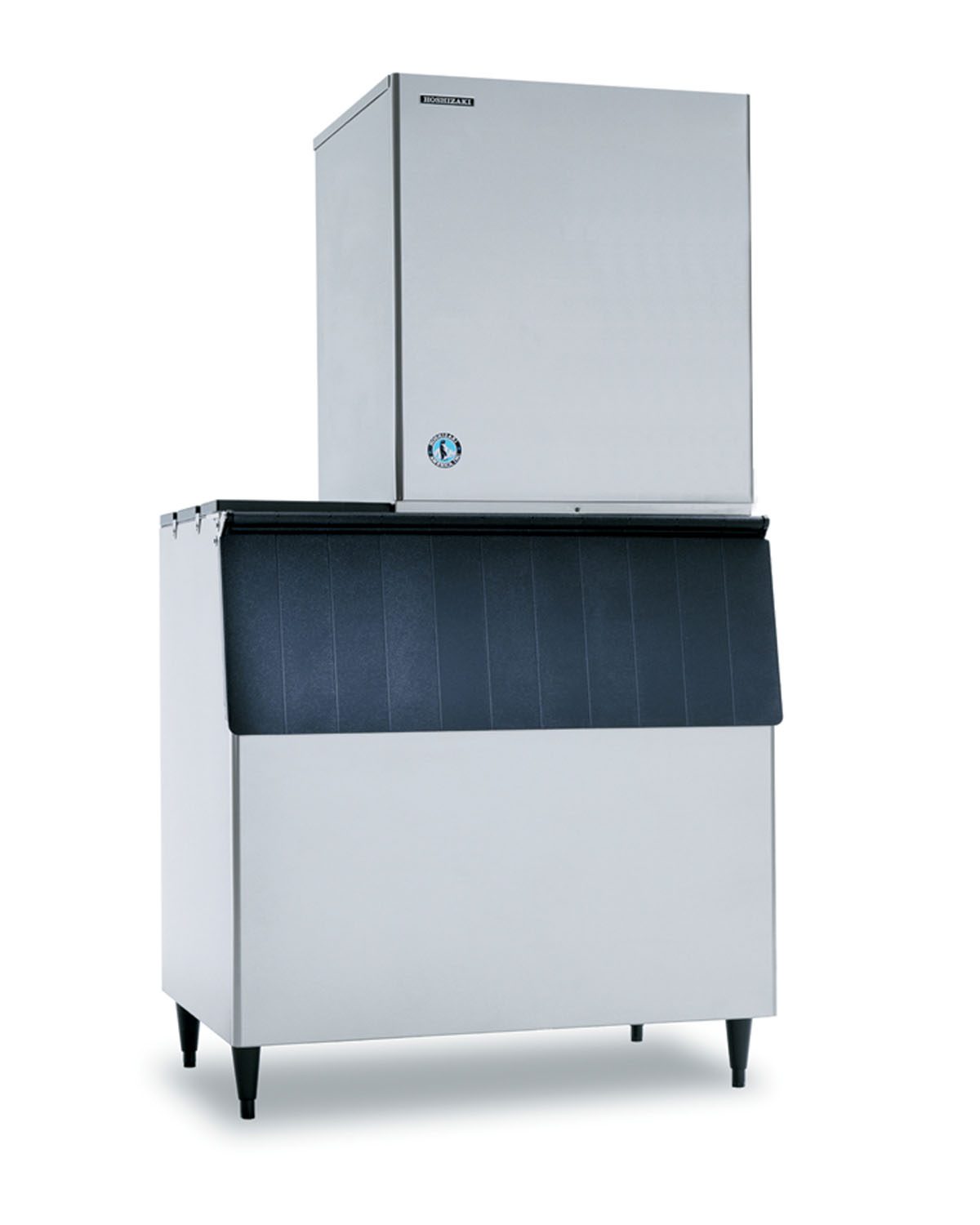

  • Compatible bins & dispensers, sold separately: B-250, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650
  • 2 second rinse every hour to remove sediment
  • Advanced CleanCycle24™ design
  • R-404a refrigerant (1 lb. 4.5 oz. / 580 g)
  • Infrared bin control for easy cleaning and reliability
  • Ambient temperature range: 45 – 100°F
  • Water temperature range: 45 – 90°F
  • Water pressure: 10 – 113psig
  • Voltage range: 187 – 253V
  • 15.4 amps (20 Amp Max fuse)
  • 3.2 kwh/100 lbs.@ 90/70
  • Single phase, 208-230v/60/1
  • Clean ice and easy maintenance lead to longer unit life span
  • Three Years: Parts & Labor warranty on entire machine. (Serial numbers VxxxxxJ and after).
  • Five Years: Parts warranty on Compressor, air-cooled condenser coil.
SKU: F-1501MWJ Categories: , , , ,

LIBRARY

Description

The F-1501MWJ is capable of producing approximately 1624 lbs of flaked ice per day. Flaked ice is perfect for salad bars, seafood counters, and other food displays that require long lasting sanitary ice. This Water-cooled, Modular ice maker features the Advanced CleanCycle24™ design plus a greaseless bearing auger construction making it simple to maintain. The F-1501MWJ requires a Single phase, 208-230v/60/1 electrical connection that is hard-wired at the installation site. Compatible bins & dispensers, sold separately: B-250, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650. Please consult the Specification Sheet for additional details.

Additional information

Weight 325 lbs
Dimensions 27-38 x 30 x 34-716 in
Height

Width

Depth

Shipping Weight

Certifications:

Energy Star® Qualified:

Electrical Specs:

Plumbing Specs:

Utility Consumption:

Operating Limits:
