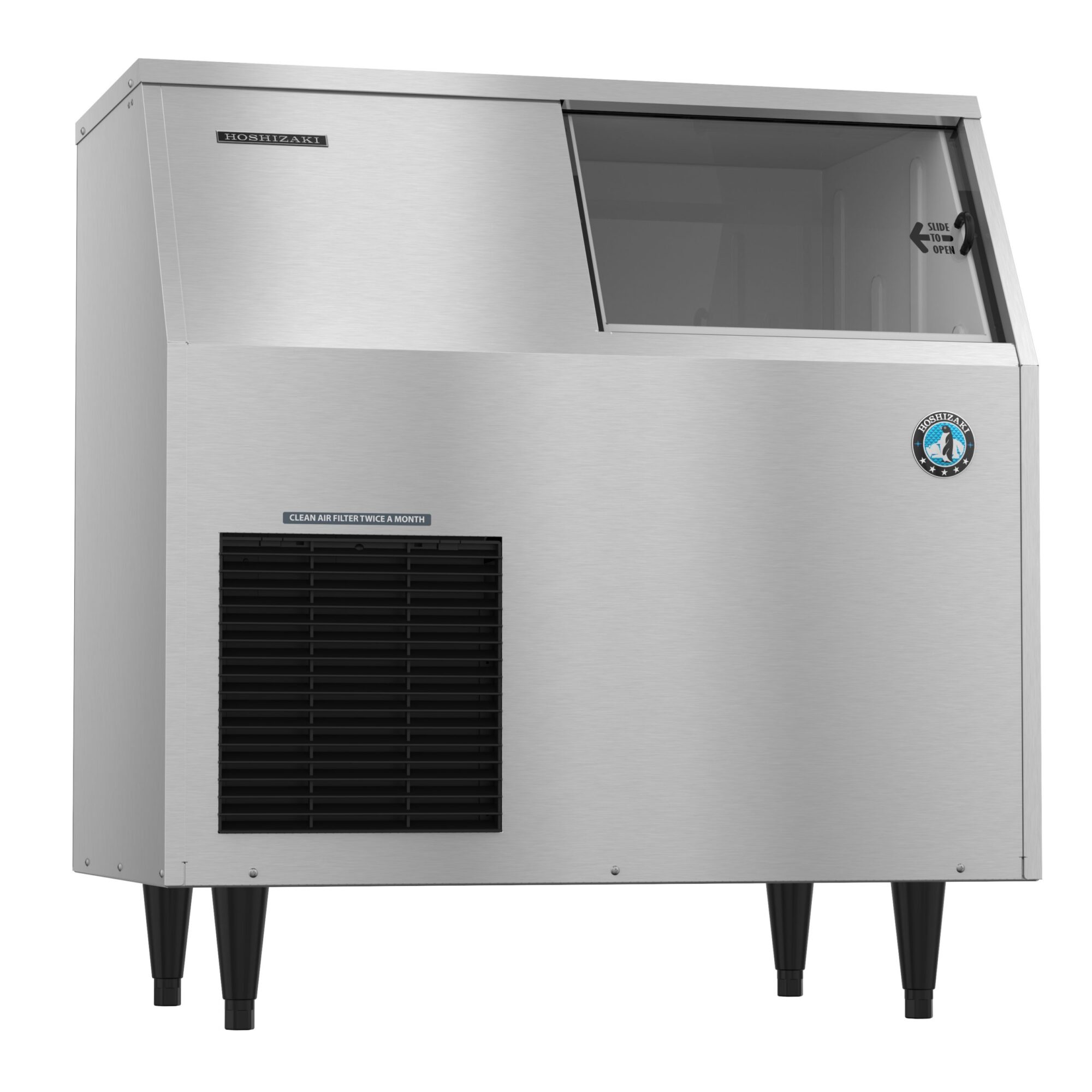

F-300BAJ, Ice Maker, Air-cooled, Self Contained, Built in Storage Bin

  • Dimensions: 36″ W x 24-1/4″ D x 39-1/4″ H
  • Up to 353 lbs of ice produced per 24 hours
  • Up to 100 lbs of built-in storage capacity
  • Produces flaked ice
  • Durable stainless steel exterior
  • Ice maker with built in storage
  • Gear motor protected from overload
  • Automatic system flush when bin control is activated
  • R-404a refrigerant
  • Designed for long life dependability
  • Ambient temperature range: 45 – 100°F
  • Water temperature range: 45 – 90°F
  • Water pressure: 10 – 113psig
  • Voltage range: 104 – 127V
  • 7.8 amps (15 Amp Max fuse)
  • 6.14 kwh/100 lbs.@ 90/70
  • Single phase, 115v/60/1
  • ENERGY STAR Qualified
  • Three Years: Parts & Labor warranty on entire machine.
  • Five Years: Parts warranty on Compressor, air-cooled condenser coil.
SKU: F-300BAJ Categories: , , , ,

LIBRARY

DESCRIPTION

The F-300BAJ is capable of producing approximately 353 lbs of flaked ice per day. Flaked ice is perfect for salad bars, seafood counters, and other food displays that require long lasting sanitary ice. This Air-cooled, Self Contained, Built in Storage Bin ice maker stores up to 100 lbs of ice. It features an Automatic system flush when bin control is activated plus a greaseless bearing auger construction making it simple to maintain. The F-300BAJ requires a Single phase, 115v/60/1 electrical connection. Ice maker with built in storage. ENERGY STAR qualified. Please consult the Specification Sheet for additional details.

SPECIFICATIONS

Weight 221 lbs lbs
Dimensions 24-1/4" D x 36" W x 39-1/4" H in
Height

39-1/4″ H

Width

36″ W

Depth

24- 1/4 ” D

Shipping Weight

221 lbs

Certifications:

NSF, UL Listed, ISO 9001:14001, ENERGY STAR Qualified

Energy Star® Qualified:

Yes

Electrical Specs:

Single phase, 115v/60/1 , Amperage: 7.8, Max Fuse/HACR Breaker: 15 A

Plumbing Specs:

1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Hard Pipe or Equivalent

Utility Consumption:

6.14 kWh per 100 lbs @ 90/70, 12 gal of Potable Water per 100 lbs @ 90/70

Operating Limits:

Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 104 – 127V
