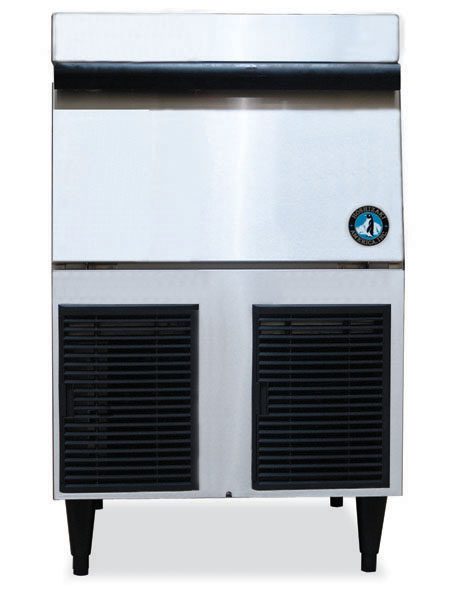

F-330BAJ-C, Cubelet Icemaker, Air-cooled, Built in Storage Bin

REQUEST A QUOTE

  • Dimensions: 24″ W x 26″ D x 39″ H
  • Up to 288 lbs of ice produced per 24 hours
  • Up to 80 lbs of built-in storage capacity (2.7ft3)
  • Produces small cubelet nugget-style ice
  • Durable stainless steel exterior
  • Convenient drop down stainless steel door
  • 2 second rinse every hour to remove sediment
  • Advanced CleanCycle24™ design
  • Protected by H-GUARD Plus Antimicrobial Agent
  • R-404A refrigerant (7.1 oz. / 200 g)
  • Heat Rejection:3400 BTU/hr
  • Ambient temperature range: 45 – 100°F
  • Water temperature range: 45 – 90°F
  • Water pressure: 10 – 113psig
  • Voltage range: 104 – 127V
  • 7.1 amps (15 Amp Max fuse)
  • 7.3 kwh/100 lbs.@ 90/70
  • Single phase, 115v/60/1 8 ft cord with NEMA 5-15 plug
  • Clean ice and easy maintenance lead to longer unit life span
  • Three Years: Parts & Labor warranty on entire machine.
  • Five Years: Parts warranty on Compressor, air-cooled condenser coil.
SKU: F-330BAJ-C Categories: , , , , Tag:

LIBRARY

Description

The F-330BAJ-C is capable of producing approximately 288 lbs of cubelet (nugget-style) ice per day. Cubelet ice is the most popular ice for drinks – as it cools the beverage quickly and absorbs the flavor making an easy-to-chew treat. This Air-cooled, Self Contained, Built in Storage Bin icemaker features the Advanced CleanCycle24™ design plus a greaseless bearing auger construction making it simple to maintain. The F-330BAJ-C requires a Single phase, 115v/60/1 8 ft cord with NEMA 5-15 plug electrical connection that is hard-wired at the installation site. Convenient drop down stainless steel door. Please consult the Specification Sheet for additional details.

Additional information

Weight 178 lbs
Dimensions 24" W X 26" D X 39" H in
Height 39" H
Width 24" W
Depth 26" D
Shipping Weight 178 lbs
Warranty Valid in United States, Canada, Puerto Rico, & U.S. Territories. Contact factory for warranty in other countries.|Three Years: Parts & Labor warranty on entire machine.|Five Years: Parts warranty on Compressor, air-cooled condenser coil.|
Certifications: AHRI Standard 810, NSF, UL Listed, ISO 9001:14001
Energy Star® Qualified: No
Electrical Specs: Single phase, 115v/60/1 8 ft cord with NEMA 5-15 plug, Amperage: 7.1, Max Fuse/HACR Breaker: 15 A
Plumbing Specs: 1/2" FPT Inlet, Minimum 1/4" Nominal ID Copper Water Tubing or Equivalent, 3/4" FPT Outlet, Minimum 3/4" Nominal ID Hard Pipe or Equivalent
Utility Consumption: 7.3 kWh per 100 lbs @ 90/70, 12 gal of Potable Water per 100 lbs @ 90/70
Operating Limits: Ambient Temp Range: 45 - 100°F, Water Temp Range: 45 - 90°F, Water Pressure: 10 - 113psig, Voltage Range: 104 - 127V, Heat Rejection: 3400 BTU/hr, Refrigerant Charge: R-404A, (7.1 oz. / 200 g)
