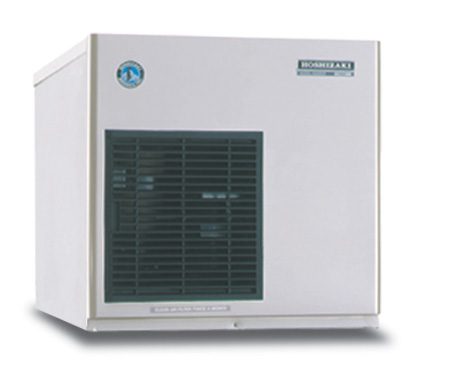

F-450MAH-C, Cubelet Icemaker, Air-cooled

REQUEST A QUOTE

Out of stock

REPLACED BY F-450MAJ-C

  • Dimensions: 22″ W x 27-3/8″ D x 21-7/8″ H
  • Up to 431 lbs of ice produced per 24 hours
  • Mount 2 units side-by-side for 2x the ice production
  • Produces mini cubelet nugget-style ice
  • Durable stainless steel exterior
  • Compatible bins & dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1150, B-1300
  • 2 second rinse every hour to remove sediment
  • Advanced CleanCycle24™ design
  • Not recommended for dispensing applications
  • R-404A refrigerant ( / )
  • Heat Rejection: BTU/hr
  • Ambient temperature range: 45 – 100°F
  • Water temperature range: 45 – 90°F
  • Water pressure: 10 – 113psig
  • Voltage range: 104 – 127V
  • 9.98 amps (20 Amp Max fuse)
  • 6.31 kwh/100 lbs.@ 90/70
  • Single phase, 115v/60/1
  • Clean ice and easy maintenance lead to longer unit life span
  • Three Years: Parts & Labor warranty on entire machine. (Serial numbers VxxxxxJ and after).
  • Five Years: Parts warranty on Compressor, air-cooled condenser coil.
SKU: F-450MAH-C Categories: , , , ,

Sales Literature

Price ListSales Catalog

Description

The F-450MAH-C is capable of producing approximately 431 lbs of cubelet (nugget-style) ice per day. Cubelet ice is the most popular ice for drinks – as it cools the beverage quickly and absorbs the flavor making an easy-to-chew treat. This Air-cooled, Slim Line Modular icemaker stores up to lbs of ice. It features an Advanced CleanCycle24™ design plus a greaseless bearing auger construction making it simple to maintain. The F-450MAH-C requires a Single phase, 115v/60/1 electrical connection. Compatible bins & dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1150, B-1300. Please consult the Specification Sheet for additional details.

Additional information

Weight175 lbs
Dimensions22" W X 27-3/8" D X 21-7/8" H in
Height21-7/8" H
Width22" W
Depth27-3/8" D
Shipping Weight175 lbs
WarrantyValid in United States, Canada, Puerto Rico, & U.S. Territories. Contact factory for warranty in other countries.|Three Years: Parts & Labor warranty on entire machine. (Serial numbers VxxxxxJ and after).|Five Years: Parts warranty on Compressor, air-cooled condenser coil.|
Certifications:NSF, UL Listed
Energy Star® Qualified:No
Electrical Specs:Single phase, 115v/60/1 , Amperage: 9.98, Max Fuse/HACR Breaker: 20 A
Plumbing Specs:1/2" FPT Inlet, Minimum 1/4" Nominal ID Copper Water Tubing or Equivalent, 3/4" FPT Outlet, Minimum 3/4" Nominal ID Hard Pipe or Equivalent
Utility Consumption:6.31 kWh per 100 lbs @ 90/70, 12 gal of Potable Water per 100 lbs @ 90/70
Operating Limits:Ambient Temp Range: 45 - 100°F, Water Temp Range: 45 - 90°F, Water Pressure: 10 - 113psig, Voltage Range: 104 - 127V, Heat Rejection: BTU/hr, Refrigerant Charge: R-404A, ( / )
