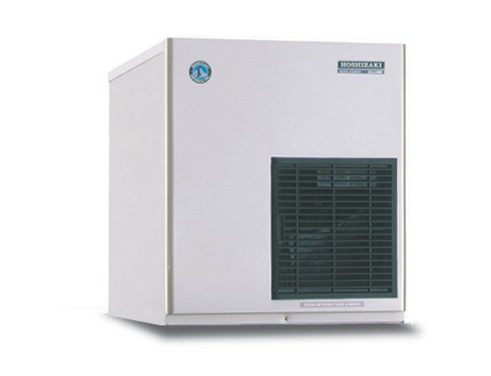

F-801MAH-C, Ice Maker, Air-cooled, Slim Line Modular

REQUEST A QUOTE

Out of stock

[button link=”http://hoshizakiamerica.com/product/f-801maj-c/” color=”blue” size=”medium” type=”3d” shape=”square” target=”_self” title=”View New Model” gradient_colors=”|” gradient_hover_colors=”|” accent_color=”” accent_hover_color=”#5aabd6″ bevel_color=”” border_width=”1px” shadow=”yes” icon=”fa-exclamation-circle” icon_divider=”no” icon_position=”left” modal=”” animation_type=”0″ animation_direction=”down” animation_speed=”0.1″ class=”” id=””]REPLACED BY F-801MAJ-C[/button]

  • Dimensions: 22″ W x 27-3/8″ D x 25-15/16″ H
  • Up to 728 lbs of ice produced per 24 hours
  • Mount 2 units side-by-side for 2x the ice production
  • Produces cubelet ice
  • Durable stainless steel exterior

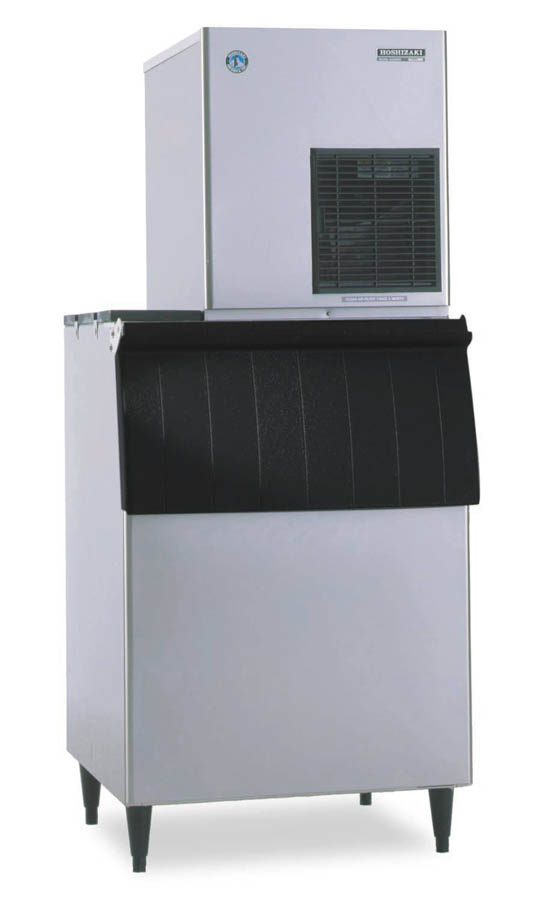

  • Compatible bins & dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300
  • 15 minute flush cycle every 12 hours
  • Advanced CleanCycle12™ design
  • R-404a refrigerant ( / )
  • Easy maintenance leads to longer unit life span
  • Ambient temperature range: 45 – 100°F
  • Water temperature range: 45 – 90°F
  • Water pressure: 10 – 113psig
  • Voltage range: 104 – 127V
  • 11.4 amps (20 Amp Max fuse)
  • 4.51 kwh/100 lbs.@ 90/70
  • Single phase, 115-120v/60/1
  • Clean ice and easy maintenance lead to longer unit life span
  • Three Years: Parts & Labor warranty on entire machine. (Serial numbers VxxxxxJ and after).
  • Five Years: Parts warranty on Compressor, air-cooled condenser coil.

Out of stock

SKU: F-801MAH-C Categories: , , , ,

LIBRARY

Description

The F-801MAH-C is capable of producing approximately 728 lbs of cubelet ice per day. Cubelet ice is the most popular ice for drinks – as it cools the beverage quickly and absorbs the flavor making an easy-to-chew treat. This Air-cooled, Slim Line Modular ice maker features the Advanced CleanCycle12™ design plus a greaseless bearing auger construction making it simple to maintain. The F-801MAH-C requires a Single phase, 115-120v/60/1 electrical connection that is hard-wired at the installation site. Compatible bins & dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300. Please consult the Specification Sheet for additional details.

Additional information

Weight 205 lbs
Dimensions 27-38 x 22 x 25-1516 in
Height

Width

Depth

Shipping Weight

Certifications:

Energy Star® Qualified:

Electrical Specs:

Plumbing Specs:

Utility Consumption:

Operating Limits:
