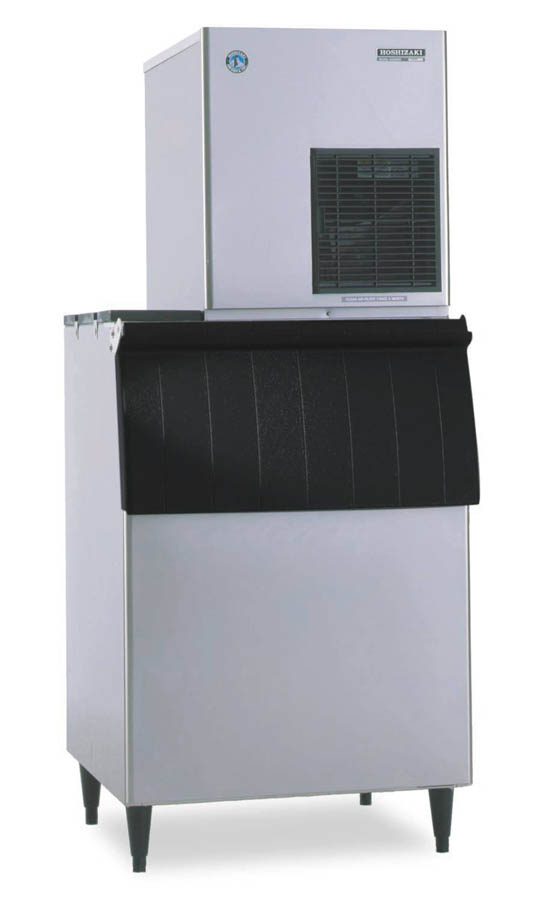

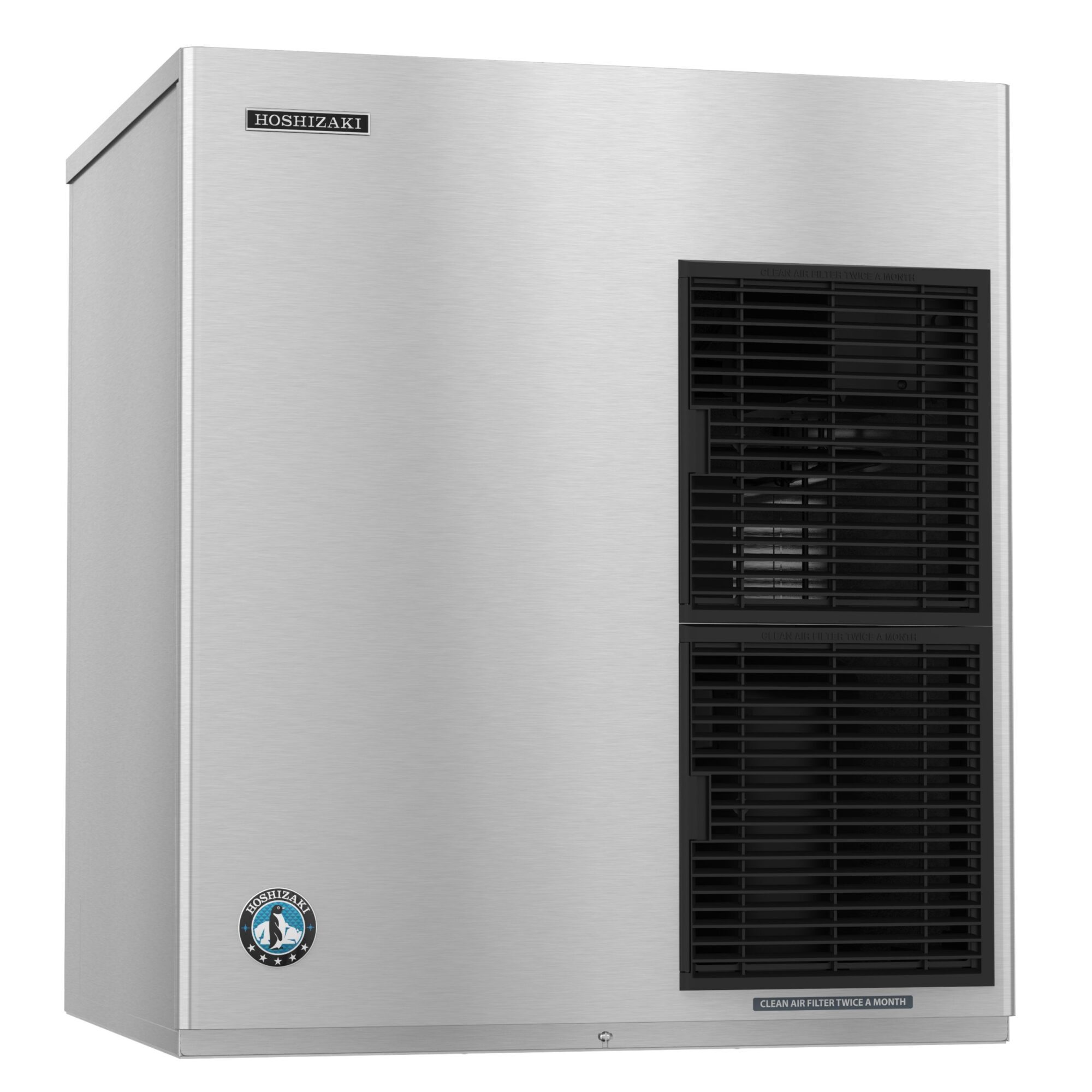

F-801MAJ, Flaker Icemaker, Air-cooled

REQUEST A QUOTE

  • Dimensions: 22″ W x 27-3/8″ D x 26″ H
  • Up to 751 lbs of ice produced per 24 hours
  • Mount 2 units side-by-side for 2x the ice production

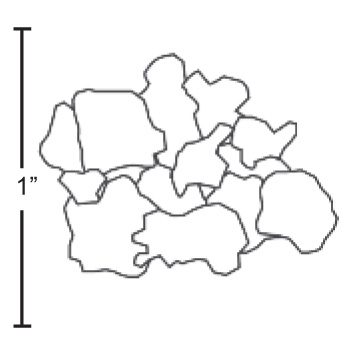

  • Produces flaked ice
  • Durable stainless steel exterior

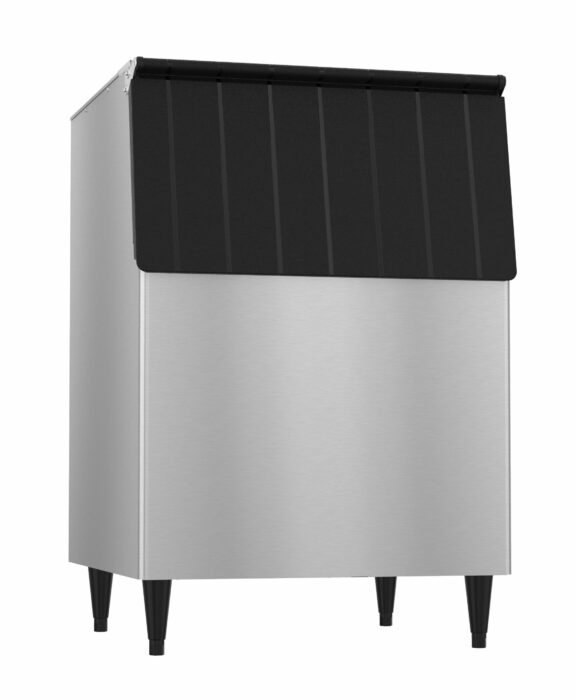

  • Compatible bins & dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650, B-1150, B-1300, B-1500, B-1650
  • 2 second rinse every hour to remove sediment for cleaner ice
  • Advanced CleanCycle24™ design
  • Infrared bin control for easy cleaning and reliability
  • R-404A refrigerant (1 lbs. 12 oz. / 790 g)
  • Heat Rejection: BTU/hr
  • Ambient temperature range: 45 – 100°F
  • Water temperature range: 45 – 90°F
  • Water pressure: 10 – 113psig
  • Voltage range: 104 – 127V
  • 11.8 amps (15 Amp Max fuse)
  • 4.5 kwh/100 lbs.@ 90/70
  • Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included
  • ENERGY STAR® qualified
  • Three Years: Parts & Labor warranty on entire machine.
  • Five Years: Parts warranty on Compressor, air-cooled condenser coil.
SKU: F-801MAJ Categories: , , , ,

Sales Literature

Price ListSales Catalog

Description

The F-801MAJ is capable of producing approximately 751 lbs of flaked ice per day. Flaked ice is perfect for salad bars, seafood counters, and other food displays that require long lasting sanitary ice. This Air-cooled, Slim Line Modular icemaker features the Advanced CleanCycle24™ design plus a greaseless bearing auger construction making it simple to maintain. The F-801MAJ requires a Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included electrical connection that is hard-wired at the installation site. Compatible bins & dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650, B-1150, B-1300, B-1500, B-1650. ENERGY STAR® qualified. Please consult the Specification Sheet for additional details.

Additional information

Weight205 lbs
Dimensions22" W X 27-3/8" D X 26" H in
Height26" H
Width22" W
Depth27-3/8" D
Shipping Weight205 lbs
WarrantyValid in United States, Canada, Puerto Rico, & U.S. Territories. Contact factory for warranty in other countries.|Three Years: Parts & Labor warranty on entire machine.|Five Years: Parts warranty on Compressor, air-cooled condenser coil.|
Certifications:NSF, UL Listed, ENERGY STAR® Qualified
Energy Star® Qualified:Yes
Electrical Specs:Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included, Amperage: 11.8, Max Fuse/HACR Breaker: 15 A
Plumbing Specs:1/2" FPT Inlet, Minimum 1/4" Nominal ID Copper Water Tubing or Equivalent, 3/4" FPT Outlet, Minimum 3/4" Nominal ID Hard Pipe or Equivalent
Utility Consumption:4.5 kWh per 100 lbs @ 90/70, 12 gal of Potable Water per 100 lbs @ 90/70
Operating Limits:Ambient Temp Range: 45 - 100°F, Water Temp Range: 45 - 90°F, Water Pressure: 10 - 113psig, Voltage Range: 104 - 127V, Heat Rejection: BTU/hr, Refrigerant Charge: R-404A, (1 lbs. 12 oz. / 790 g)
