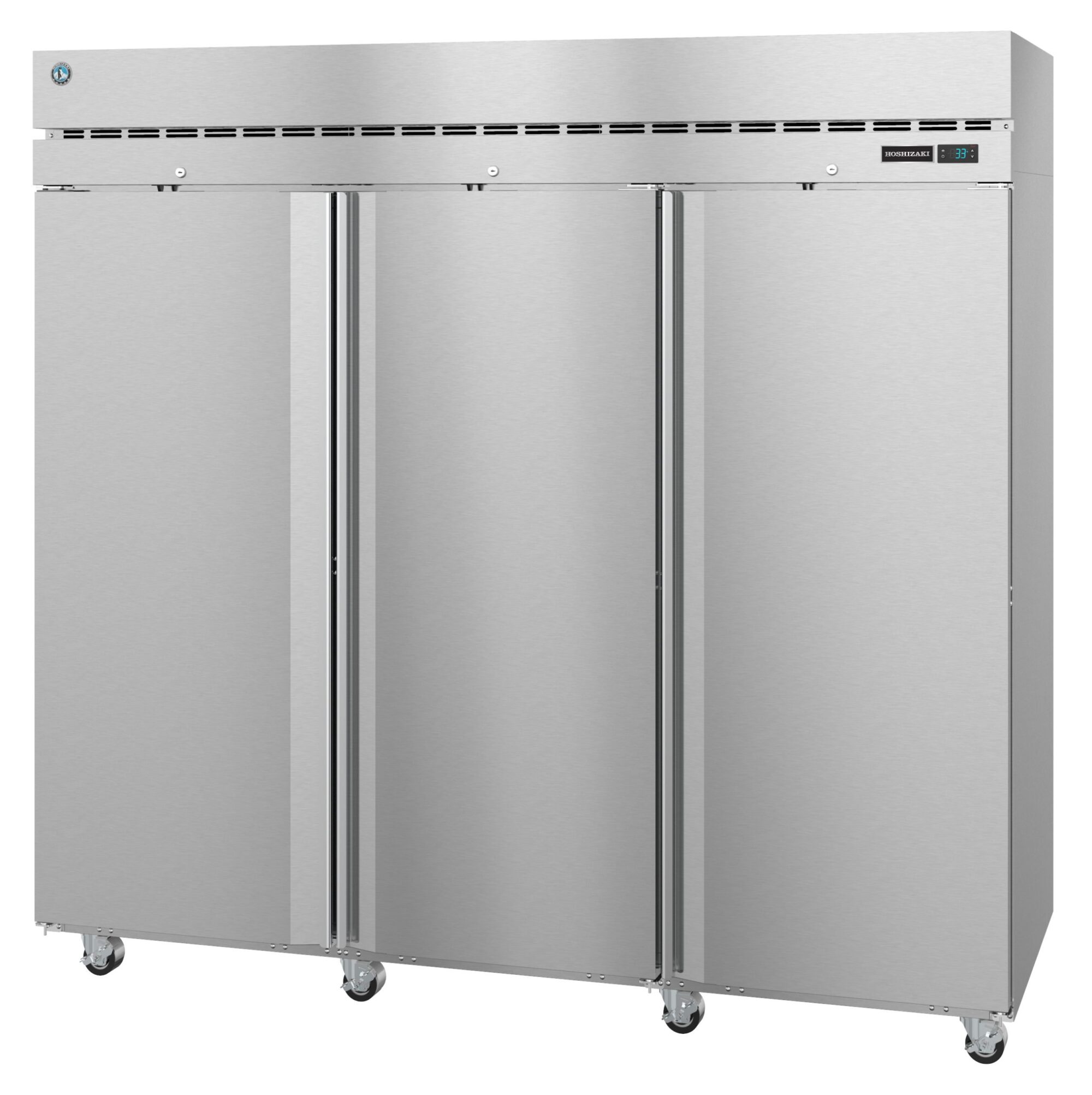

F3A-FS, Freezer, Three Section Upright, Full Stainless Doors with Lock

REQUEST A QUOTE

  • Dimensions: 82.5″ W x 33.5″ D x 79.5″ H
  • Net capacity of 79.03 cubic feet
  • Unique “ducted” air distribution system
  • Epoxy electrocoated (E-Coat) evaporator coil to help fight corrosion for extended life
  • Stainless steel exterior (front, sides, top) and a stainless steel interior
  • Field reversible, spring assisted self closing door with stay open feature (no kit req’d)
  • One piece, full door length, extruded aluminum flush mount door handle
  • Lockable Full Stainless Doors
  • Insulated with 2 3/8″ CFC free, foamed in place polyurethane
  • Interior LED light bar is mounted horizontally on the ceiling
  • Solid state digital controller with temperature alarms and LED display (°F or °C)
  • R290 refrigerant
  • (8) 4″ Stem Casters (4 with brakes) are standard
  • Includes 9 epoxy coated wire coated wire shelves adjustable in 1″ increments on stainless steel supports
  • Optional kits: 6″ Legs, Epoxy or stainless steel shelves, Tray/pan slides, Foot pedal door opener, Additional air filter
  • Nominal Compres. of 3000 BTU/hr at 5/8 HP(left), BTU/hr at (right)
  • 230v/60/1, 10 ft. cord and plug
  • Shipping Crate: 86″ L x 37.5″ D x 81″ H at 811 lbs
  • Top mounted energy efficient non-electric evaporation system
  • Five Years compressor warranty, Three Years parts and labor warranty

Sales Literature

Price ListSales Catalog

Description

The F3A-FS Steelheart Series upright three section freezer with full stainless doors is an attractive workhorse for any business. The dependable 5/8 HP motor that powers the compressor in the top of this unit provides the cabinet with a continuous stream of cold air through its unique ‘ducted’ air distribution system, which ensures a steady constant temperature.
The durable Stainless steel exterior (front, sides, top) and a stainless steel interior resists the random damage normal in a commercial kitchen or business. Plus, it is easy to clean. The F3A-FS Includes 9 epoxy coated wire coated wire shelves adjustable in 1″ increments on stainless steel supports, and the (8) 4″ Stem Casters (4 with brakes) are standard. It features field reversible, spring assisted self closing door with stay open feature (no kit req’d). Optional kits: 6″ Legs, Epoxy or stainless steel shelves, Tray/pan slides, Foot pedal door opener, Additional air filter. The unit is ETL Sanitation Listed, ETL Safety (US & C) Listed and includes a Five Years compressor warranty / Three Years parts and labor warranty.

Additional information

Weight811 lbs
Dimensions82.5" W X 33.5" D X 79.5" H in
Height79.5" H
Width82.5" W
Depth33.5" D
Shipping Weight811 lbs
WarrantyValid in United States, Canada, Puerto Rico, & U.S. Territories. Contact factory for warranty in other countries.|Three Years: Parts & Labor warranty on entire machine.|Five Years: Parts warranty on Compressor.|
Certifications:ETL Sanitation Listed, ETL Safety (US & C) Listed
Energy Star® Qualified:No
Electrical Specs:Electrical Connection: 5 - 20P NEMA, 230v/60/1, 10 ft. cord and plug, Energy Consumption: kwh/day, Amperage: 9, Max Fuse/HACR Breaker: 15 A
Plumbing Specs:
Utility Consumption:
Operating Limits:Ambient Temp Range: 45 - 100°F, Voltage Range: 104 - 126V, Control Setpoint Range: -10 - +12°F, Refrigerant: R290
