  • FD-650MAH-C

ADD TO COMPARE

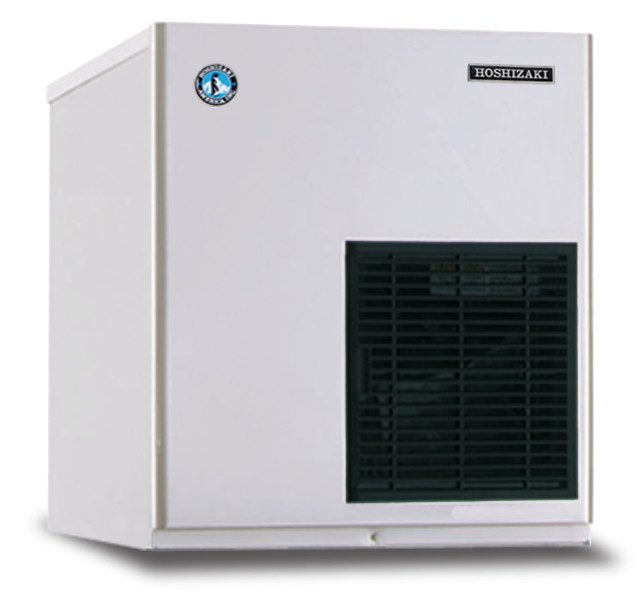

FD-650MAH-C, Ice Maker, Air-cooled, Slim Line Dispenser

$7,600.00

  • Dimensions: 22″ W x 24″ D x 26″ H
  • Up to 650 lbs of ice produced per 24 hours
  • Air-cooled, Slim Line Dispenser, 22″ Wide Ice Maker
  • Produces cubelet ice
  • Durable stainless steel exterior

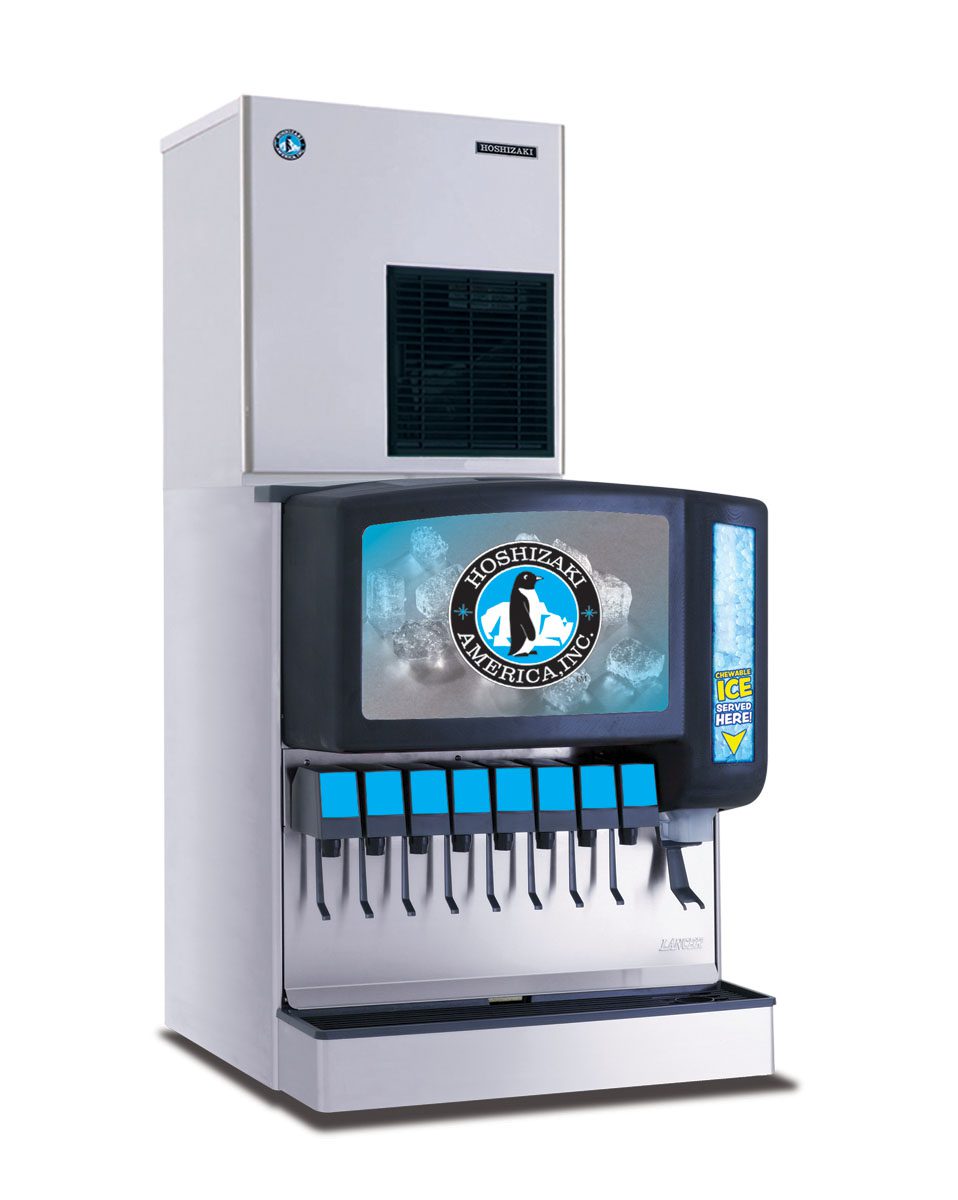

  • Compatible bins & dispensers, sold separately: B-250, BD-300, B-500, B-700, B-800, B-900
  • 2 second rinse every hour to remove sediment
  • Advanced CleanCycle24™ design
  • R-404a refrigerant
  • Protected by H-GUARD Plus Antimicrobial Agent
  • Ambient temperature range: 45 – 100°F
  • Water temperature range: 45 – 90°F
  • Water pressure: 10 – 113psig
  • Voltage range: 104 – 127V
  • 11.2 amps (20 Amp Max fuse)
  • 5.35 kwh/100 lbs.@ 90/70
  • Single phase, 115v/60/1
  • ENERGY STAR Qualified
  • Three Years: Parts & Labor warranty on entire machine. (Serial numbers VxxxxxJ and after).
  • Five Years: Parts warranty on Compressor, air-cooled condenser coil.
SKU: FD-650MAH-C Categories: , , , ,

LIBRARY

DESCRIPTION

The FD-650MAH-C is capable of producing approximately 650 lbs of cubelet ice per day. Cubelet ice is the most popular ice for drinks – as it cools the beverage quickly and absorbs the flavor making an easy-to-chew treat. This Air-cooled, Slim Line Dispenser ice maker features the Advanced CleanCycle24™ design plus a greaseless bearing auger construction making it simple to maintain. The FD-650MAH-C requires a Single phase, 115v/60/1 electrical connection that is hard-wired at the installation site. Compatible bins & dispensers, sold separately: B-250, BD-300, B-500, B-700, B-800, B-900. ENERGY STAR qualified. Please consult the Specification Sheet for additional details.

SPECIFICATIONS

Weight 205 lbs
Dimensions 24 x 22 x 26 in
Height

Width

Depth

Shipping Weight

Certifications:

Energy Star® Qualified:

Electrical Specs:

Plumbing Specs:

Utility Consumption:

Operating Limits:
