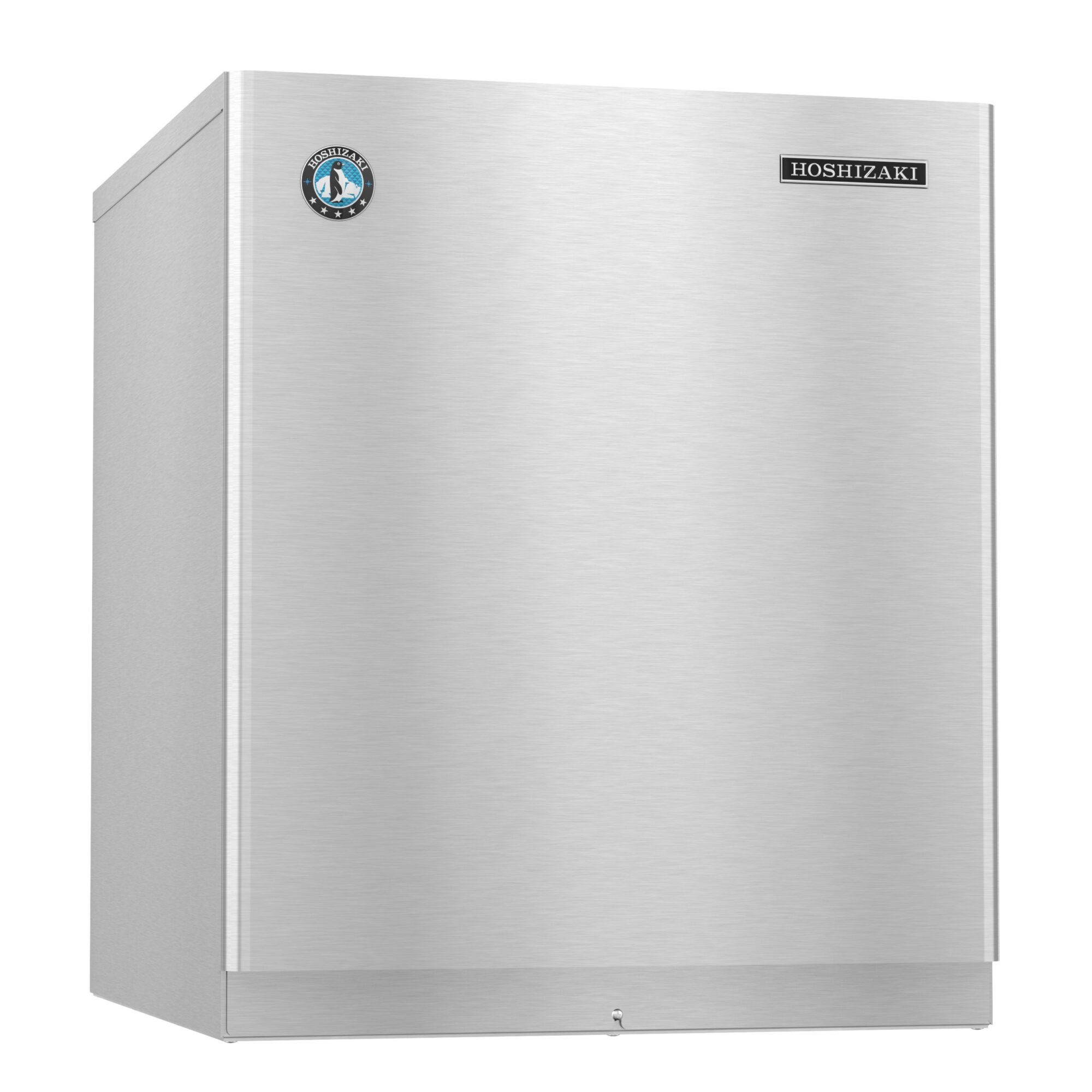

FD-650MRH-C with URC-5F, Ice Maker, Remote-cooled with URC-5F (Sold Separately)

  • Dimensions: 22″ W x 24″ D x 26″ H
  • Up to 590 lbs of ice produced per 24 hours
  • Remote-cooled with URC-5F (Sold Separately)
  • Produces cubelet ice
  • Durable stainless steel exterior
  • Compatible bins & dispensers, sold separately: B-250, BD-300, B-500, B-700, B-800, B-900
  • 2 second rinse every hour to remove sediment
  • Advanced CleanCycle24™ design
  • R-404a refrigerant
  • Protected by H-GUARD Plus Antimicrobial Agent
  • Ambient temperature range: 45 – 100°F
  • Water temperature range: 45 – 90°F
  • Water pressure: 10 – 113psig
  • Voltage range: 104 – 127V
  • 10.8 amps (20 Amp Max fuse)
  • 4.75 kwh/100 lbs.@ 90/70
  • Single phase, 115v/60/1
  • ENERGY STAR Qualified
  • Three Years: Parts & Labor warranty on entire machine. (Serial numbers VxxxxxJ and after).
  • Five Years: Parts warranty on Compressor, air-cooled condenser coil.
SKU: FD-650MRH-C Categories: , , , ,

LIBRARY

DESCRIPTION

The FD-650MRH-C is capable of producing approximately 590 lbs of cubelet ice per day. Cubelet ice is the most popular ice for drinks – as it cools the beverage quickly and absorbs the flavor making an easy-to-chew treat. This Remote-cooled with URC-5F (Sold Separately) ice maker features the Advanced CleanCycle24™ design plus a greaseless bearing auger construction making it simple to maintain. The FD-650MRH-C requires a Single phase, 115v/60/1 electrical connection that is hard-wired at the installation site. Remote condenser sold separately. Compatible bins & dispensers, sold separately: B-250, BD-300, B-500, B-700, B-800, B-900. ENERGY STAR qualified. Please consult the Specification Sheet for additional details.

SPECIFICATIONS

Weight 205 lbs lbs
Dimensions 24" D x 22" W x 26" H in
Height

26″ H

Width

22″ W

Depth

24″ D

Shipping Weight

205 lbs

Certifications:

NSF, UL Listed, ISO 9001:14001, Manufactured in the USA, ENERGY STAR Qualified

Energy Star® Qualified:

Yes

Electrical Specs:

Single phase, 115v/60/1 Amperage: 10.8, Max Fuse/HACR Breaker: 20 A

Plumbing Specs:

1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Hard Pipe or Equivalent

Utility Consumption:

4.75 kWh per 100 lbs @ 90/70, 12 gal of Potable Water per 100 lbs @ 90/70

Operating Limits:

Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 104 – 127V
