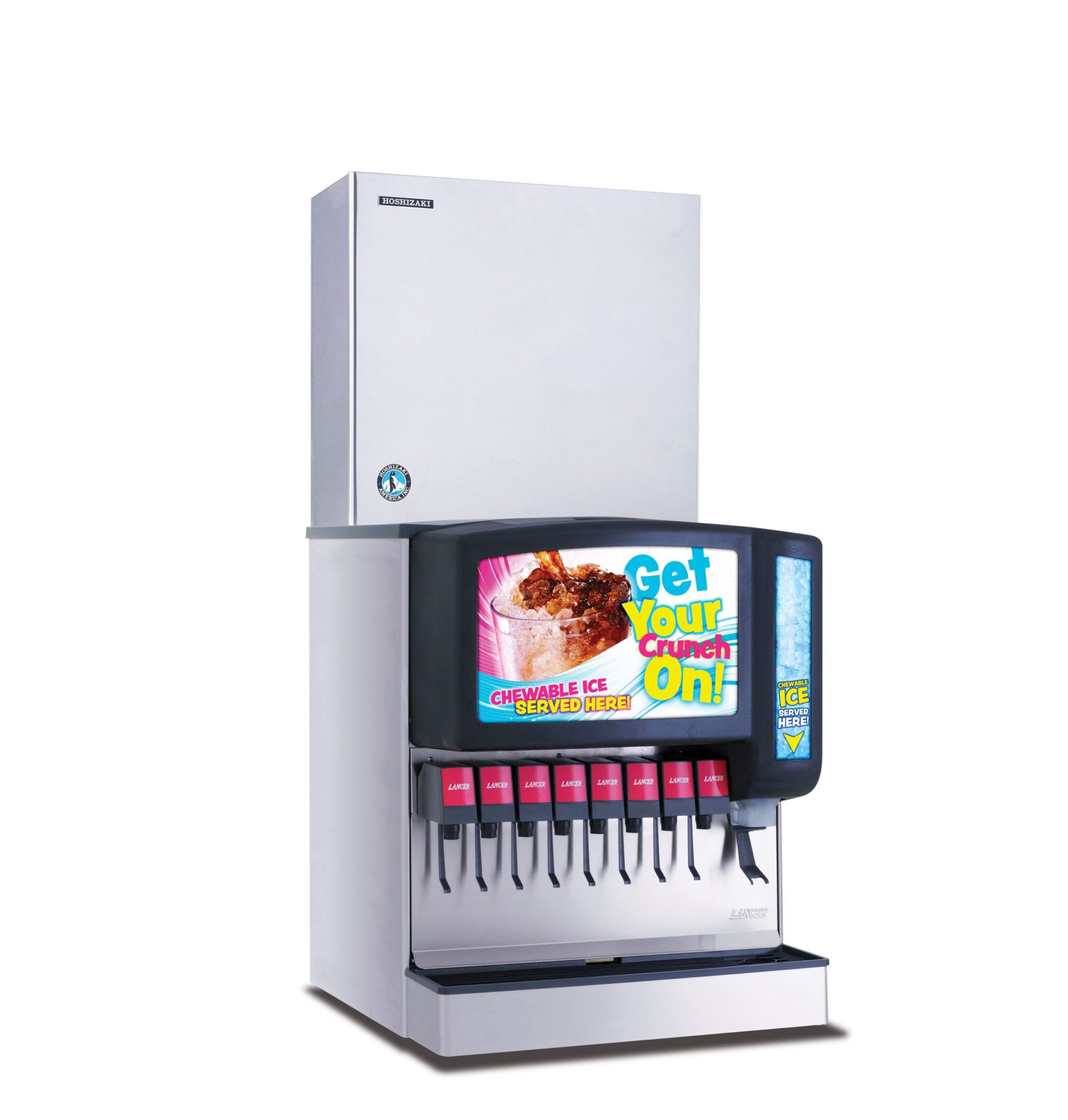

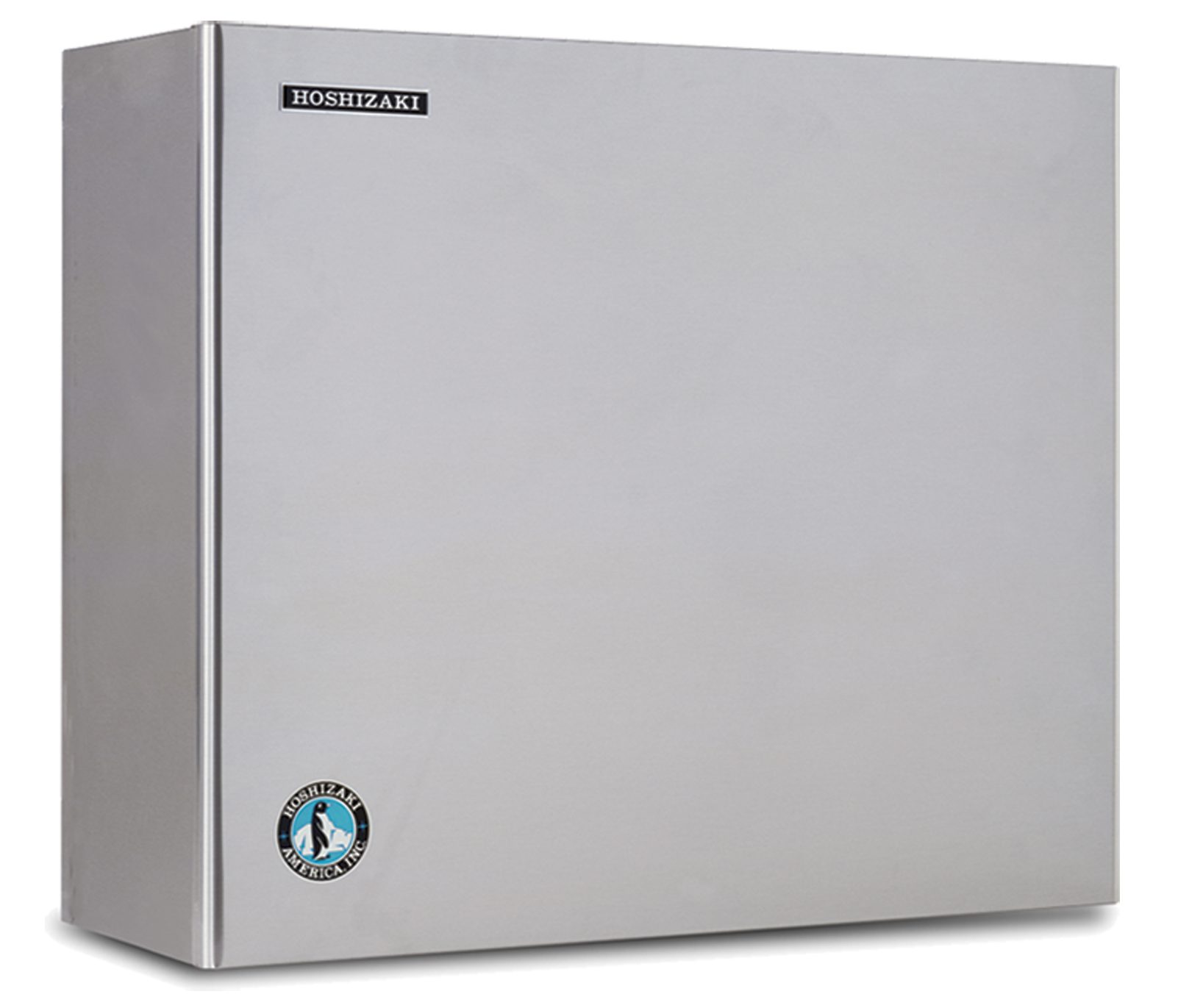

FS-1001MLH-C with SRC-10H, Cubelet Icemaker, Remote-cooled, Serenity Series

REQUEST A QUOTE

Out of stock

REPLACED BY FS-1001MLJ-C

  • Dimensions: 30″ W x 11″ D x 26″ H
  • Up to 830 lbs of ice produced per 24 hours
  • Remote-cooled, Serenity Series
  • Produces small cubelet nugget-style ice
  • Durable stainless steel exterior

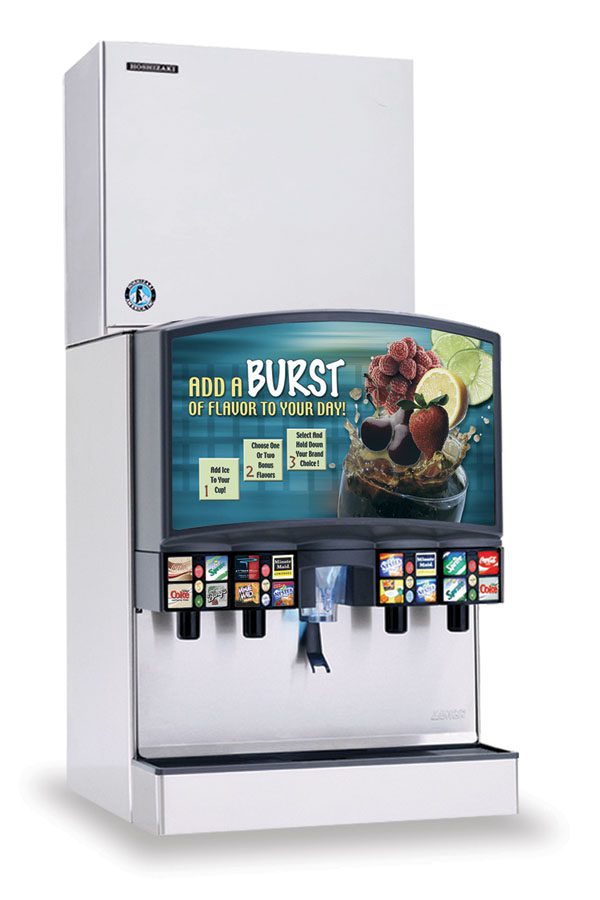

  • Compatible bins & dispensers, sold separately: Beverage Dispensers
  • Ice removed from evaporator after every shut down cycle
  • Advanced CleanCycle24™ design
  • Reduces heat in the kitchen and minimizes noise
  • R-404A refrigerant (4 oz. / 113 g)
  • Heat Rejection: BTU/hr
  • Ambient temperature range: 45 – 100°F
  • Water temperature range: 45 – 90°F
  • Water pressure: 10 – 113psig
  • Voltage range: 104 – 127V
  • 15 amps (15 Amp Max fuse)
  • 5.96 kwh/100 lbs.@ 90/70
  • Single phase, 115v/60/1
  • Clean ice and easy maintenance lead to longer unit life span
  • Three Years: Parts & Labor warranty on entire machine. (Serial numbers VxxxxxJ and after).
  • Five Years: Parts warranty on Compressor, air-cooled condenser coil.

Out of stock

SKU: FS-1001MLH-C Categories: , , , ,

LIBRARY

Description

The FS-1001MLH-C is capable of producing approximately 830 lbs of cubelet (nugget-style) ice per day. Cubelet ice is the most popular ice for drinks – as it cools the beverage quickly and absorbs the flavor making an easy-to-chew treat. This Remote-cooled, Serenity Series icemaker features the Advanced CleanCycle24™ design plus a greaseless bearing auger construction making it simple to maintain. The FS-1001MLH-C requires a Single phase, 115v/60/1 electrical connection that is hard-wired at the installation site. Remote condenser sold separately. Compatible bins & dispensers, sold separately: Beverage Dispensers. Please consult the Specification Sheet for additional details.

Additional information

Weight 166 lbs
Dimensions 30" W X 11" D X 26" H in
Height 26" H
Width 30" W
Depth 11" D
Shipping Weight 166 lbs
Warranty Valid in United States, Canada, Puerto Rico, & U.S. Territories. Contact factory for warranty in other countries.|Three Years: Parts & Labor warranty on entire machine. (Serial numbers VxxxxxJ and after).|Five Years: Parts warranty on Compressor, air-cooled condenser coil.|
Certifications: NSF, UL Listed, ISO 9001:14001
Energy Star® Qualified: No
Electrical Specs: Single phase, 115v/60/1 , Amperage: 15, Max Fuse/HACR Breaker: 15 A
Plumbing Specs: 1/2" FPT Inlet, Minimum 1/4" Nominal ID Copper Water Tubing or Equivalent, 3/4" FPT Outlet, Minimum 3/4" Nominal ID Hard Pipe or Equivalent
Utility Consumption: 5.96 kWh per 100 lbs @ 90/70, 12 gal of Potable Water per 100 lbs @ 90/70
Operating Limits: Ambient Temp Range: 45 - 100°F, Water Temp Range: 45 - 90°F, Water Pressure: 10 - 113psig, Voltage Range: 104 - 127V, Heat Rejection: BTU/hr, Refrigerant Charge: R-404A, (4 oz. / 113 g)
