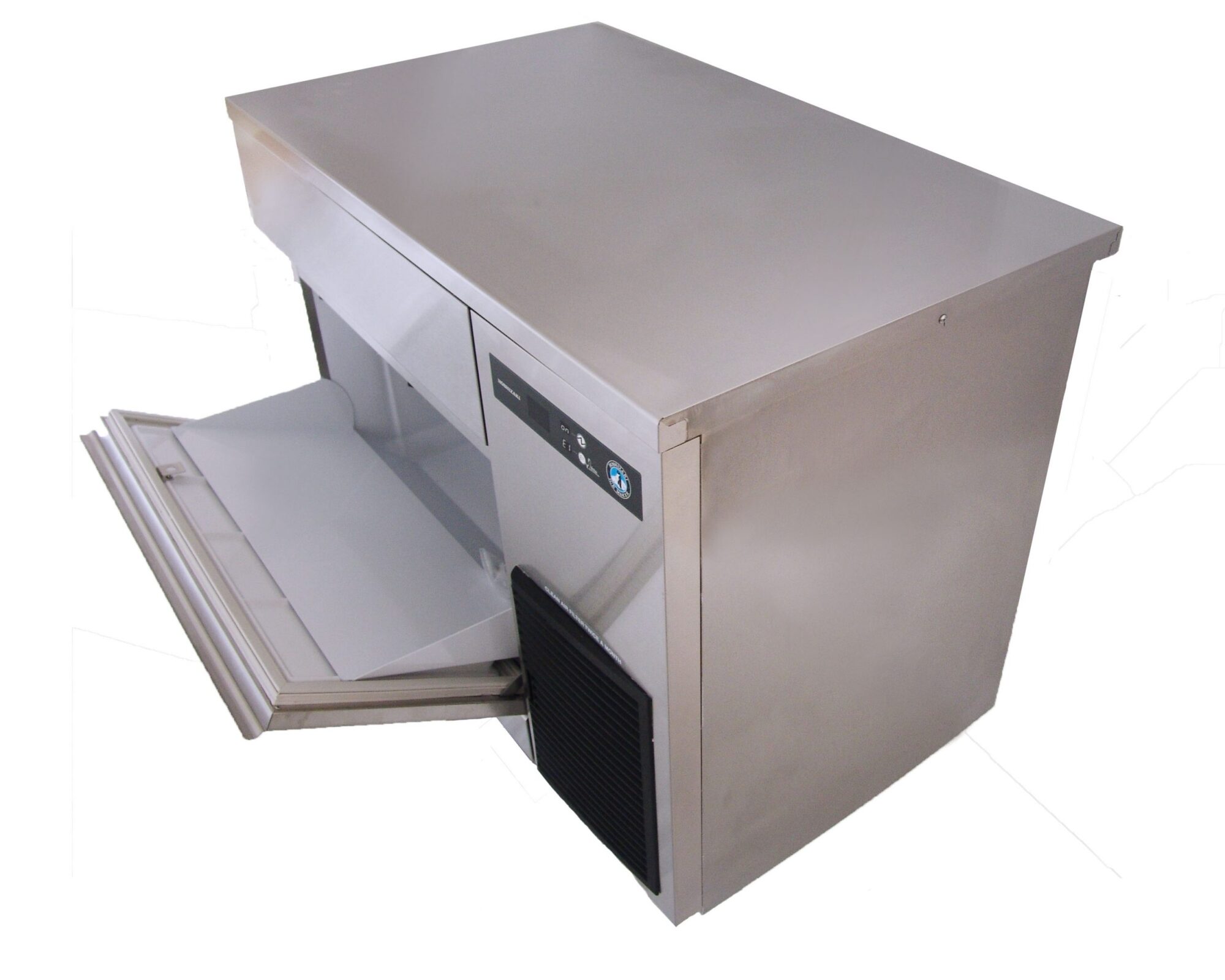

Name: IM-200BAA, Square Cuber Icemaker, Air-cooled, Built in Storage Bin
SKU: IM-200BAA
Availability: OutOfStock

SPEC SHEET

IM-200BAA, Square Cuber Icemaker, Air-cooled, Built in Storage Bin

REPLACED BY IM-200BAB

Dimensions: 39-1/2″ W x 23-5/8″ D x 33- 1/2 ” H
Up to 200 lbs of ice produced per 24 hours
Up to 50 lbs of built-in storage capacity (2.5ft3)
Produces individual square cubes
Durable stainless steel exterior
Min Clearance: 0″ on top, 2″ on left side, 6″ on right side, 2″ rear
EverCheck™ alert system
Easily disassembled water circuit for easy cleaning
5′ power cord with NEMA 5-15P plug
R-134a refrigerant (10.2 oz. / 290 g)
Heat Rejection:3500 BTU/hr
Ambient temperature range: 45 – 100°F
Water temperature range: 45 – 90°F
Water pressure: 10 – 113psig
Voltage range: 104 – 127V
7.6 amps (15 Amp Max fuse)
8.3 kwh/100 lbs.@ 90/70
Single phase, 115v/60/1, 5′ 7/8″ ft cord with NEMA 5-15 plug
Clean ice and easy maintenance lead to longer unit life span
Three Years: Parts & Labor warranty on entire machine.
Five Years: Parts & Labor warranty on evaporator.

Out of stock

SKU: IM-200BAA Categories: Ice, Ice Maker, Square Cuber Tag: Undercounter Icemaker

LIBRARY

Service Literature

Specification Sheet Instruction Manual Parts Manual Service Manual CAD/Revit Files Warranty Statement

Sales Literature

Price List Sales Catalog

Description

The IM-200BAA is capable of producing approximately 200 lbs of individual square cubes. The square cube shape melts very slowly, chilling beverages with very minimal dilution. This Air-cooled, Self Contained, Built in Storage Bin icemaker features Up to 50 lbs of built-in storage capacity (2.5ft3)*. The IM-200BAA requires a Single phase, 115v/60/1, 5′ 7/8″ ft cord with NEMA 5-15 plug electrical connection and a 5′ power cord with NEMA 5-15P plug. Min Clearance: 0″ on top, 2″ on left side, 6″ on right side, 2″ rear. Please consult the Specification Sheet for additional details.*Rated in accordance with AHRI Standard 820(I-P). Capacity based on 100% of total volume x 30 lb/ft3 average density of ice.

Additional information

Weight	203 lbs
Dimensions	39-1/2" W X 23-5/8" D X 33- 1/2 " H in
Height	33- 1/2 " H
Width	39-1/2" W
Depth	23-5/8" D
Shipping Weight	203 lbs
Warranty	Valid in United States, Canada, Puerto Rico, & U.S. Territories. Contact factory for warranty in other countries.\|Three Years: Parts & Labor warranty on entire machine.\|Five Years: Parts & Labor warranty on evaporator.\|Five Years: Parts warranty on Compressor, air-cooled condenser coil.
Certifications:	AHRI Standard 810, NSF, UL Listed, ISO 9001:14001, ETL Sanitation Listed
Energy Star® Qualified:	No
Electrical Specs:	Single phase, 115v/60/1, 5' 7/8" ft cord with NEMA 5-15 plug, Amperage: 7.6, Max Fuse/HACR Breaker: 15 A
Plumbing Specs:	1/2" FPT Inlet, Minimum 1/4" Nominal ID Copper Water Tubing or Equivalent, 3/4" FPT Outlet, Minimum 3/4" Nominal ID Hard Pipe or Equivalent
Utility Consumption:	8.3 kWh per 100 lbs @ 90/70, 23 gal of Potable Water per 100 lbs @ 90/70
Operating Limits:	Ambient Temp Range: 45 - 100°F, Water Temp Range: 45 - 90°F, Water Pressure: 10 - 113psig, Voltage Range: 104 - 127V, Heat Rejection: 3500 BTU/hr, Refrigerant Charge: R-134a, (10.2 oz. / 290 g)
