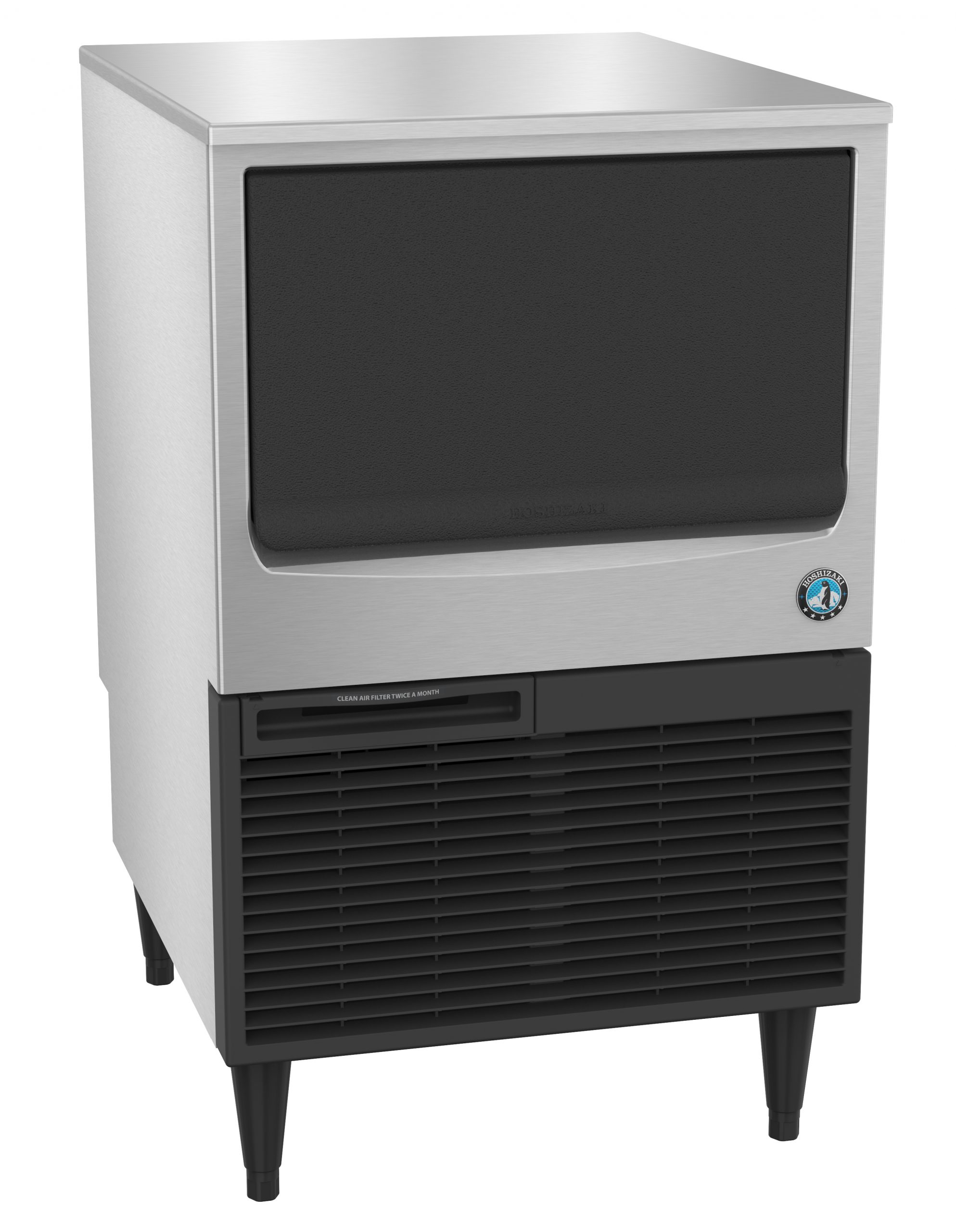

KM-101BAH, Ice Maker, Air-cooled, Self Contained, Built in Storage Bin

REQUEST A QUOTE

  • Dimensions: 23-3/4″ W x 24-1/4″ D x 39″ H
  • Up to 115 lbs of ice produced per 24 hours
  • Up to 53 lbs of built-in storage capacity (1.8ft3)
  • Produces crescent ice
  • Durable stainless steel exterior
  • Ice maker with built in storage
  • EverCheck™ alert system
  • CycleSaver™ design
  • R-134a refrigerant (7.8 oz. / 220 g)
  • HS-5061 drain pump assembly, sold separately
  • Ambient temperature range: 45 – 100°F
  • Water temperature range: 45 – 90°F
  • Water pressure: 10 – 113psig
  • Voltage range: 104 – 127V
  • 5.2 amps (15 Amp Max fuse)
  • 9.4 kwh/100 lbs.@ 90/70
  • Single phase, 115v/60/1
  • ENERGY STAR Qualified
  • Three Years: Parts & Labor warranty on entire machine.
  • Five Years: Parts & Labor warranty on evaporator.

LIBRARY

Description

The KM-101BAH is capable of producing approximately 115 lbs of crescent cubed ice. This Undercounter Air-cooled, Self Contained, Built in Storage Bin ice maker stores up to 53 lbs of ice*, which makes it ideal for small bars, hotel lobbies, and office break rooms. It features the CycleSaver™ design and includes the EverCheck™ alert system making the unit simple to maintain. The KM-101BAH requires a Single phase, 115v/60/1 electrical connection. Ice maker with built in storage. ENERGY STAR qualified. Please consult the Specification Sheet for additional details.*Rated in accordance with AHRI Standard 820(I-P). Capacity based on 100% of total volume x 30 lb/ft3 average density of ice.

Additional information

Weight 136 lbs
Dimensions 24-14 x 23-34 x 39 in
Height

Width

Depth

Shipping Weight

Certifications:

Energy Star® Qualified:

Electrical Specs:

Plumbing Specs:

Utility Consumption:

Operating Limits:
