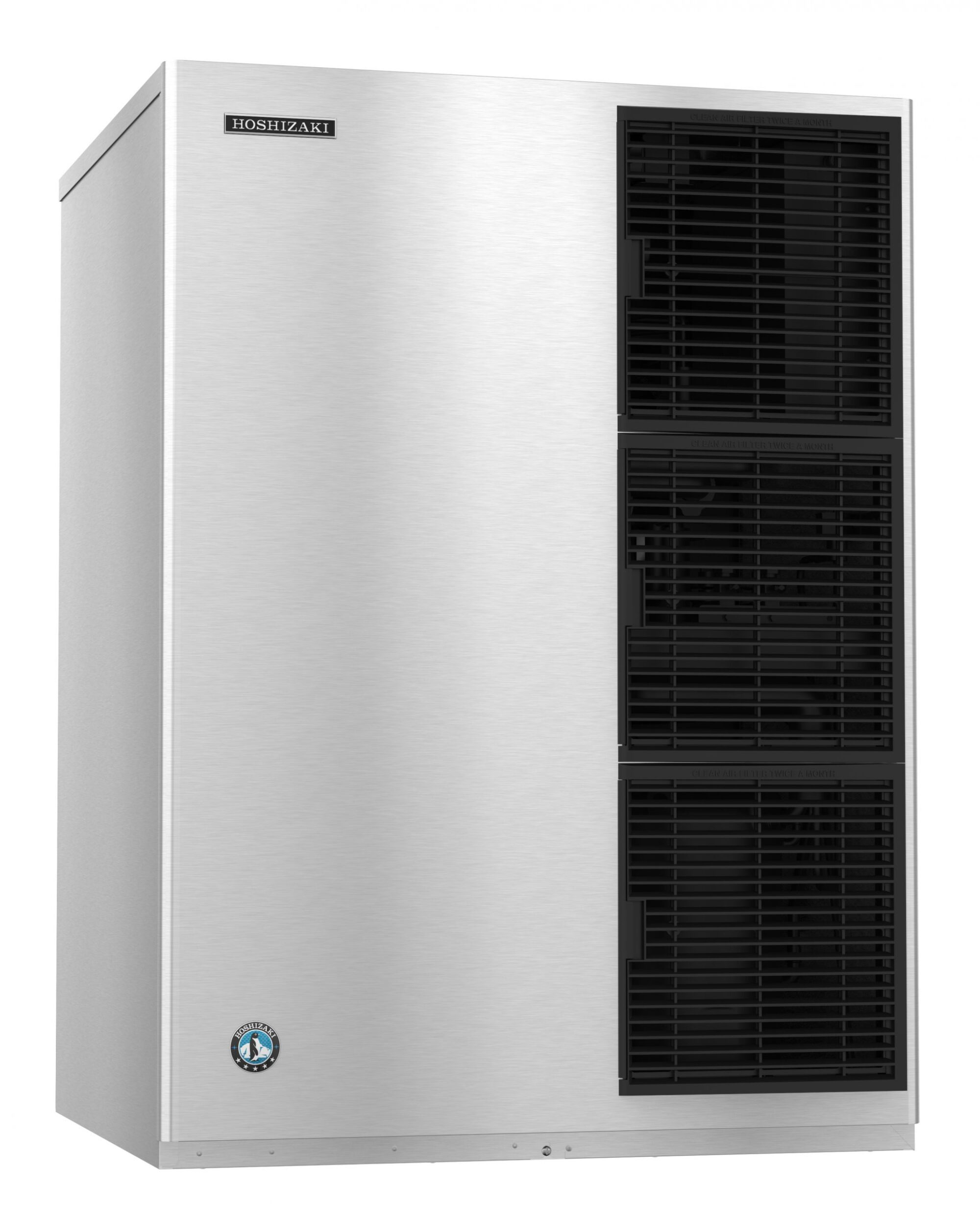

KM-1340MAJ, Crescent Cuber Icemaker, Air-cooled

REQUEST A QUOTE

  • Dimensions: 30″ W x 27-3/8″ D x 41-1/2″ H
  • Up to 1275 lbs of ice produced per 24 hours
  • Mount 2 units side-by-side for 2x the ice production
  • Produces crescent shaped ice cubes
  • Durable stainless steel exterior

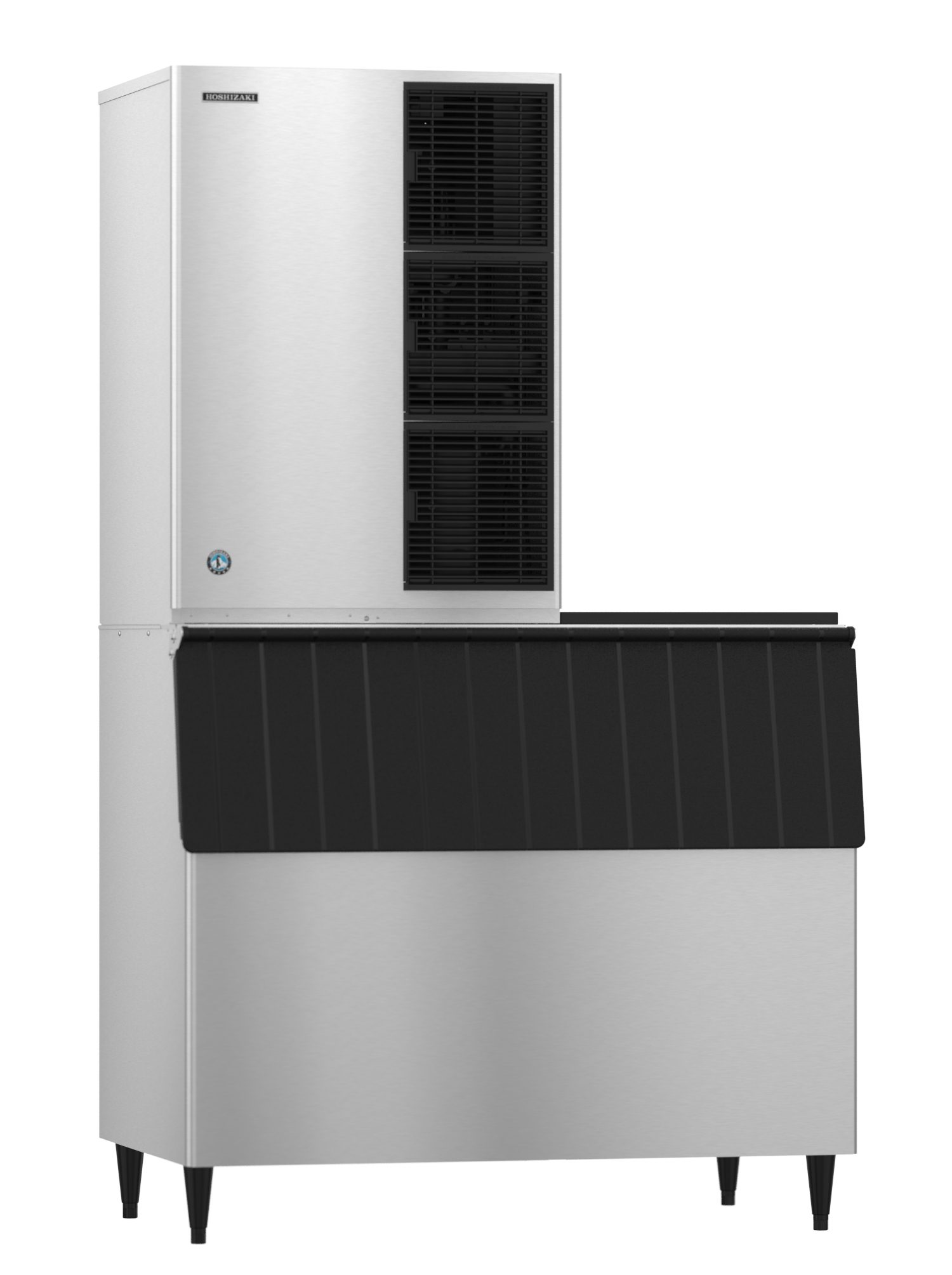

  • Compatible bins & dispensers, sold separately: B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650
  • EverCheck™ alert system
  • CycleSaver™ design
  • R-404A refrigerant (4 lbs. 10.1 oz. / 2100 g)
  • Protected by H-GUARD Plus Antimicrobial Agent
  • Ambient temperature range: 45 – 100°F
  • Water temperature range: 45 – 90°F
  • Water pressure: 10 – 113psig
  • Voltage range: 187 – 253V
  • 13.2 amps (20 Amp Max fuse)
  • 4.81 kwh/100 lbs.@ 90/70
  • Single phase, 208-230v/60/1, 4 wire, including ground. If neutral is not available transformer kit (HS-5030) is required
  • Clean ice and easy maintenance lead to longer unit life span
  • Three Years: Parts & Labor warranty on entire machine.
  • Five Years: Parts & Labor warranty on evaporator.
SKU: KM-1340MAJ Categories: , , , , Tag:

LIBRARY

Description

The KM-1340MAJ is capable of producing approximately 1275 lbs of crescent cubed ice. Hoshizaki’s efficient double-sided stainless steel evaporators create the unique crescent shaped ice cubes. It is the purest and hardest ice on the market and is a perfect fit for a wide range of applications. This Air-cooled, Modular icemaker features a CycleSaver™ design and includes the EverCheck™ alert system making the unit energy efficient and simple to maintain. The KM-1340MAJ requires a Single phase, 208-230v/60/1, 4 wire, including ground. If neutral is not available transformer kit (HS-5030) is required electrical connection that is hard-wired at the installation site. Compatible bins & dispensers, sold separately: B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650. Please consult the Specification Sheet for additional details. Replaces KM-1340MWH.

Additional information

Weight 315 lbs
Dimensions 27-38 x 30 x 41-12 in
Height
Width
Depth
Shipping Weight

Certifications:
Energy Star® Qualified:
Electrical Specs:

Plumbing Specs:
Utility Consumption:
Operating Limits:
