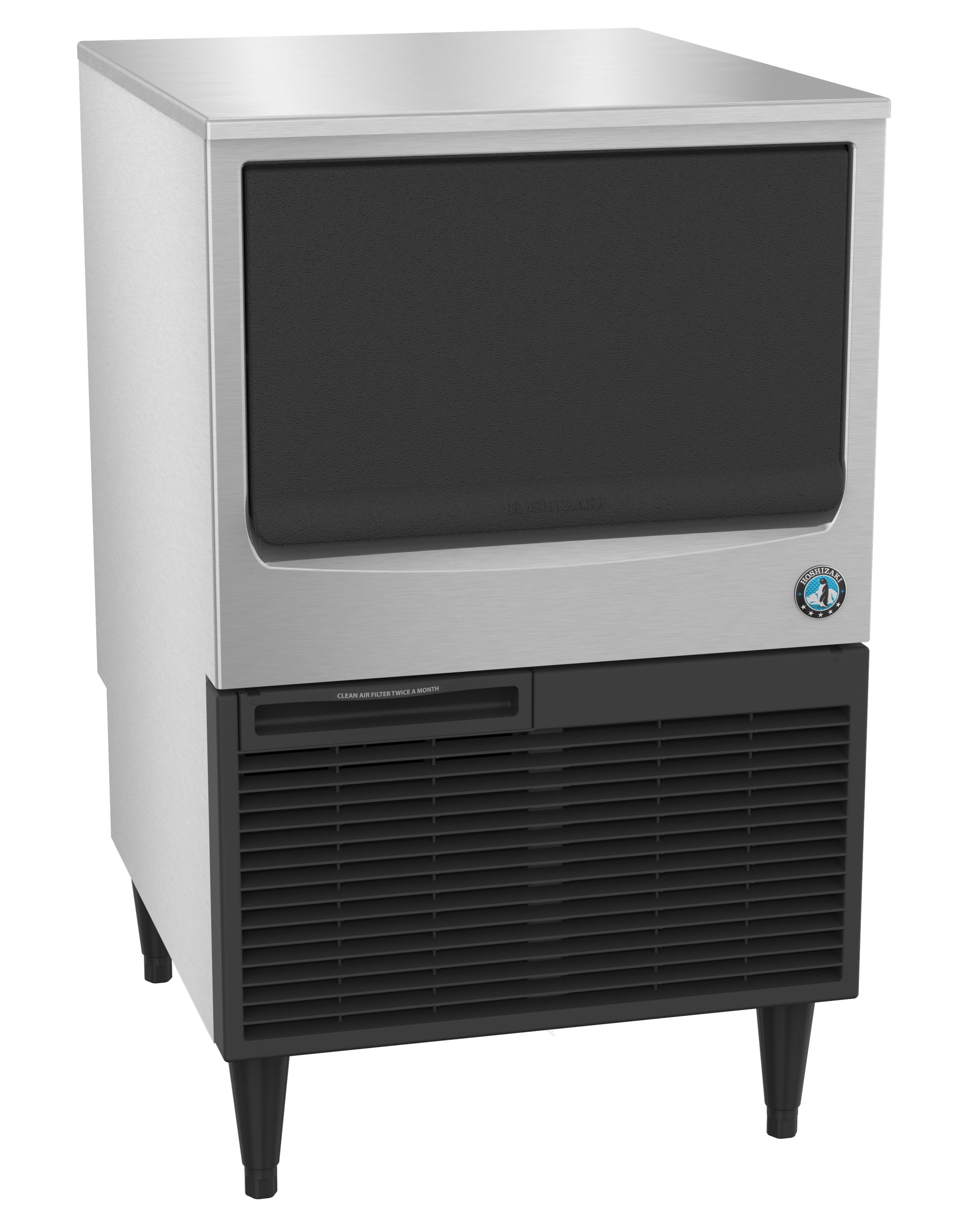

KM-151BAH, Ice Maker, Air-cooled, Self Contained, Built in Storage Bin

  • Dimensions: 23-3/4″ W x 28-1/4″ D x 39″ H
  • Up to 146 lbs of ice produced per 24 hours
  • Up to 78 lbs of built-in storage capacity
  • Produces crescent ice
  • Slide in door with durable stainless steel exterior
  • Ice maker with built in storage
  • EverCheck™ alert system
  • CycleSaver™ design
  • R-134a refrigerant
  • Power switch accessible without panel removal
  • Ambient temperature range: 45 – 100°F
  • Water temperature range: 45 – 90°F
  • Water pressure: 10 – 113psig
  • Voltage range: 104 – 127V
  • 7 amps (15 Amp Max fuse)
  • 8.4 kwh/100 lbs.@ 90/70
  • Single phase, 115v/60/1
  • ENERGY STAR Qualified
  • Three Years: Parts & Labor warranty on entire machine.
  • Five Years: Parts & Labor warranty on evaporator.

LIBRARY

DESCRIPTION

The KM-151BAH is capable of producing approximately 146 lbs of crescent cubed ice. This Undercounter Air-cooled, Self Contained, Built in Storage Bin ice maker stores up to 78 lbs of ice, which makes it ideal for small bars, hotel lobbies, and office break rooms. It features the CycleSaver™ design and includes the EverCheck™ alert system making the unit simple to maintain. The KM-151BAH requires a Single phase, 115v/60/1 electrical connection. Ice maker with built in storage. ENERGY STAR qualified. Please consult the Specification Sheet for additional details.

SPECIFICATIONS

Weight 150 lbs lbs
Dimensions 28-1/4" D x 23-3/4" W x 39" H in
Height

39″ H

Width

23- 3/4 ” W

Depth

28- 1/4 ” D

Shipping Weight

150 lbs

Certifications:

AHRI Standard 810, NSF, ISO 9001:14001, ETL Sanitation Listed, ENERGY STAR Qualified

Energy Star® Qualified:

Yes

Electrical Specs:

Single phase, 115v/60/1 Amperage: 7, Max Fuse/HACR Breaker: 15 A

Plumbing Specs:

1/2″ FPT Inlet, Minimum 3/8″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Drain Hard Pipe or Equivalent

Utility Consumption:

8.4 kWh per 100 lbs @ 90/70, 17.8 gal of Potable Water per 100 lbs @ 90/70

Operating Limits:

Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 104 – 127V
