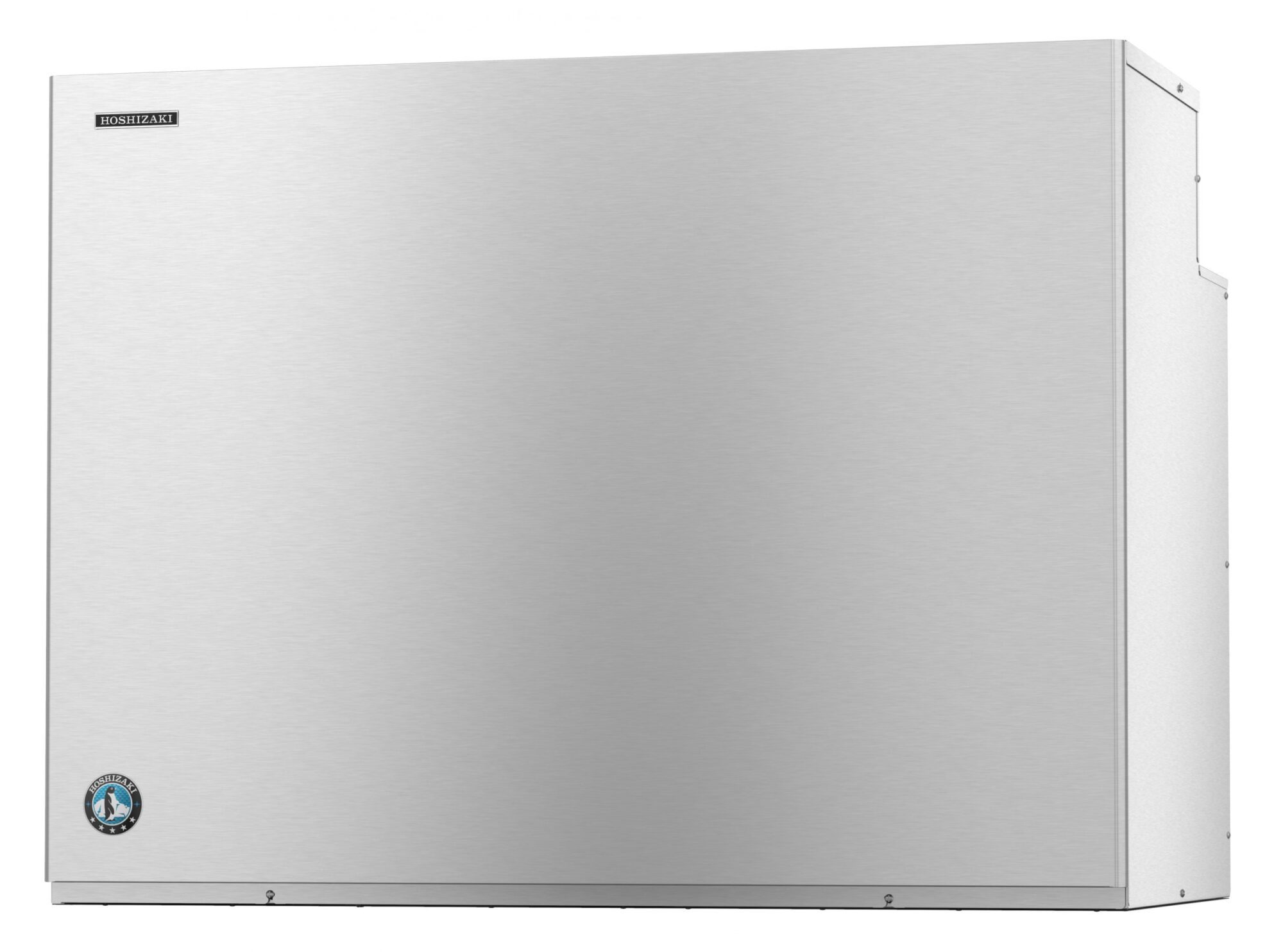

Name: KM-2100SRJ3 with URC-22F, Ice Maker, Remote-cooled with URC-22F (Sold Separately)
SKU: KM-2100SRJ3
Availability: OutOfStock

SPEC SHEET

KM-2100SRJ3 with URC-22F, Ice Maker, Remote-cooled with URC-22F (Sold Separately)

REPLACED BY KM-2200SRJ3

Dimensions: 48″ W x 27-3/8″ D x 36- 7/16″ H
Up to 2115 lbs of ice produced per 24 hours
Stack 2 units for 2x the ice production
Produces crescent shaped ice cubes
Durable stainless steel exterior
Compatible bins & dispensers, sold separately: B-800, B-900, B-1150, B-1300, B-1500, B-1650
EverCheck alert system
CycleSaver design
R-404A refrigerant ( / )
Protected by H-GUARD Plus Antimicrobial Agent
Ambient temperature range: 45 – 100°F
Water temperature range: 45 – 90°F
Water pressure: 10 – 113psig
Voltage range: 187 – 253V
10.5 amps (20 Amp Max fuse)
4.16 kwh/100 lbs.@ 90/70
Three phase, 208-230v/60/3
ENERGY STAR® qualified
Three Years: Parts & Labor warranty on entire machine.
Five Years: Parts & Labor warranty on evaporator.

Out of stock

SKU: KM-2100SRJ3 Categories: Ice, Ice Maker, Crescent Cuber, Remote AC, Stackable Tags: 3phase, KM Edge

LIBRARY

Service Literature

Specification Sheet Instruction Manual Parts Manual CAD/Revit Files Warranty Statement

Sales Literature

Price List Sales Catalog

Description

The KM-2100SRJ3 is capable of producing approximately 2115 lbs of crescent cubed ice, Stack 2 units for 2x the ice production in the same floor space! Our efficient double-sided KMEdge stainless steel evaporators create our unique crescent shaped ice cubes. It is the purest and hardest ice on the market and is a perfect fit for a wide range of applications. This Remote-cooled with URC-22F (Sold Separately) icemaker features a CycleSaver design and includes the EverCheck alert system making the unit energy efficient and simple to maintain. The KM-2100SRJ3 requires a Three phase, 208-230v/60/3 electrical connection that is hard-wired at the installation site. Remote condenser sold separately. Compatible bins & dispensers, sold separately: B-800, B-900, B-1150, B-1300, B-1500, B-1650. ENERGY STAR® qualified. Please consult the Specification Sheet for additional details.

Additional information

Weight	440 lbs
Dimensions	27-38 x 48 x 36-716 in
Height	36- 7/16" H
Width	48" W
Depth	27-3/8" D
Shipping Weight	440 lbs
Certifications:	AHRI Standard 810, NSF, UL Listed, ISO 9001:14001, ENERGY STAR Qualified
Energy Star® Qualified:	Yes
Electrical Specs:	Three phase, 208-230v/60/3 , Amperage: 10.5, Max Fuse/HACR Breaker: 20 A
Plumbing Specs:	1/2" FPT Inlet, Minimum 3/8" Nominal ID Copper Water Tubing or Equivalent, 3/4" FPT Outlet, Minimum 3/4" Nominal ID Drain Hard Pipe or Equivalent
Utility Consumption:	4.16 kWh per 100 lbs @ 90/70, 19 gal of Potable Water per 100 lbs @ 90/70
Operating Limits:	Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 187 – 253V, Refrigerant Charge: R-404a, ( / )
