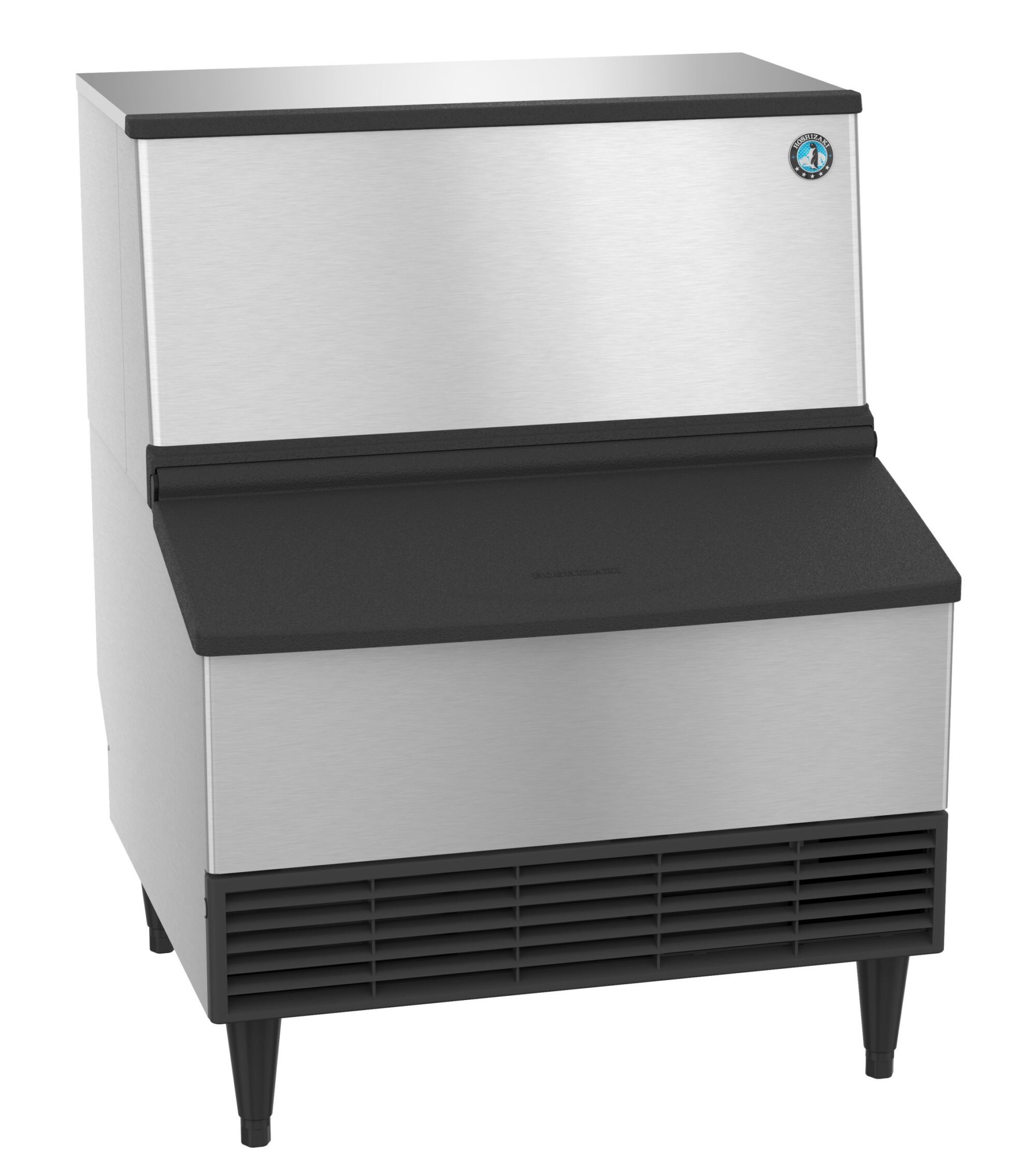

KM-260BAH, Ice Maker, Air-cooled, Self Contained, Built in Storage Bin

  • Dimensions: 30″ W x 28″ D x 39″ H
  • Up to 263 lbs of ice produced per 24 hours
  • Up to 100 lbs of built-in storage capacity
  • Produces crescent ice
  • Durable stainless steel exterior
  • Ice maker with built in storage
  • EverCheck™ alert system
  • CycleSaver™ design
  • R-404a refrigerant
  • Ice bin opening is ADA compliant
  • Ambient temperature range: 45 – 100°F
  • Water temperature range: 45 – 90°F
  • Water pressure: 10 – 113psig
  • Voltage range: 104 – 127V
  • 7.6 amps (15 Amp Max fuse)
  • 7.6 kwh/100 lbs.@ 90/70
  • Single phase, 115v/60/1
  • ENERGY STAR Qualified
  • Three Years: Parts & Labor warranty on entire machine.
  • Five Years: Parts & Labor warranty on evaporator.

LIBRARY

DESCRIPTION

The KM-260BAH is capable of producing approximately 263 lbs of crescent cubed ice. This Undercounter Air-cooled, Self Contained, Built in Storage Bin ice maker stores up to 100 lbs of ice, which makes it ideal for small bars, hotel lobbies, and office break rooms. It features the CycleSaver™ design and includes the EverCheck™ alert system making the unit simple to maintain. The KM-260BAH requires a Single phase, 115v/60/1 electrical connection. Ice maker with built in storage. ENERGY STAR qualified. Please consult the Specification Sheet for additional details.

SPECIFICATIONS

Weight 215 lbs lbs
Dimensions 28" D x 30" W x 39" H in
Height

39″ H

Width

30″ W

Depth

28″ D

Shipping Weight

215 lbs

Certifications:

AHRI Standard 810, NSF, ISO 9001:14001, ETL Sanitation Listed, ADA Compliant, ENERGY STAR Qualified

Energy Star® Qualified:

Yes

Electrical Specs:

Single phase, 115v/60/1 Amperage: 7.6, Max Fuse/HACR Breaker: 15 A

Plumbing Specs:

1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Hard Pipe or Equivalent

Utility Consumption:

7.6 kWh per 100 lbs @ 90/70, 20.3 gal of Potable Water per 100 lbs @ 90/70

Operating Limits:

Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 104 – 127V
