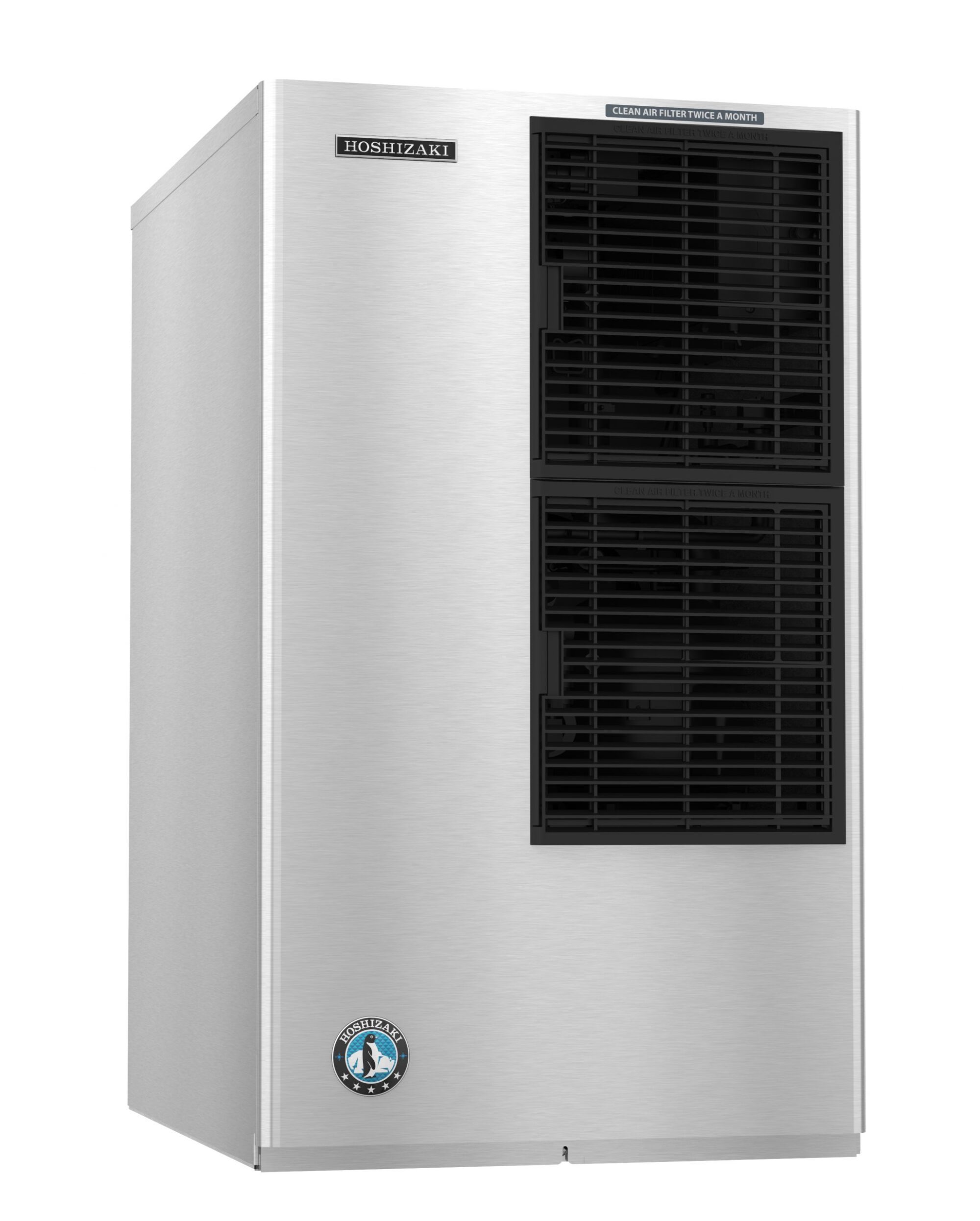

KM-650MAH, Ice Maker, Air-cooled, Slim Line Modular

  • Dimensions: 22″ W x 27-3/8″ D x 37-7/16″ H
  • Up to 520 lbs of ice produced per 24 hours
  • Mount 2 units side-by-side for 2x the ice production
  • Produces crescent ice
  • Durable stainless steel exterior
  • Compatible bins & dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, DB-130H, DB-200H, DM-200B
  • EverCheck™ alert system
  • CycleSaver™ design
  • R-404a refrigerant
  • Protected by H-GUARD Plus Antimicrobial Agent
  • Ambient temperature range: 45 – 100°F
  • Water temperature range: 45 – 90°F
  • Water pressure: 10 – 113psig
  • Voltage range: 187 – 253V
  • 7.2 amps (15 Amp Max fuse)
  • 5.51 kwh/100 lbs.@ 90/70
  • Single phase, 208-230v/60/1
  • ENERGY STAR Qualified
  • Three Years: Parts & Labor warranty on entire machine.
  • Five Years: Parts & Labor warranty on evaporator.
SKU: KM-650MAH Categories: , , , ,

LIBRARY

DESCRIPTION

The KM-650MAH is capable of producing approximately 520 lbs of crescent cubed ice, Mount 2 units side-by-side for 2x the ice production in the same floor space! Our efficient double-sided stainless steel evaporators create our unique crescent shaped ice cubes. It is the purest and hardest ice on the market and is a perfect fit for a wide range of applications. This Air-cooled, Slim Line Modular ice maker features a CycleSaver™ design and includes the EverCheck™ alert system making the unit energy efficient and simple to maintain. The KM-650MAH requires a Single phase, 208-230v/60/1 electrical connection that is hard-wired at the installation site. Compatible bins & dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, DB-130H, DB-200H, DM-200B. ENERGY STAR qualified. Please consult the Specification Sheet for additional details.

SPECIFICATIONS

Weight 200 lbs lbs
Dimensions 27-3/8" D x 22" W x 37-7/16" H in
Height

37- 7/16″ H

Width

22″ W

Depth

27- 3/8 ” D

Shipping Weight

200 lbs

Certifications:

AHRI Standard 810, NSF, UL Listed, ISO 9001:14001, ENERGY STAR Qualified

Energy Star® Qualified:

Yes

Electrical Specs:

Single phase, 208-230v/60/1 , Amperage: 7.2, Max Fuse/HACR Breaker: 15 A

Plumbing Specs:

1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Hard Pipe or Equivalent

Utility Consumption:

5.51 kWh per 100 lbs @ 90/70, 18 gal of Potable Water per 100 lbs @ 90/70

Operating Limits:

Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 187 – 253V
