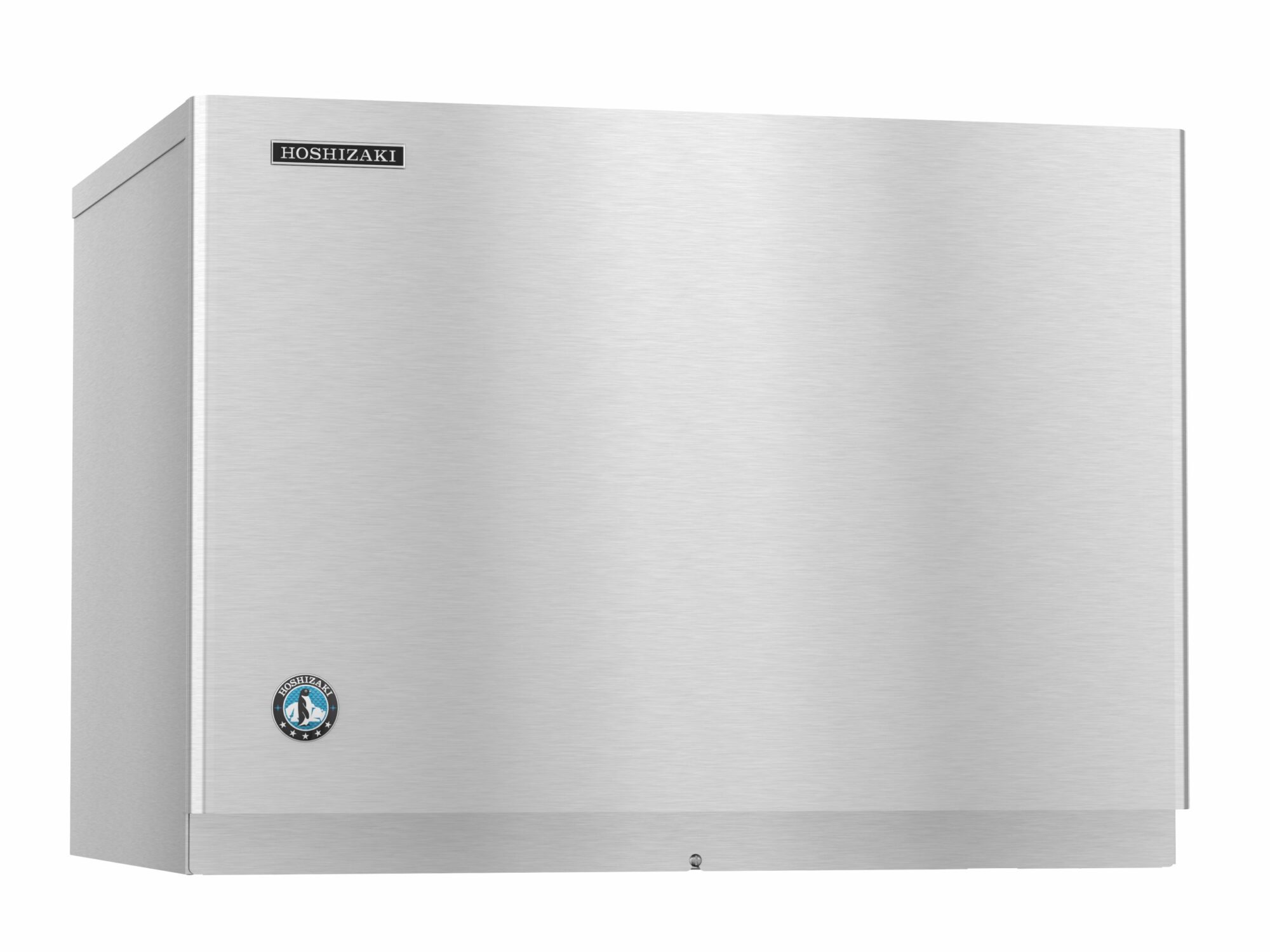

KMD-460MAH, Crescent Cuber Icemaker, Air-cooled

REQUEST A QUOTE

  • Dimensions: 30″ W x 24-1/4″ D x 22-1/8″ H
  • Up to 457 lbs of ice produced per 24 hours
  • Air-cooled, Modular, 30″ Wide Icemaker
  • Produces crescent shaped ice cubes
  • Durable stainless steel exterior

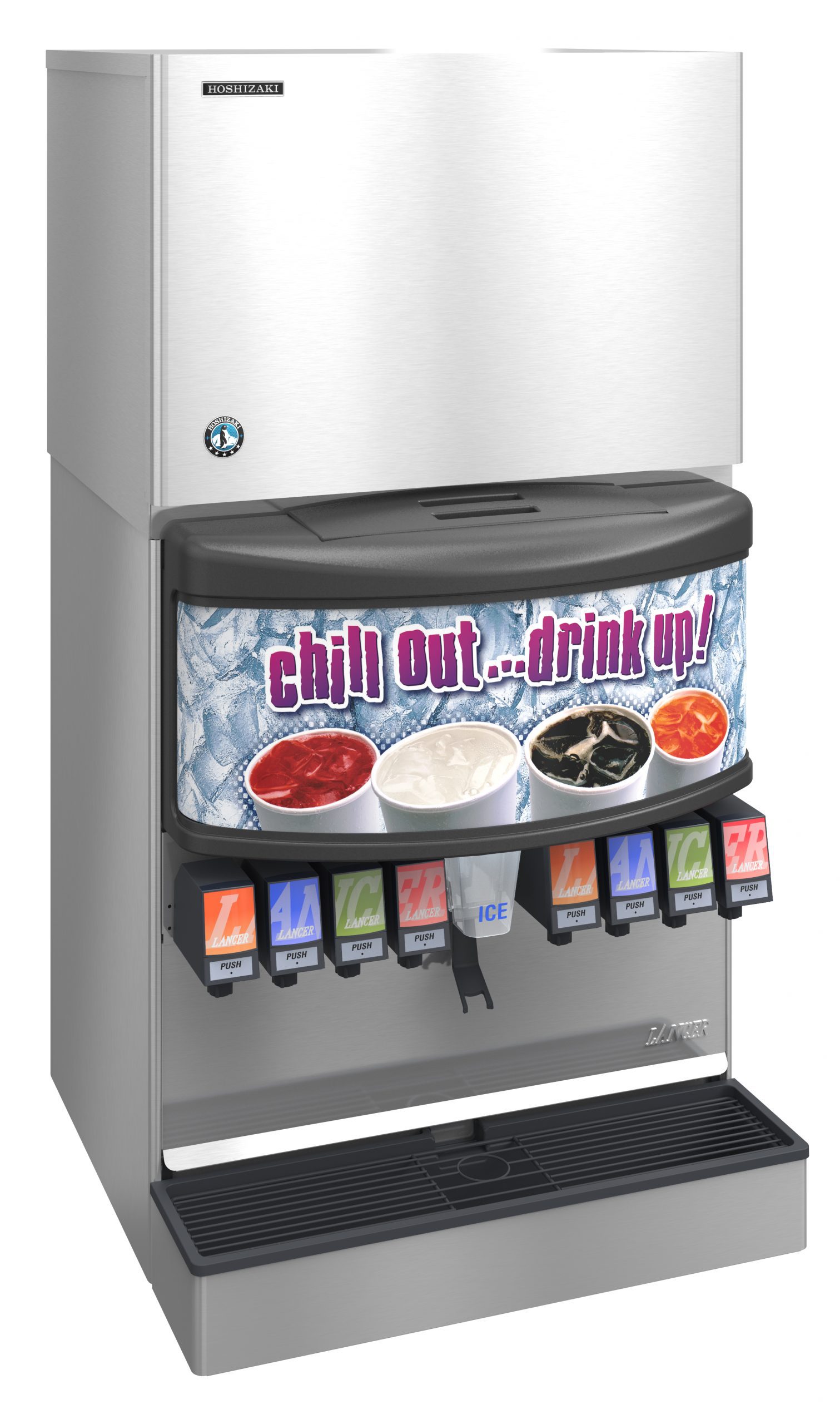

  • Compatible bins & dispensers, sold separately: B-250, BD-500, B-700, B-800, B-900, B-1300, B-1150
  • EverCheck™ alert system
  • CycleSaver™ design
  • Protected by H-GUARD Plus Antimicrobial Agent
  • R-404A refrigerant (1 lb. 5.2 oz. / 600 g)
  • Heat Rejection:7700 BTU/hr
  • Ambient temperature range: 45 – 100°F
  • Water temperature range: 45 – 90°F
  • Water pressure: 10 – 113psig
  • Voltage range: 104 – 127V
  • 10 amps (15 Amp Max fuse)
  • 5.48 kwh/100 lbs.@ 90/70
  • Single phase, 115v/60/1, 3 wire, including ground
  • Clean ice and easy maintenance lead to longer unit life span
  • Three Years: Parts & Labor warranty on entire machine.
  • Five Years: Parts & Labor warranty on evaporator.
SKU: KMD-460MAH Categories: , , , ,

LIBRARY

Description

The KMD-460MAH is capable of producing approximately 457 lbs of crescent cubed ice. Our efficient stainless steel evaporators create our unique crescent shaped ice cubes. Its ice on beverage design makes it ideal for use in busy self-serve areas, fast food restaurants, employee break rooms and more. This Air-cooled, Modular icemaker features a CycleSaver™ design and includes the EverCheck™ alert system making the unit energy efficient and simple to maintain. The KMD-460MAH requires a Single phase, 115v/60/1, 3 wire, including ground electrical connection that is hard-wired at the installation site. Compatible bins & dispensers, sold separately: B-250, BD-500, B-700, B-800, B-900, B-1300, B-1150. Please consult the Specification Sheet for additional details.

Additional information

Weight 170 lbs
Dimensions 30" W X 24-1/4" D X 22-1/8" H in
Height 22-1/8" H
Width 30" W
Depth 24-1/4" D
Shipping Weight 170 lbs
Warranty Valid in United States, Canada, Puerto Rico, & U.S. Territories. Contact factory for warranty in other countries.|Three Years: Parts & Labor warranty on entire machine.|Five Years: Parts & Labor warranty on evaporator.|Five Years: Parts warranty on Compressor, air-cooled condenser coil.
Certifications: AHRI Standard 810, NSF, UL Listed, ISO 9001:14001
Energy Star® Qualified: No
Electrical Specs: Single phase, 115v/60/1, 3 wire, including ground, Amperage: 10, Max Fuse/HACR Breaker: 15 A
Plumbing Specs: 1/2" FPT Inlet, Minimum 1/4" Nominal ID Copper Water Tubing or Equivalent, 3/4" FPT Outlet, Minimum 3/4" Nominal ID Hard Pipe or Equivalent
Utility Consumption: 5.48 kWh per 100 lbs @ 90/70, 18.9 gal of Potable Water per 100 lbs @ 90/70
Operating Limits: Ambient Temp Range: 45 - 100°F, Water Temp Range: 45 - 90°F, Water Pressure: 10 - 113psig, Voltage Range: 104 - 127V, Heat Rejection: 7700 BTU/hr, Refrigerant Charge: R-404A, (1 lb. 5.2 oz. / 600 g)
