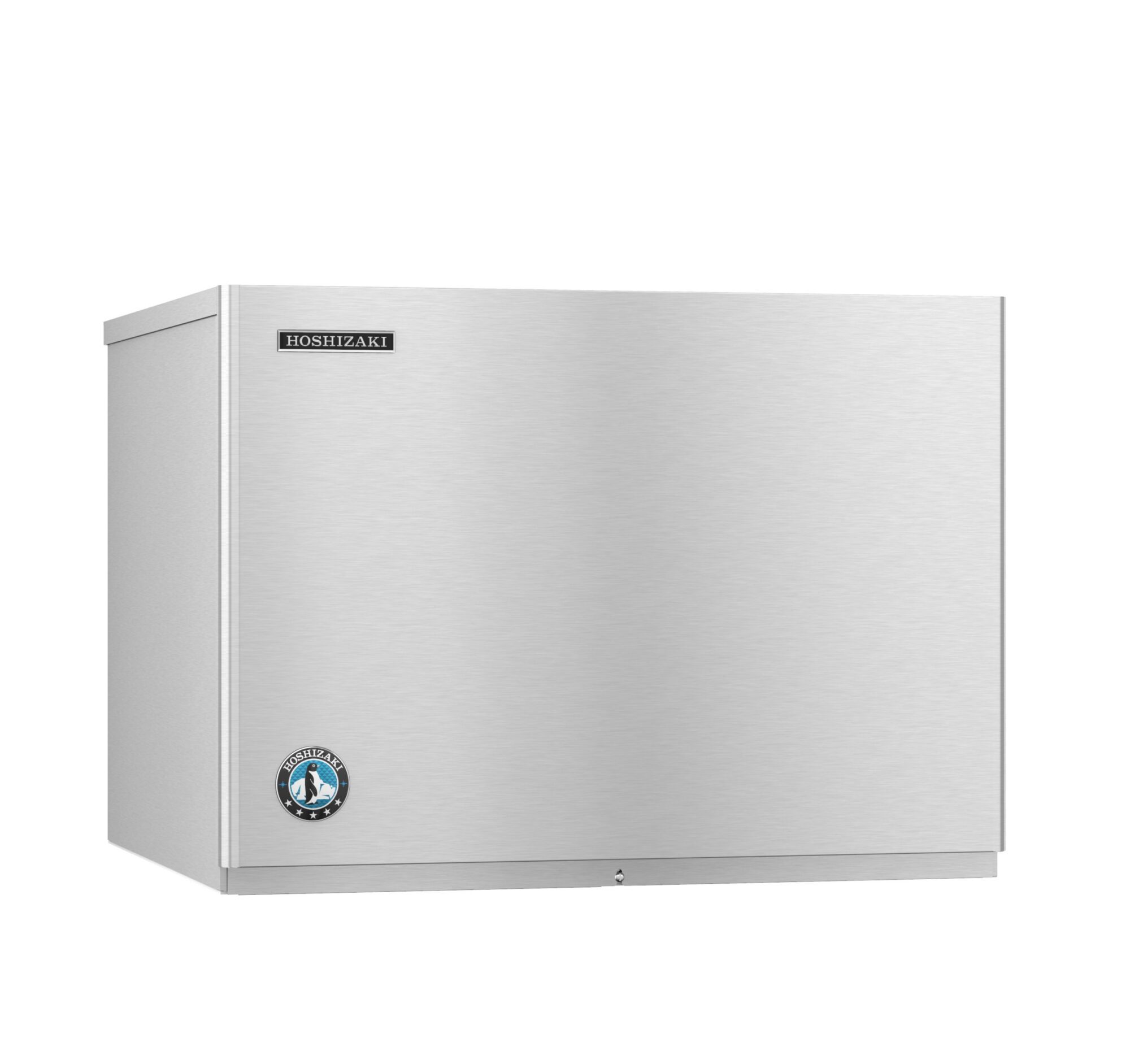

KML-500MWJ, Crescent Cuber Icemaker, Water-cooled

REQUEST A QUOTE

  • Dimensions: 30″ W x 27-3/8″ D x 22″ H
  • Up to 543 lbs of ice produced per 24 hours
  • Mount 2 units side-by-side for 2x the ice production
  • Produces crescent shaped ice cubes
  • Durable stainless steel exterior
  • Compatible bins & dispensers, sold separately: B-250, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650, DB-200H, DM-200B
  • EverCheck™ alert system
  • CycleSaver™ design
  • Protected by H-GUARD Plus Antimicrobial Agent
  • R-404A refrigerant (15.9 oz. / 450 g)
  • Heat Rejection: BTU/hr
  • Ambient temperature range: 45 – 100°F
  • Water temperature range: 45 – 90°F
  • Water pressure: 10 – 113psig
  • Voltage range: 104 – 127V
  • 9.6 amps (20 Amp Max fuse)
  • 4.33 kwh/100 lbs.@ 90/70
  • Single phase, 115v/60/1, 3 wire, including ground
  • Clean ice and easy maintenance lead to longer unit life span
  • Three Years: Parts & Labor warranty on entire machine.
  • Five Years: Parts & Labor warranty on evaporator.
SKU: KML-500MWJ Categories: , , , , Tags: ,

LIBRARY

Description

The KML-500MWJ is capable of producing approximately 543 lbs of Crescent style ice cubes per day, and the built-in dispensing system holds up to lbs of insulated storage to ensure you always have enough ice on hand! This commercial Water-cooled icemaker is the only one-piece dispenser design on the market! This makes it easy to install and service, and a quiet operating system makes it ideal for use in hotels and similar applications. EverCheck™ alert system and is Protected by H-GUARD Plus Antimicrobial Agent. This sanitary icemaker/dispenser features a user-friendly dispensing mechanism that allows clean, individual, crescent ice cubes to be dispensed with a simple push of a button. This model features CycleSaver™ design and is Clean ice and easy maintenance lead to longer unit life span. The KML-500MWJ requires a Single phase, 115v/60/1, 3 wire, including ground electrical connection and comes with a cord and plug. Please consult the Specification Sheet for additional details.

Additional information

Weight 185 lbs
Dimensions 30" W X 27-3/8" D X 22" H in
Height 22" H
Width 30" W
Depth 27-3/8" D
Shipping Weight 185 lbs
Warranty Valid in United States, Canada, Puerto Rico, & U.S. Territories. Contact factory for warranty in other countries.|Three Years: Parts & Labor warranty on entire machine.|Five Years: Parts & Labor warranty on evaporator.|Five Years: Parts warranty on Compressor, air-cooled condenser coil.
Certifications: AHRI Standard 810, NSF, UL Listed, ISO 9001:14001
Energy Star® Qualified: No
Electrical Specs: Single phase, 115v/60/1, 3 wire, including ground, Amperage: 9.6, Max Fuse/HACR Breaker: 20 A
Plumbing Specs: 1/2" FPT Inlet, Minimum 1/4" Nominal ID Copper Water Tubing or Equivalent, 3/8" FPT Outlet, Minimum 1/4" Nominal ID Drain Hard Pipe or Equivalent, Minimum 1/4" Nominal ID Drain Hard Pipe or Equivalent
Utility Consumption: 4.33 kWh per 100 lbs @ 90/70, 16 gal of Potable Water per 100 lbs @ 90/70
Operating Limits: Ambient Temp Range: 45 - 100°F, Water Temp Range: 45 - 90°F, Water Pressure: 10 - 113psig, Voltage Range: 104 - 127V, Heat Rejection: BTU/hr, Refrigerant Charge: R-404A, (15.9 oz. / 450 g)
