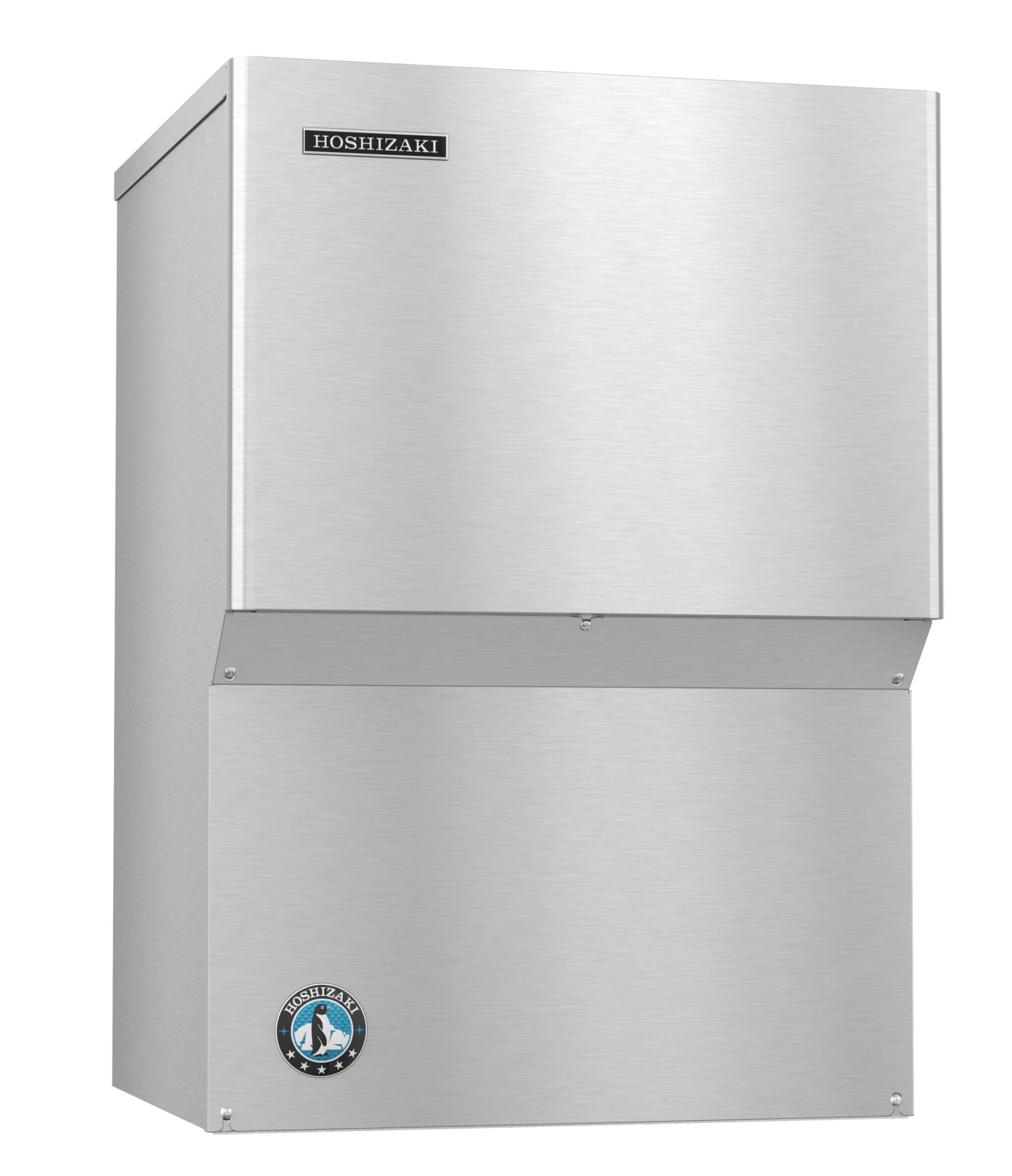

KMS-1122MLH with SRK-12H, Crescent Cuber Icemaker, Remote-cooled, Serenity Series

REQUEST A QUOTE

Out of stock

REPLACED BY KMS-1122MLJ

  • Dimensions: 22″ W x 18″ D x 31-1/4″ H
  • Up to 1100 lbs of ice produced per 24 hours
  • Remote-cooled, Serenity Series
  • Produces crescent shaped ice cubes
  • Durable stainless steel exterior
  • Compatible bins & dispensers, sold separately: Beverage Dispensers
  • EverCheck™ alert system
  • CycleSaver™ design
  • CFC / HFC free foam
  • R-404A refrigerant (7.1 oz. / 200 g)
  • Heat Rejection:21300 BTU/hr
  • Ambient temperature range: 45 – 100°F
  • Water temperature range: 45 – 90°F
  • Water pressure: 10 – 113psig
  • Voltage range: 187 – 253V
  • 11.2 amps (20 Amp Max fuse)
  • 4.65 kwh/100 lbs.@ 90/70
  • Single phase, See Remote Condenser, *115V supply for the KMS Ice Maker is supplied from the 230V SRK Remote Condenser
  • Clean ice and easy maintenance lead to longer unit life span
  • Three Years: Parts & Labor warranty on entire machine.
  • Five Years: Parts & Labor warranty on evaporator.

Out of stock

SKU: KMS-1122MLH Categories: , , , ,

LIBRARY

Description

The KMS-1122MLH with SRK-12H remote condenser is capable of producing approximately 1100 lbs of crescent cubed ice. Our efficient stainless steel evaporator creates our unique crescent shaped ice cubes. Its ice on beverage design makes it ideal for use in cafeterias, restaurants, and other foodservice applications. This Remote-cooled, Serenity Series icemaker features a CycleSaver™ design and includes the EverCheck™ alert system making the unit energy efficient and simple to maintain. The KMS-1122MLH requires a Single phase, See Remote Condenser, *115V supply for the KMS Ice Maker is supplied from the 230V SRK Remote Condenser electrical connection that is hard-wired at the installation site. Remote condenser sold separately. Compatible bins & dispensers, sold separately: Beverage Dispensers. Please consult the Specification Sheet for additional details.

Additional information

Weight 275 lbs
Dimensions 22" W X 18" D X 31-1/4" H in
Height 31-1/4" H
Width 22" W
Depth 18" D
Shipping Weight 275 lbs
Warranty Valid in United States, Canada, Puerto Rico, & U.S. Territories. Contact factory for warranty in other countries.|Three Years: Parts & Labor warranty on entire machine.|Five Years: Parts & Labor warranty on evaporator.|Five Years: Parts warranty on Compressor, air-cooled condenser coil.
Certifications: AHRI Standard 810, NSF, UL Listed, ISO 9001:14001
Energy Star® Qualified: No
Electrical Specs: Single phase, See Remote Condenser, *115V supply for the KMS Ice Maker is supplied from the 230V SRK Remote Condenser, Amperage: 11.2, Max Fuse/HACR Breaker: 20 A
Plumbing Specs: 1/2" FPT Inlet, Minimum 3/8" Nominal ID Copper Water Tubing or Equivalent, 3/4" FPT Outlet, Minimum 3/4" Nominal ID Hard Pipe or Equivalent
Utility Consumption: 4.65 kWh per 100 lbs @ 90/70, 19.5 gal of Potable Water per 100 lbs @ 90/70
Operating Limits: Ambient Temp Range: 45 - 100°F, Water Temp Range: 45 - 90°F, Water Pressure: 10 - 113psig, Voltage Range: 187 - 253V, Heat Rejection: 21300 BTU/hr, Refrigerant Charge: R-404A, (7.1 oz. / 200 g)
