  • PTR2SSB-FGFG

ADD TO COMPARE

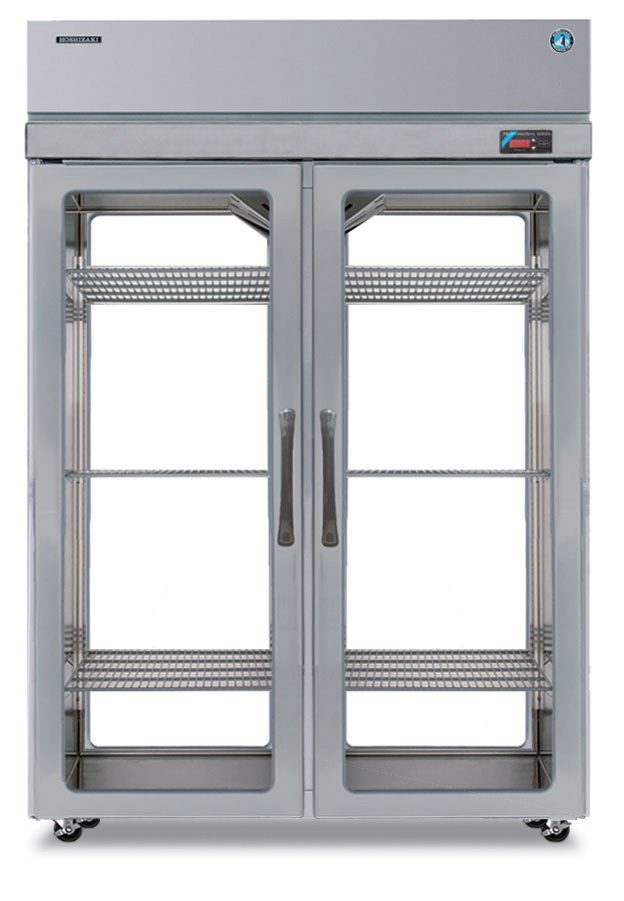

PTR2SSB-FGFG, Refrigerator, Pass Thru Upright, Two Section, Full Glass Door

DISCONTINUED

  • Dimensions: 55″ W x 35.9″ D x 82.5″ H
  • Net capacity of 51.3 cubic feet
  • Nominal Compres. of 5200 BTU/hr at 3/4 HP
  • Electrical consumption of 8.8 kWh/day, at 12.8 Amps on a 5 – 15P NEMA Plug
  • Exclusive “stepped” door design to protect recessed door gasket
  • Spring assisted self closing lockable doors, with stay open feature (field reversible with optional kit)
  • Flush mount door handles
  • Innovative Variable Speed Compressor with “adaptive control” technology
  • Energy efficient thermostatic expansion valve self contained refrigeration system
  • Insulated with 2 3/8″ CFC free, foamed in place polyurethane
  • Stainless steel interior and exterior
  • EverCheck digital control system with audio and visual alarms
  • R-404a refrigerant
  • Dual door frame heaters with energy saving on/off switch
  • Epoxy coated evaporator coil for extended life
  • Includes 6 epoxy coated shelves
  • Epoxy coated wire shelves adjustable in 1″ increments on stainless steel supports
  • Standard with (4) 4″ HD Casters (2 with brakes)
  • Unique “ducted” air distribution system
  • 115v/60/1, 8 ft. cord and plug
  • Shipping Crate: 59 “W x 39 “D x 85 “H at 700 lbs
  • Energy efficient automatic hot gas condensate evaporator
  • Five Years compressor warranty, Three Years parts and labor warranty

Out of stock

SKU: PTR2SSB-FGFG Categories: , , , Tag:

LIBRARY

DESCRIPTION

The PTR2SSB-FGFG Professional Series Upright Pass Thru Refrigerator with a Full Glass Door and Flush mount door handles is perfect for any professional. The reliable 3/4 HP motor that powers the compressor in the top of this unit provides the cabinet with a continuous stream of cool air, ensuring a steady constant temperature. The PTR2SSB-FGFG frame is composed of stainless steel, a material that resists the random damage normal in a commercial kitchen or business. Plus, it is easy to clean. The PTR2SSB-FGFG Includes 6 epoxy coated shelves, and comes Standard with (4) 4″ HD Casters (2 with brakes), it features Spring assisted self closing lockable doors, with stay open feature (field reversible with optional kit). The unit is NSF, cETLus Listed, ISO 9001:14001 and includes a Five Years compressor warranty / Three Years parts and labor warranty.

SPECIFICATIONS

Weight 700 lbs lbs
Dimensions 35.9" D x 55" W x 82.5" H in
Height

82.5″ H

Width

55″ W

Depth

35.9″ D

Shipping Weight

700 lbs

Certifications:

NSF, cETLus Listed, ISO 9001:14001

Energy Star® Qualified:

No

Electrical Specs:

Electrical Connection: 5 – 15P NEMA, 115v/60/1, 8 ft. cord and plug, Energy Consumption: 8.8 kwh/day, Amperage: 12.8, Max Fuse/HACR Breaker: 15 A

Storage Specs:

Nominal Storage Capacity: 51.3ft3, Interior Storage Capacity: 51.3ft3, Door Opening: 21.75″ W x 59.25″ H , Depth with Door fully extended: 85.9″ D, Shelves Included: 6

Refrigeration Data:

Nominal Compres. of 5200 BTU/hr at 3/4 HP, Heat Rejection: 2360 BTU/hr

Operating Limits:

Ambient Temp Range: 45 – 100°F, Voltage Range: 104 – 126V, Control Setpoint Range: 36 – 50°F, , Refrigerant: R-404A
